Name: HCS02.1E-W0028-A-03-NNNN
Brand: Bosch Rexroth Indramat
Price: 458 USD
Availability: InStock
Rating: 4.5 (37 reviews)

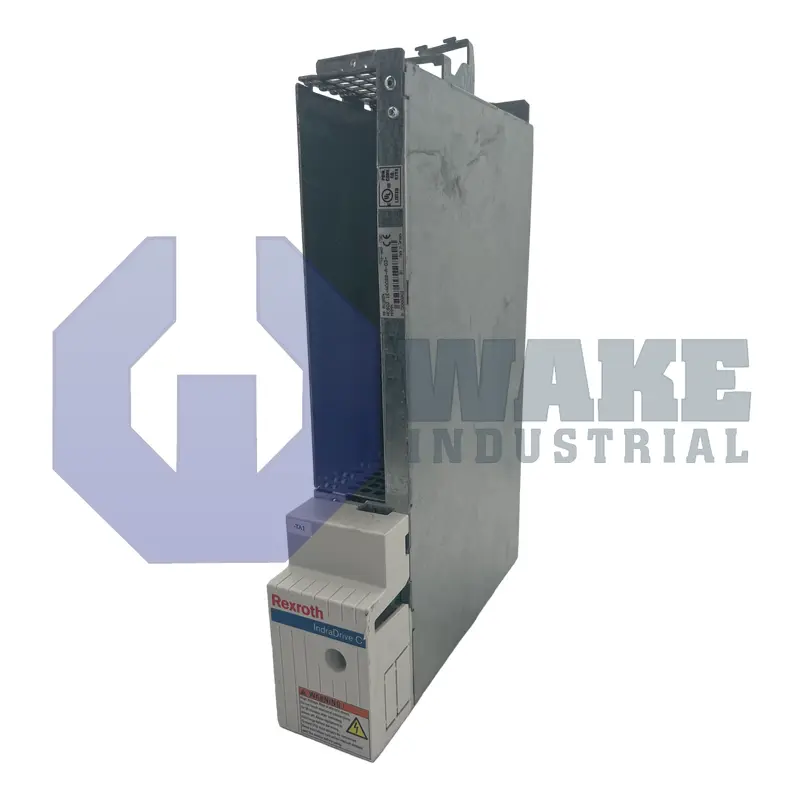

Bosch Rexroth Indramat HCS02.1E-W0028-A-03-NNNN Main (Front Left) image

Wake Industrial LLC is not an authorized distributor of this product.

Rated 4.5 (37 total ratings)

MPN: R911298374

No Tariffs On US Orders

Rated 4.5 (37 total ratings)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Preparing your secure checkout page...

The Bosch Rexroth Indramat HCS02.1E-W0028-A-03-NNNN is a drive controller in the HCS IndraDrive Controllers series. It features a peak current of 28 Amps and supports a power range from 1.5 to 11 kW. The unit uses internal air cooling with an integrated blower and has an IP20 rating.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Request a Replacement Request a Repair Quote Both

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The HCS02.1E-W0028-A-03-NNNN is a drive controller manufactured by Bosch Rexroth Indramat within the HCS IndraDrive Controllers series. It regulates three-phase motors in automated cells, coordinating torque, speed, and position with feedback from the connected motor and encoder system. By combining power electronics and control logic in a single chassis, it simplifies cabinet layouts and supports modular machine designs used in material handling, packaging, and general-purpose motion tasks. This arrangement allows one compact unit to serve as both the power stage and the motion control interface for a machine axis.

The controller employs internal air cooling through an integrated blower, so it can remove heat from the power section without relying on an external fan assembly. Its mains input accepts 3 × AC 200–500 V with a ±10% tolerance, allowing operation on a wide range of plant voltages without a separate transformer. A device peak output of 28 A peak current supplies short-term acceleration energy to synchronous or induction motors during rapid indexing, speed changes, and other transient load conditions. The unit uses design version 1 and has an enclosure rating of IP20 for protected installation inside an electrical cabinet.

Within the HCS02 line, the controller supports applications across a continuous mechanical power range of 1.5–11 kW, which suits small and mid-range axes in coordinated automation systems. The integrated power section supports an infeeding / fed supply arrangement, so regenerative energy from decelerating axes can be returned to the DC bus or dissipated through external resistors when required by the installation.

Specs
FAQ
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Communication Interface
Not specified

Continuous Current
11.3 A

Continuous Input Mains Current
13 A

Continuous Supply Current
0.6 A

Cooling Method
Air, internal (through integrated blower)

Dc Bus Capacity
270 µF

Dc Bus Continuous Power
5.1 kW

Depth
252 mm

Design Version
1

Device Peak Current
28 A

External Control Voltage
24 V DC

Height
352 mm

IP Rating
IP20

Line Series
HCS02

Mains Voltage
3 x AC 200...500 V ±10%

Maximum Braking Energy
5 kWs

Maximum Braking Power
10 kW

Permanent Braking Power
0.15 kW

Power Consumption
14 W

Power Range
1.5 to 11 kW

Power Supply Unit
Infeeding / Feeded

Product Type
HCS Drive Controller

Weight
3.8 kg

Width
65 mm

Frequently Asked Questions about HCS02.1E-W0028-A-03-NNNN:

Q: What is the peak current rating for the HCS02.1E-W0028-A-03-NNNN controller?

A: The peak current supported by the HCS02.1E-W0028-A-03-NNNN drive controller is 28 A.

Q: How is the HCS02.1E-W0028-A-03-NNNN IndraDrive controller cooled?

A: This model uses an internal cooling method with an integrated blower to manage temperature.

Q: What mains voltage range is supported by the HCS02.1E-W0028-A-03-NNNN controller?

A: The HCS02.1E-W0028-A-03-NNNN is designed for use with 3-phase AC mains voltage from 200 to 500 V ±10%.

Q: What IP protection rating does the HCS02.1E-W0028-A-03-NNNN controller provide?

A: This drive controller has an IP20 rating, offering basic protection against solid objects.

Q: What is the power range for the HCS02.1E-W0028-A-03-NNNN controller?

A: The power output range for this model is between 1.5 and 11 kW.

HCS021EW0028A03NNNN
HCS02 1E W0028 A 03 NNNN
hcs02.1e-w0028-a-03-nnnn

Fault / code	What it means	First corrective action(s)
F218 – Heatsink over-temperature	Internal heatsink has exceeded the shutdown limit.	Lower continuous load, clean or replace the axial blower, keep cabinet ≤ 45 °C.
F219 – Motor over-temperature	Stator thermistor (or KTY/NTC) in the connected servo has tripped.	Check mechanical load, verify motor-fan airflow, allow cool-down, check torque limits.
F220 – Bleeder overload	Regenerated energy overheated the internal brake resistor.	Soften decel/stop ramps, add an external resistor or upgrade to a regenerative (R-type) supply.
F226 – DC-bus undervoltage	Link voltage dropped below the minimum while the drive was enabled.	Find and correct mains sag, blown fuse or loose terminal; disable drive before removing mains power.
F228 – Excessive deviation	Following-error beyond parameter S-0-0159.	Look for axis jams/slip, reduce acceleration, retune position loop gains.
F229 – Encoder-1 failure (quadrant error)	Motor-encoder signals corrupt or missing.	Reseat feedback plug X4, inspect shield & +5 V, replace encoder or interface if required.
F230 – Encoder-1 signal frequency too high	Motor is spinning faster than the interface bandwidth.	Check gear ratio/command velocities; fit higher-speed encoder if operation is intentional.
F207 – Switch to un-initialised operating mode	PLC requested a mode whose parameter is still “0”.	Enter a valid mode in S-0-0032 … 35 or load a known-good parameter set, then reset the drive.
F236 – Position-feedback difference	Dual encoders disagree beyond monitoring window.	Check secondary encoder wiring/mounting, realign encoders, repeat commutation.
F381 – Mains failure (with HVR supply)	At least one mains phase is missing.	Replace blown fuses, tighten terminals, verify all three phases before restart.

Model	Peak / continuous current	Power range	Mains voltage	Cooling	Typical fit
HCS02.1E-W0028-A-03-NNNN	28 A peak (≈ 11 kW)	up to 11 kW	3 × AC 200–500 V	Internal blower	Single-axis cells needing ≤ 11 kW
HCS02.1E-W0012-A-03-NNNN	12 A peak (≈ 4 kW)	1.5 – 5 kW	3 × AC 200–500 V	Internal blower	Small pick-and-place or indexing axes
HCS02.1E-W0054-A-03-NNNN	54 A peak (≈ 22 kW)	up to 22 kW	3 × AC 200–500 V	Internal blower	Medium-power packaging / woodworking lines
HCS02.1E-W0070-A-03-NNNN	70 A peak (≈ 30 kW)	up to 30 kW	3 × AC 200–500 V	Internal blower	High-inertia servo axes, large robots
HCS03.1E-W0100-A-05-NNNN	100 A peak (≈ 45 kW)	15 – 75 kW	3 × AC 400–500 V	Forced-air	Mid-range machines needing higher overloads
HCS03.1E-W0150-A-05-NNNN	150 A peak (≈ 75 kW)	20 – 90 kW	3 × AC 400–500 V	Forced-air	Heavy presses, test stands, extruders

ordering codes

HCS02.1E-W0028-S-03-NNNN

HCS02.1E-W0028

HCS02.1E-W0012-A-03-NNNV

HCS02.1E-W0012

HCS02.1E-W0054

HCS02.1E-W0054-A-03-NNNN

HCS02.1E-W0054-A-03-NNNN-AA

HCS02.1E-W0070-A-03-NNNN

HCS02.1E-W0070-A-03-NNNV

HCS02.1E-W0070-A-03-LNNN

Code	Diagnostic Meaning
F207	Switching to un-initialised operating mode
F217	Blower not connected (≥ 100 A devices)
F218	Amplifier over-temperature shutdown
F219	Motor over-temperature shutdown
F220	Braking-resistor overload shutdown
F226	Undervoltage in power section
F228	Excessive deviation (following-error)
F229	Encoder 1 failure – quadrant error
F230	Max. signal frequency of encoder 1 exceeded
F236	Excessive position-feedback difference

Internal Product Review

‘‘The HCS02.1E-W0028-A-03-NNNN is an HCS drive controller designed for efficient motion applications across a 1.5 to 11 kW power range. Internal blower cooling and IP20 protection make this unit a strong choice for dependable cabinet-mounted performance.’’
