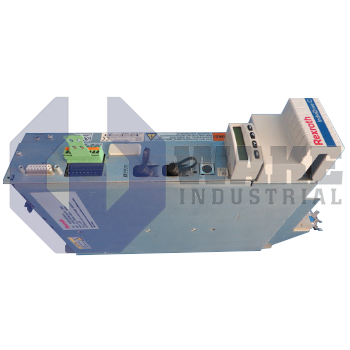

HCS02.1E-W0012 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat HCS02.1E-W0012 is a drive controller from the HCS IndraDrive Controllers series. It features an internal air cooling method with a peak device current of 12 Amps. The unit operates in a power range from 1.5 to 11 kW and is designed for use with infeeding and feded power supply units.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HCS02.1E-W0012 is an electronic drive unit produced by Bosch Rexroth Indramat and assigned to the HCS IndraDrive Controllers series. It regulates three-phase servo and induction motors in automated machinery by processing torque and speed commands from upper-level PLCs while protecting the connected motor and supply. The unit forms the interface between the mains supply and the motor by converting incoming three-phase AC into a regulated DC link and then into inverter output for controlled motion. By closing the control loop at the drive level, it helps the machine maintain stable motion during starting, stopping, and speed changes under varying load. It is suited for packaging, handling, and other factory automation tasks that require repeatable motor response.
Within the HCS02 line, the unit is released as version 1. Its continuous operating range is 1.5 to 11 kW, which allows the same platform to serve auxiliary axes as well as medium-duty process drives. The controller limits short-term current demand to 12 A, which keeps brief load peaks within the intended operating range of the power section. Energy enters the DC link through a DC bus infeeding arrangement, so the module can draw power from or return power to a shared bus according to system conditions. This supports multi-axis layouts that use a common DC link for coordinated operation. The shared-bus concept also supports energy exchange between accelerating and decelerating axes in the same machine section.
Thermal stability is supported by internal air cooling routed across the heat sink through an integrated blower. Because no external ductwork is required, cabinet airflow remains straightforward and the cooling path stays contained inside the drive assembly. The HCS Drive Controller can maintain rated operation during long production runs and repeated load changes without abrupt thermal limitation. This arrangement reduces the need for separate cabinet cooling hardware and keeps the thermal path easy to follow during system layout. Predictable airflow also helps when the unit is installed in compact control cabinets with limited free space around adjacent components.
Frequently Asked Questions about HCS02.1E-W0012:
Q: What is the device peak current for the HCS02.1E-W0012 drive controller?
A: The HCS02.1E-W0012 has a peak current rating of 12 A.
Q: What power range is supported by the HCS02.1E-W0012 IndraDrive Controller?
A: This drive controller covers a power range from 1.5 to 11 kW.
Q: What cooling method does the HCS02.1E-W0012 utilize?
A: Cooling is achieved by internal air circulation using an integrated blower.
Q: What kind of power supply unit does the HCS02.1E-W0012 feature?
A: The power supply unit on this model is designed for infeeding or being fed configurations.
Q: What design version is the HCS02.1E-W0012 drive controller?
A: The HCS02.1E-W0012 is a Design Version 1 model.
