Product Description:

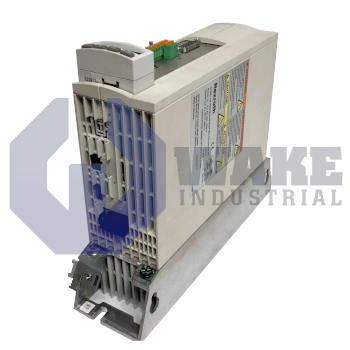

The HCS02.1E-W0012-A-03-LNNN is a drive controller manufactured by Bosch Rexroth Indramat within the HCS IndraDrive Controllers series. It serves as the logic and power stage between a plant PLC and connected servo or induction motors. By converting motion commands into controlled current and voltage, the unit supports axis positioning, speed regulation, and torque control in automated machinery. This arrangement lets one controller handle both dynamic motion changes and steady running conditions within a single platform. The control section closes the drive loop internally so the motor can respond to changing commands with stable motion behavior in packaging lines, material-handling systems, and metal-cutting equipment.

It has a peak current rating of 12 A, which supports short acceleration periods without overloading the output stage. The controller accepts a mains supply of 3-phase 200–500 V AC ±10%. Within that input range, it supports a continuous mechanical power range of 1.5–11 kW for compatible motor combinations. The housing has an IP20 enclosure for cabinet installation, and thermal management uses internal air cooling through an integrated blower that moves cabinet air across the heat sink. This layout suits protected electrical panels rather than direct mounting in exposed machine areas.

The power section supports an infeeding / fed topology, so one module can supply the DC bus while other connected units are powered from the same link. In multi-axis layouts, this arrangement allows regenerated energy from one axis to remain available to other axes on the shared bus. The unit is Design Version 1. It is part of the HCS02 line, which keeps mounting dimensions consistent with other second-generation IndraDrive controllers. That layout is useful where several controlled axes share one supply section inside the same cabinet.
