Bosch Rexroth Indramat

2AD Series
2AD motors, designed and manufactured by Rexroth Indramat, are AC motors used in machine tools, printing, packaging and reshaping machines. The motor comes in two variations: B05 for flange mounting and B35 for flange and foot mounting. 2AD motors have a broad range of speeds starting at 1500 min-1 to a maximum speed of 9000 min-1. These motors work up to 3,280 feet above sea level and can survive temperatures between 0° to +45°C.  The average sound pressure level, mass, and holding torque of the motor various depending on the motor frame size. The motor consists of an output shaft, a blower, power connection, motor feedback connection, and a holding brake. The motor feedback regulates the motor’s speed and rotor position through measurements the drive.

ADF Main Spindle Motor Series
The ADF Main Spindle Motors can be used as main spindle drives as well as servo drives in many applications such as machine tools. ADF Motors have also been used in printing and textile machines. When used with drive controllers, these motors have a broad speed range, and a broad field weakening range of 1:6. The motor feedback of a ADF Spindle Motor will let the drive know what position the rotor is in, which means that the feedback regulates the speed and rotor position on the motor. The design of the ADF Motors is to be mounted by a flange, and as they operate with the induction principle and bearings that have a lifetime lubrication, these motors are maintenance free!

Auxiliary Bleeder Series
The BZM Auxiliary Bleeder Module Series is manufactured by Rexroth Indramat Bosch. These bleeders are used to absorb the regenerative energy that comes from the application that a BZM is used for. If the energy that is coming out of the unit that the bleeder is hooked up to exceeds the max of the BZM, then there are different things that can be done, like having up to six DKC Drive controllers and one BZM connected using a DC bus circuit. Closely related to the BZM is that CZM Auxiliary Capacitance Module. The CZM series is used to absorb that rotary energy and help to release it or store it away for future use within a DKC Drive.

BTA05 Series
The BTA05 is a keypad, designed and manufactured by Rexroth Indramat that closely matches the appearance and dimensions of the BTV05 operator panel. This keypad has outside dimensions of 318(w) x 112(h) x 67.5(d) mm and a weight 0.74kg. The front surface panel is made of varnished aluminum that is covered with a chemical resistant material and has a protection rating of IP65. The BTA05 keypad has six possible switch locations, but comes installed with five. The five standard switches include unit off, unit on, auto/local mode, start, and e-stop.

BTA08 Series
The BTA08 is a keypad designed and manufactured by Bosch Rexroth Indramat that has a similar appearance and mounting dimensions that are designed to match BTA20.3 operator panels and BTV20.3 visualization terminals. The keypad has outside dimensions of 407x110x4 mm (WxHxD) and weighs 0.8 kg. It has aluminum front panel that is varnished and covered with a chemical resistant polyester material. The BTA08 also has a protection rating of IP65. The BAT08 keypad has eight installation locations which can be fitted with standard elements. The unit is delivered without any elements equipped by default. The user can add whatever elements he/she wants to the keypad and has to install the electric wiring.

BTA10 Series
The BTA10 is machine control panel that is a variant of the BTA20 control panel. Designed and manufactured by Rexroth Indramat, the BTA10 is a single module that was produced separately for the BTA20. There are multiple modules available that can be configured according to application requirements. Requiring little space for installation, this module has an emergency stop button, keyswitch, and a plug for a BTC06 control unit. The base module of the BTA10 panel is a printed circuit board containing interface drivers and all required connectors in which any module can be plugged in. The BTA10’s front panel is made of varnished aluminum and covered with a chemical resistant film. The unit also has a protection rating of IP65 and weighs 1.2 kg.

BTA15 Series
The BTA15 is a machine control panel designed and manufactured by Rexroth Indramat to be used with BTV05 and BTV06 control panels. Application uses for this panel include lathes, milling machines, and machining centers. The base module of this keypad has a maximum of eight standard Telemecanique ZB2-B switching elements. Each element contains one indicator lamp and two contacts. The panel can be ordered as needed according to the user’s requirements. Features include reduced wiring, a 30-pin socket, configurable modules, an INTERBUS connection, and interface converter. The front panel is made of varnished aluminum and coated with a polyester foil that is chemically resistant. BTA15’s also have a protection rating of IP65 and weight of 2.2 kg.

BTA16 Series
The BTA16 is a machine control board designed and manufactured by Rexroth Indramat. These boards are designed for high performance of AC control applications where the immunity to high noise and high di/dt are required. The maximum operational ambient temperature of the control board is between +5oC to +45oC, the operational air pressure is 860 to 1060 hPa, 1500 m, and the maximum heat dissipation is 10 W. The INTERBUS module is a digital device with inputs and outputs and contains the entire active electronics. The front panel is made of varnished aluminum with a polyester foil that is chemically resistant with a protection rating of IP65.

BTA20 Series
The BTA20 is machine control panel that that was designed to be used in conjunction with the Rexroth Indramat BTV20. The base module of this keypad has a maximum of eight standard switching elements of the Telemecanique ZB2-B. All BTA20 panels can be equipped and ordered as needed the projects specifications. These panels have minimal wiring, three 10 pin sockets, configurable modules, an INTERBUS connection, and an interface converter. The built-in INTERBUS adapter contains the entire electronics on a single printed circuit board and is equipped with both RS232 and RS422 interfaces. The BTA20 front panel is made of aluminum and covered with a chemical resistant material. Because of the materials used, it has a protection rating of IP65.

BTC06 Series
The BTC06 is a portable control panel designed and manufactured by Rexroth Indramat. This manual control unit is used for control tasks with single or multiple axes. Typical applications for the BTC06 include machine tools, packaging, and handling installations. The control unit’s dimensions are 315x180x57 mm with a weight of 1.3kg. The BTC06 is made of a polycarbonate enclosure, has a 240x128 pixel LCD display, an impact-resistant enclosure, and 48 keys with LEDs. Fitted with a series 68000 microcontroller, the BTC06 controller also has 1 MB of flash memory, and 256 KB SRAM. The controller also has an emergency shut-off button and both RS232C and a RS422A/RS485 interfaces to enable communication with other devices.

BTM03 Series
The BTM03 is a machine operator panel designed and manufactured by Rexroth Indramat and is part of the third line of Indramat’s BTM panels. The panel is highly configurable and has six slots for various modules that can house a blind plate, an emergency-stop module, a quick-stop module, a spindle override module, a writeable keyboard module, hand wheel module, and a feed override module. The master board, found in module slots two through 4, comes with 16 inputs and 16 outputs. The operator panel is powder coated for increased durability and increased protection, receiving an IP65 rating. The unit weighs around 3.5 kg.

BTM04 Series
The BTM04 is a machine operator panel designed and manufactured by Bosch Rexroth Indramat and is part of fourth line of Indramat’s BTM machine operator panels. This panel is customizable through its four module slots that can house a blind plate, an emergency-stop module, a quick-stop module, a spindle override module, a writeable keyboard module, hand wheel module, or a feed override module. The master board comes with 16 input and output slots that can be found in module slots 2 through 4. The operator panel is powder coated, has a protection rating of IP65, and weighs around 3.2 kg.

BTM13 Series
The BTM13 is a machine operator panel manufactured by Rexroth Indramat. Part of 13 line of Indramat’s BTM machine operator panels, it is highly customizable to meet end user’s needs. There are six module slots that can house a blind plate, an emergency-stop module, a quick-stop module, a spindle override module, a writeable keyboard module, a hand wheel module, and a feed override module. The optional master board has 16 input and 16 outputs, and is found in module slots two through four. BTM operator panels are powder coated and have an outstanding protection rating of IP65. These units weigh around 4 kg.

BTM15 Series
BTM15 operator panels are fully configurable to whatever need the end user desires. They have a total of 5 module slots which can be configured to hold 6 different modules. Some of these modules include a hand wheel control knob, an emergency stop push button, a keypad, and an emergency return button. Communication to the control is run through Remote InterBus-S. InterBus-S can use both Local Bus and Remote Bus to cover the varying distances of communication. The Remote Bus has a max segment length of 258 segments and the Local Bus can handle a maximum of 8 different devices.

BTM16 Series
BTM16 operator terminals are among Rexroth Indramat’s best products for users to control their automation and CNC systems. BTM16’s are commonly used with BTM15’s and various BTA series. BTM16’s have a 14 byte input and output storage assignment for core images. The total amount of bytes in an image is completely dependent upon the type of device being used. These units work by assigned addresses to BT Bus. A BTM15 unit sends an addressed signal to the input terminal of a BTM16, which groups all input and outputs. These are legacy parts made by Bosch Rexroth Indramat and trusted globally by thousands of end users.

BTV04 Series
The BTV04 is a tiny control panel designed and manufactured by Bosch Rexroth Indramat. This device is used to operate and control machinery through a graphical user interface. The control panel is 203x143x45 mm in size and weighs 1.7kg. It consists of an aluminum front panel, a 128x64 pixel LCD display, an impact-resistant enclosure and 38 keys. Of the 38 keys, 16 are machine control keys with LEDs and 7 that can be programmed by end users for specific needs. The BTV04 has powerful hardware consisting of a series 68000 microcontroller, 1 MB of flash memory, 512 KB ram, and two non-isolated serial interfaces. It is fitted with 10x24 V inputs and 11x24 V outputs. Furthermore, it is equipped with RS485 and a RS232 interfaces to enable communication between other Indramat products. To setup the control panel for the first time, software for the unit has to be loaded onto the BTV04 using a PC and a connection cable. The software will then guide you through the setting and customization procedures.

BTV05 Series
The BTV05 miniature control panel, designed and manufactured by Rexroth Indramat, is used to operate and control PLC-oriented machinery through a graphical interface. This control panel’s dimensions are 318x163x52 mm with a weight of 0.74 kg, mainly from its aluminum front panel. The panel’s LCD display is a higher resolution than the BTV04 series at 256x64 pixels and is enclosed in an impact-resistant IP65 rated enclosure. There is also a simple keyboard with seven LED keys for machine control that can be labeled accordingly. This control panel is fitted with 10x24 V inputs and 11x24 V outputs and equipped with RS422/485 and RS232 interfaces to enable communication with other Indramat products. The setup process is done via software that comes with the unit and loaded onto the BTV05 using a PC and a connection cable. Once loaded, the software will allow for customization.

BTV06 Series
The BTV06 is another miniature control panel designed and manufactured by Bosch Rexroth Indramat. BTV control panels are used for machine handling and provide a graphical interface for ease of use. The control panel has dimensions of 318x200x53 mm and weighs 1.7kg. The front panel is made from a varnished aluminum polyester foil which is chemically resistant. The black and white LCD display is 240x128 pixels with full graphical capabilities encased in an impact-resistant enclosure. There are 39 keys, seven of which can be programmed individually by the operator to their specific needs. The BTV06 has a series 68000 microcontroller, 1 MB of flash memory, 512 KB ram, and two non-isolated serial interfaces. It is fitted with 10x24 V inputs and 10x24 V outputs in addition to COM1 & COM2 interfaces. Furthermore, it features an RS485/422 interface to enable the communication with other Indramat products.

BTV15 Series
The BTV15 is a PC based user and visualization terminal designed by Rexroth Indramat. This type of terminal is used for application specific use with various equipment and configurations. Some areas of use for a BTV15 include machines like lathes and mills. This terminal uses the Windows NT operating system and is equipped with a CPU slot on its board in the PISA form factor. The BTV15 has physical dimensions measuring in at 294x194x80 mm with a weight of 4 kg. The unit has a 4mm thick aluminum front panel which is resistant to chemicals, a 640x380 pixel 8.2” color display, an impact-resistant enclosure, and a PC operating keyboard with 8 machine control keys. A standard BTV15 contains 5x86 266 MHz CPU with 2 MB graphic memory, 64 or 128 MB work memory, and a minimum of 3 GB hard disk.

BTV20 Series
The BTV20 is a PC-based machine operator panel designed and manufactured by Bosch Rexroth Indramat. The BTV20 has dimensions of 372x335x209 mm and weighs 10.5 kg. It consists of a 4mm aluminum front panel, 640x480 pixel LCD display, impact-resistant enclosure, and 16 machine control keys. The BTV20 has a Pentium processor with a minimum of 200 MHz, 4 MB video memory, 64 MB of memory, and a hard disk of 1.2 GB. It is fitted with the following card slots: 3xPCI, 1xPCI/ISA, and 4/ISA; and has the following interfaces: 1 x RS 232, COM1, 1 x RS232/RS485 COM2, LPT1 Centronics printer interface, VGA connection, and ethernet interface.

BTV30 Series
The BTV30, by Rexroth Indramat, is a machine control terminal which can be integrated with specific controllers to increase functionality. BTV30 units are very powerful and contain all the control elements of a complete industry computer. The BTV30 has dimensions of 372x335x200 mm and weighs 10.5 kg. It consists of a PC/ABS front panel, 640x480 pixel 10.4” TFT color display, impact-resistant enclosure, and a full ASCII keyboard with eight machine control keys. The BTV30 has a 200 MHz Pentium processor with 2 MB screen memory, 64 MB of main memory, a 1.2 GB hard disk and is fitted with various interfaces and slots. This unit is suitable for surface or underfloor mounting installation.

CCD Motion Controller Series
The CCD Motion Controller Series is manufactured by Rexroth, Indramat, Bosch and is compact and ready to use in robotics, textile and handling machine. This motion controller uses a CLC motion control card which allows multi-axis coordinated and non-coordinated motion control. This card also allows for at least four independent tasks being accomplished simultaneously. This addition increases production significantly. There is one form of this controller which is the CCD01.1 series. This series has four terminals into which a CLC or a DEA may be plugged into. The firmware in this series is contained in a software module and contains the same functions of a motion controller.

CDB Series
The CDB series of control units manufactured by Bosch Rexroth Indramat is composed of double axis drives. One of these drives has the ability to regulate two digital control axis. CDB drives have a variety of safety functions, such as safe motion mode or safe torque mode, ensuring the user can operate these without any complications. These units have many options of communication such as Sercos II, Sercos III, ProfiBUS, or Ethernet connection. CDB drives can be used with many different encoder systems. All parameters can be stored on a Multi Media Card(MMC) located in a plug-in module slot on the drive.

CFL Module Series
The CFL Module Series is manufactured by Rexroth, Indramat. This module needs a battery inserted and that battery will automatically activate when the module is first commissioned and then buffers the data of the storage module for several years. The control software in the CFL Module monitors the battery and will send a warning if the battery decreases. The LED display on the CFL indicates whether the module short-circuited or overloaded, if there is supply voltage available or if the supply voltage of the control is missing. The firmwares that the CFL Module Series uses are SRAM, DeviceNet Master, Profibus DP Master, SERCOS III, Fast I/O, and Cross Communication.

CLC Series
The Rexroth Indramat CLC Multi-Axis Coordinated Motion Control is one piece of a broad motion control system. CLC cards use the SERCOS fiber-optic communication system and have various firmware types. CLC’s provide multi-axis coordinated and non-coordinated motion control, making them great for various industrial applications. The three available versions of the CLC card are the CLC-V, CLC-P and CLC-D. When the cards integrated multitasking environment is combined with a graphical interface, such as Windows, a simplified point and click management operation is achieved, providing ease of use and extreme flexibility for the system operator.

CLM Series
This Rexroth/Indramat/Bosch CNC controller is equipped with modern reliability and efficiency measures. This allows for using CLM controllers without the need for maintenance. These AC servo drives are favored among automated thermo-forming equipment, printing and packing systems, woodworking processes, and robotic automation settings. These drives are capable of controlling systems with a high level of roll-feed capacity and greater feedback over acceleration, position, and velocity.  Added programmable logic controllers are unnecessary because of new features added to this series of Rexroth drives. These drives have a smaller compact design and easily programmable interface features, such as language and drive parameters, upon setup.

CML Control Hardware Series
The CML Control Drive Series is in DIN rail format and is part of the Motion Control System Series by Rexroth, Indramat, Bosch. This control drive has an easy function extension due to the fact that it can have many different function modules for communication, technology and safety that give you more options for integration. This control drive also uses the CFL Communication Module for communication purposes. Each CML controller has a very powerful CPU that can run up to 64 axes that are synchronized and coordinated for easy use and it can fulfill all its functions in a cost-efficient and integrated way!

CS Compact System Series
The CS Compact System Series is manufactured by Rexroth, Indramat, Bosch. This series can be found in two different versions. One version is for operation of an ErgoSpin hand-held nutrunner, and the other is for the operation of a tightening spindle. With a clear system structure and display units, and an easy, but flexible parameterization, the CS Compact System gives you intuitive operation from the controller to the tool. The display and connections on a CS Compact System are placed in a user-friendly way and are easy to use; and with the fast and secure commissioning of this system, which increases flexibility when trying to operate a different task, reduces the owner’s total cost significantly.

CSB Series
The CSB series of control sections offer a wide variety master communication options such as Analog interface, CANopen/DeviceNet interface, Analog/digital for OPEN LOOP operation, PROFIBUS interface, Parallel interface, SERCOS III interface, SERCOS interface. These controllers have fixed or configurable configurations and 2 to 3 option modifications. They can be either single axis controllers or double axis controllers. They have digital and analog inputs/outputs and a 24VDC input voltage.  These control sections are commonly put into HMS drives.If you would like to purchase a CSB control section or would like more information pertaining to this series or another series, contact via email, phone, or fax. This information can be found above or you can request a quote by clicking the green FAST QUOTE button.

CSH Advanced Control System
CSH Advanced Control System

DDC Series
The Rexroth Indramat DDC series consist of fully digital AC drives that are brushless, three-phase, and microprocessor controlled. DDC AC drives are dynamic and offer precision servo control options. These drives are used to monitor, control, parameterize and diagnose Indramat motors digitally through measurements of the rotors position. Highly customizable, a fully equipped DDC unit includes a DLC single-axis positioning module, software module, and optional auxiliary plug-in module. These cards add additional interfaces and options that further enhance the drives capability. At its core, the DDC acts as a DC bus converter and bleeder resistor. When mounting the device, the motor feedback cable and other optional plug-ins should be placed in a position that does not prevent the flow of the cooling air from entering or exiting the motor.

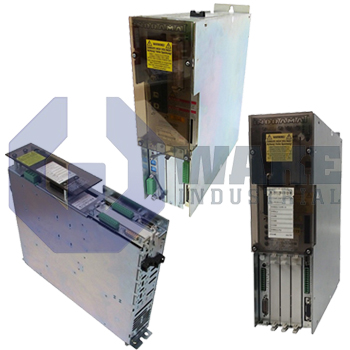

DDS Series
The DDS Drive Series manufactured by Rexroth/Indramat are modular in design. The modular concept makes it possible to flexibly combine AC servo and main drives to create one compact drive package which uses one supply unit. In conjunction with a variety of electric automation motors, a basic DDS unit has the ability to solve multiple automation controlling desires if a specific option interface is installed onto the drive. The firmware fixes the functions of the drive. The DDS02.1 and DDS03.1 drives have a variety of options which can be explained through the part number itself. For example, they can have either external cooling, internal air cooling, or liquid cooling, a variety of power ratings starting at a base 15amp drive and then extending to 25,30,50,100,150 and ending with a 200amp drive, either a digital servo or resolver feedback for their motor feedback,  or an analog interface which is indicated by an A in the part number, an Interbus-S interface, which is indicated by C, a Single axis position control interface, indicated by an L, or a SERCOS interface, indicated by an S.DDS drives have ports which allows users to place custimzed communication modules or auxialry modules into the drive. The U1 port,found on the far left of the drive, is for command communication modules. The U2, U3, and U4 for DDS02.1 drives are for auxillary moules. The DDS03.1 drive has the communication port and only one U2 auxiliary port. The software module is inserted at the top of the drive here at the U5 slot. The firmware module is separate from the main unit itself. Firmware is continuously being updated, meaning the firmware version may increase indicated by a higher number on the firmware module itself.

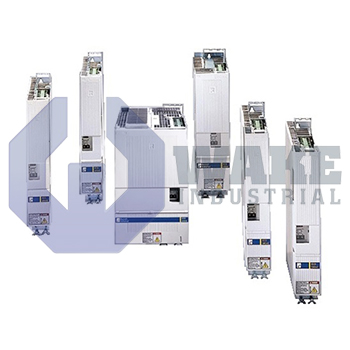

DKC Series
The DKC Series of drives manufactured by Indramat / Rexroth provide unrivaled reliability and are a cost effective solution to single and multiple axis automation control. DKC drives can store up to 32 different positions through the I/O option card and can be programmed in combination with DriveTop software and the correct firmware encoder. All DKC drives are considered to be a ECODrive01 or ECODrive03. ECODrive technology allows for the most favorable price to functionality ratio of AC drive performance on the market and is complimented by easy installation, use, and longevity.DKC Drives come in a variety of orientations which are dependant upon the demand of the manufacturing or automation environment. Ultimatley, DKC Drives can be broken down into a select few sizes based on voltage and amps. The voltage of the drive is dependent on necessary power needed by the autoamtion environment. For more informatin regarding the voltage level and specifity of the drive you need, contact us here at Wake Industrial domestically at 1-888-551-3082, internationally at 1-919-443-0207, or by email at sales@wakeindustrial.com. Here at WakeIndustrial, we supply our customers with the best depth of information making your buying decision easier.

DKR Series
DKR drives are controllers specified for use with ADF and 2AD AC spindle motors, LAF and LSF linear oriented, and 1MB spindle frameless motors. DKR drives are capable of putting out power ranges from 10kW to 93kW for the output shaft of the specific motor attached to the drive. Because of the wide variety of motors these drives are capable of controlling, power configurations are different and specific to each individual drive. Features of DKR controllers include consistent power output combined with a varying motor speed range, heatsink/ blower ready capacities, and advanced integral setting configurations which allow users to have very high control of their automation line. DKR02 and 03 models come equipped with an integral break. Later models, such as the DKR04, come with an external brake.

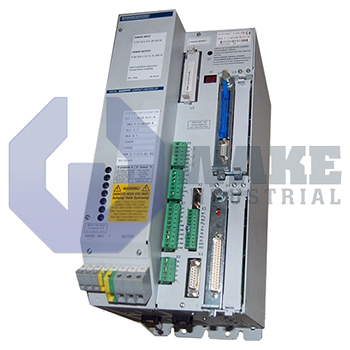

DKS AC Servo Drive Series
The DKS AC Servo Drive Units are designed to be used with the MDD Digital AC Servo Motor which would then create a complete drive system. The complete DKS servo drive is a basic unit which is adapted to different applications by inserting various cards into slots U1, U2, U3, U4, and U5. This drive is made to be installed in a control cabinet or in closed housing in accordance with the IP 10 protection class and per DIN 40 050. The DKS Servo Drive can use three different types of interface cards: I/O interface, Incremental Position interface, and High-Resolution Position interface. These cards are generally called auxiliary plug-in cards.

DM Servo Drive Series
The DM Servo Drive Series is made by Rexroth, Bosch, Indramat, and is designed to be installed into a switch cabinet that must at least be up to IP 54 Protection Standards. These drives are three-phase modules that operate motors including but not limited to the SF and SR Servo Motors, or the asynchronous motors type DU. The DM Servo Drive Series is part of the Servodyn D Series. These drives are reliable, compact and get installed vertically with their connection ports facing out. The DM Servo Drives work best if they are placed in a row, and they are not stacked inside the switch cabinet.

DMA Module Series
The DMA Drive Series by Bosch Rexroth Indramat consists of three-phase drive modules and is a part of the Servodyn-D Series that includes servo motors, asynchronous motors, and other three-phase modules. They are designed to be installed into a switch cabinet that must at least be up to IP 54 Protection Standards. These drives hold the capabilities to operate motors including but not limited to the SF and SR Servo Motors, or the asynchronous motors type DU. DMA Drives work best if they are placed in a row, and they are not stacked inside the switch cabinet. These drives are reliable, compact and get installed vertically with their connection ports facing out.

The DMD Servo Drive Series is manufactured by Rexroth Indramat Bosch. These drives are designed to be used alongside servo motors from the same AC series. The DMD Servo Drive Series is meant to be used with the MMD Servo Motor Series. These DMD Drives do not have an encoder built in them, but one can be connected to them using the SUP-E01-DMD accessory set. Each DMD Drive has a 6-digit LED display plus a changeover switch for the selection display and the execution display. Each drive in the DMD Series is made for both single and triple phase connections.

EFC Frequency Converter Series
The EFC Frequency Converter, made by Rexroth, Indramat, Bosch, is a compact, cost and energy efficient converter for operation in the power range of 0.4kW to 4kW. This converter can be used in many different ways. Including, but not limited to: AC/HVAC technology, food and beverage industry, and pumps and fans. The Bus Systems for these converters are Modbus or PROFIBUS. These converters are not hard to install and have an integrated brake chopper and operating panel for quick and simple commissioning. As a frequency converter the EFC series is easy to handle, is economical and has an easy to see LED display which tells the user the frequency, output voltage, output current and more!

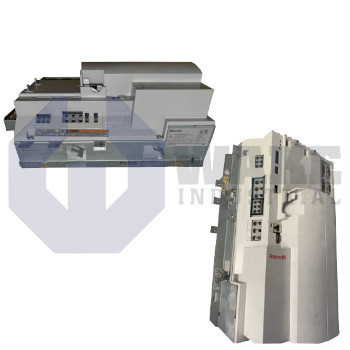

HCQ Micro Control Series
The HCQ Drive Controller Series is manufactured by Rexroth Indramat Bosch. These drive controllers are a multi axis converter with a forced ventilation type of cooling and an IP20 degree of protection. There are two slots in these controllers that are for optional extensions that can be purchased separately. The HCQ Drive Controllers each have an integrated brake chopper that is used for the operation of an external braking resistor. The interfaces for these drive controllers, are there to help operate external operator panels such as HMI panels. The programming in the HCQ Drive Controllers can be changed in CompactFlash format, depending on the application that the drive controller is being used for.

HCS Series
The HCS01 Compact Converters are part of the Rexroth IndraDrive Cs series and are used in the operation of Rexroth IndraDyn motors and others. These compact converters can be used in printing machines, food and packaging industries, and machine tools. The HCS01 Compact Converters come in three different sizes, the bigger it is, the higher the connection voltage and maximum current. One of the control panels that can be used with the HCS01 Compact Converter is the HAP01 Control Panel. This panel displays command or error diagnoses and pending warnings. The HCS01 Compact Converter uses FWA-INDRV firmware, which is used in all versions of this converter.

HCT Drive Series
The HCT Drive Controller Series is manufactured by Rexroth Indramat Bosch. These drive controllers are a multi axis converter with a forced ventilation type of cooling and an IP20 degree of protection. There are two slots in these controllers that are for optional extensions that can be purchased separately. The HCT Drive Controller each have an integrated brake chopper that is used for the operation of an external braking resistor. The interface for these drive controllers, are there to help operate external operator panels such as HMI panels. The programming in the HCT Drive Controllers can be changed in CompactFlash format, depending on the application that the drive controller is being used for.

HDD Series
The Rexroth Indramat HDD Drive Controller, part of the DIAX04 digital intelligent drive system, has a fixed configuration and is a rapid-response drive capable of running two of the following AC motors: MKD, MHD, 1MB or 2AD. The HDD Drive Controller Series uses the SERCOS interface for the communication module and has an additional connection for an incremental measuring system that has a sinusoidal output. These drives are well suited for Industrial tasks like machine tooling, printing, packaging and various robotic machines. The small footprint of the HDD Drive Controllers means they’re great for cabinets and its modular design means it can be removed in the field and replaced with a new one.

HDS Series
HDS drives, like many other Rexroth Indramat Bosch series, are a part of a wide variety of servo drives. These drives provide integrated designs over a large scale of motion controlling applications. They are characterized as flexible and strong products which are able to stay strong over a long period of time. HDS drives can be used alongside other motors such as MKD motors, 1MB motors, 2AD motors, and MHD motors. They are also compatible for applications such as machine handling, clothing or textile industries, robotics, and packaging environments. In situations demanding maintenance or repairs, all that is needed is to exchange the driver with a compatible replacement which demands absolutely no configuration thereby enabling the system to continue its function during repair of the main drive.

HLB Resistor Brake Unit Series
The HLB01 Brake Resistor Series is manufactured by Rexroth, Indramat, Bosch. These units can convert generated, kinetic energy into thermal energy which cannot be done by all brake resistors. They can also increase your drive system’s continuous regenerative power and increases the drive’s peak regenerative power as well. The HLB01 Brake Resistor Unit Series allows your drive to have the DC bus short circuit function and this series is a part of the Rexroth IndraDrive M and IndraDrive C series. As this series is a DC Bus Resistor, it can connect different drives to one another, and it can connect a drive with additional components that you may want connected to your drive.

HLC Capacity Module Drive Series
The HLC Capacity Module Drive is manufactured by Rexroth, Indramat, Bosch. These capacity module drives help to improve the energy balance in applications as well as in rapidly successive machining cycles. When one of these modules are hooked up to a DC bus, it then works as a power storage temporarily and also helps to reduces the loss of heat in the control cabinet because of the relief that it puts on the brake resistor. When a power failure occurs, the energy that has been stored lets a controlled return motion happen, which gives protection to the workpiece and the tools for gear cutting machines.

The HLR01 Brake Resistor is suitable for use with IndraDrive C Converter Series HC02 and HC03. These brake resistors are made with a compact design which enables them to be used for different types of power consumptions. A HLR Brake Resistor can be mounted directly above the converter that it is being used with, and because it can be mounted like that, it saves space and is very easy to install. While some resistors have a cooling option, these resistors get cooled off by the exhaust air that comes from the converter it is positioned above. If there is a job that requires long periods of high regenerative power, then the use of a reinforced brake resistor, such as the HLR01, is required.

HMD Series
HMD drives are a new generation product technology designed for motion control. They have features best suited for precision, accuracy, safety, and energy saving ability. The HMS drive is a double axis inverter which consists of power options permitting a large range of customization. These drives are used in variety of applications due to its modifiable configuration. They can also be powered and operated through a power supply unit or a converter. Energy exchange is achieved through a general DC bus power source. The power supplies make room for the essential DC bus voltage needed to run the inverters. An exceptional quality of these devices is the closed-loop DC bus.

HMS Series
HMS drives are servo drives which consist of multiple safety properties adhered to an open communication interface made to minimize programming for standard purposes. These drives are manufactured for single axis and double axis applications. Its build consists of a power section which is made up of a power supply unit, DC bus voltage, a 24voltage power supply, and a bus module which are combined with other devices for communication connected to the DC bus. HMS drives are applicable for use in machine tools, food handlers, packaging, printing systems, and the manufacturing of paper. These drives are not designed to be used in areas under high humidity and adverse temperature conditions.

HMV Series
The Rexroth Indramat HMV supply unit is a power supply part of Rexroth’s IndraDrive system. Like other supply modules, a single unit can operate multiple drives off a single mains connection, and communicates with drive controllers through a bus module. HMV modules were built to be used with IndraDrive M drive controllers and are highly flexible, available in both regenerative and non-regenerative configurations. These supply units are state of the art and some of the most powerful available. HMV supplies are available in 18, 30, 45, 65, 75 and 120 KW outputs.

HNF Series
The HNF01 Mains Filter Series is part of the Mains Filters Series that are manufactured by Bosch Rexroth. These filters are used for reducing radio interference and pollution of the mains and are tailored to the control units that they work with and can suppress leakage currents which are caused by cable capacitance. When using a Mains Filter it is important that it is used with an isolated transformer which is positioned between the mains and mains filter. The HNF01 Mains Filter Series is used to suppress interference of three-phase drive controllers with voltages up to 480V, and is also used for drive systems that have high numbers of axes and longer motor cables.

HNS Mains Filter Series
The HNS Mains Filter Series is designed to suppress leakage currents, which are caused by cable capacity, in accordance with EMC limits. The HNS Mains Filter Series also helps to reduce radio interference and pollution of the mains. Interference suppression can be taken care of by a HNS Mains Filter in drive controllers that have up to 480V, and in drive systems that have a maximum of 12 axes, with a 200m maximum, motor cable length. These filters are designed to fit the drive units that they were made for and are scalable by current, number of drives, and motor cable length.

HVE Series
The Rexroth Indramat HVE is a power supply unit part of the DIAX04 modular AC drive system family. HVE supply units use an unregulated DC bus voltage on which the usable unit power depends upon. These supply units come in four nominal voltages including 380 V, 400 V, 440 V, and 480 V. HVE modules allow for multiple drives and controls to be powered from a single connection. Instead of regenerating power, HVE units use a bleeder that absorbs energy. HVE supply modules are typically used for printing and packaging machines, machine tools, and food handling machines.

HVR Series
Similar to the Rexroth Indramat HVR supply unit, the Rexroth Indramat HVR power supply unit also belongs to the DIAX04 AC family and uses a regulated DC bus voltage. When running in generator mode, the HVR supply can regenerate excess energy back into the mains with minimal loss. Another benefit of HVR power supplies is their monitoring capabilities through communication with drive controllers. HVRs can be connected to mains voltages rated at 3x AC 380 V to 3x AC 480 V. Common applications for this power supply include handling, packaging, printing, and mounting machines.

HZF Series
The Indramat HZF combining filter is used at the mains connection of the power supply unit to suppress current leaks and provide interference suppression. There are three versions of the HZF filter, each with different requirements for the nominal current and losses. This combining filter was designed specifically to be used with HVR supply modules and must be mounted either to the left or right of the supply unit. The supply line to the HZF must be shielded to avoid possible interference for optimal performance. Additionally, the connection for the DC bus must always be connected to the HZF filter in order to operate properly.

IndraDrive MMC
The Bosch Rexroth Indramat MultiMediaCard, or MMC, is a storage medium that is inserted into a slot found on a corresponding device. MMCs are able to store firmware, parameters, and various files like programs and user related documents. Rexroth MMCs are an optional piece of equipment and can be either stationary or temporarily. Stationary MMCs are permanent, meaning they cannot be removed, and are used as programming modules. Temporary MMCs are removable and can be used for updating firmware or transferring, saving, and reestablishing parameters. Only Bosch Rexroth MMCs can be used for Bosh Rexroth products.

KCU Servo Drive Series
The KCU Electronic Control Systems are designed to be used only with a HMV01, HMV02, HCS02 or a HCS03. This control system series is part of the IndraDrive Mi generation of control systems. The KCU Electronic Control System is a compact drive connection that allows everything that needs to be plugged in to an IndraDrive Mi drive to be plugged in at a common coupling, and also supplies control voltage to the entire drive by the routing of a power supply from the DC bus of an IndraDrive power converter or a power supply unit. The KCU has an IP20 protection class, and it has protective integrated fuses on the DC bus connections.

KDA Series
The KDA Main Spindle Drive Series was manufactured by Indramat Rexroth to be used with INDRAMAT’s 2AD asynchronous motors and 1MB frameless spindle motors that have a continuous output at the shaft of 3 to 22kW. These drives are unique because of their high stiffness, positioning features and large speed range with continuous power. Due to these features this drive is well suited to be used as a spindle drive and for spindle positioning with C-axis operation. A microcomputer, located in the drive itself, performs the drive controls and monitors the drive as it works. With a speed control range of 0.0005 rpm the KDA Main Spindle Drive offers excellent and high-quality C-axis operation. The KDA Main Spindle Drive uses SERCOS interface for all it’s parts.

KDF Series
The Indramat KDF series are Variable Frequency Drives found in the control cabinets used for automation systems. They are commonly found in the middle of TDM and KVR drives. These drives have high performance features such as position control, unrestricted 4 speed operation, and speeds of up to 8,000RPMs. KDF drives use analog velocity command and a digital velocity loop microprocessor. These drives are made to be used in combination with Rexroth Bosch Indramat power supplies. These drives have a 16 parallel command bits and control motors of up to 25 horse power. KDF drives enable end users to control their automation line like never before.

KDS Servo Drive Series
The KDS Servo Controller Series is manufactured by Rexroth, Indramat, Bosch. These controllers were created to be used for applications that need high speed and position control. The KDS Series is very similar to the TDM Servo Control Series, and they have a heat sink which is attached to a heat exchanger and is located on the back of each unit. Because the KDS Servo Controllers have a heat exchanger with a heat sink, they give you a great advantage. With KDS Servo Controller equipped with a heat exchanger, you have no need to worry about your cool-running technology over-heating.

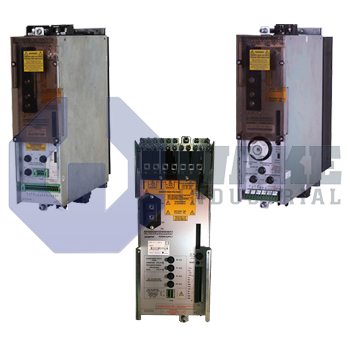

KDV Series
KDV drives are a part of a wide variety of Rexroth Indramat Bosch power supplies which are used for AC servo drives in correlating series. This drive series come with a full array of displays and warning sensors. KDV drive shave integrated bleeder overload warning sensors, earth connection LED indicators, an AUX volt display, and power ON/OFF LED indicators. The heatsink blower connectors and blower/control voltage fuses are easily accessible for quick maintenance and operational check-ups. The main purpose of these drives is to convert incoming AC voltage to DC Bus power which is directed to connecting servo drives. These drives have the ability to be used consistently with up to 24kW of energy.

KMS Electronic Drive Series
Due to the compactness of the drive, the KMS Electronic Drive Series is one of the ideal drives to be used where space is limited. These drives can be used with KSM Motors as well as third-party motors. The KMS Electronic Drive is mainly designed for giving you a seamless integration of the MSK, the MKE, or third-party motors which can be made into a chain of IndraDrive Mi drives. With the help of a hybrid cable, which connects the components, these drives get DC power and communication. The KMS Series is in the protection category IP65 and is UL certified.

KNK Control Series
The KNK Mains Filter Series is manufactured by Rexroth Indramat Bosch. These mains filters are part the cabinet free, distributed drive technology series. The KNK Mains Filters have an IP65 degree of protection and consist of an integrated mains choke and an integrated mains contactor. These filters use a thermal interface for the cooling method which is cold plate mounting.

KSM Servo Drive Series
The KSM Servo Drive Series is part of the Rexroth IndraDrive platform with the IndraDrive Mi. There are two types of KSM Servo Drives: KSM01 and KSM02. These drives consist of two main parts: the servo motor and the electronic system consisting of control and power sections. The firmware needed to operate this drive is MPB-04V20. These drives are equipped with an integrated encoder system. The master communication of the KSM01 series is SERCOS 2 and the KSM02 series is Multi-Ethernet. The KSM Series can connect with the KCU Electronic Control System which allows for communication between the KSM and the higher-level control unit.

KVR Power Drive Series
The KVR Power Drives are used to supply power to both servo and main drives that have a continuous power output maximum of 24kW; but the actual effective output depends solely on the smoothing and communication chokes and the auxiliary modules that are used with the power supply. The KVR Power Drives are equipped with a broad range of monitoring functions which include motor feedback, current and temperature of the drives, the load on the bleed resistor and the line voltage. There is also a LED display which provides the means of quick trouble shooting. The KVR Power Drives communicate with the other drives by way of a wire-ribbon cable.

LTE Servo Amplifier Series
The LTS350D and LTE Servo Amplifier Series is designed to be used with a SB356 System Box and a BT356 Card Rack made by Rexroth, Indramat, Bosch. Besides having a power supply module, either the SB or the BT can also have up to six tightening channels that are made up of a SE352 or a SE352M Control Unit. These control units are used to control up to two LTS350D Servo Amplifiers which in turn control then a tightening spindle. These Amplifiers can also control EC Motors, and have an XDN3 Interface that is there for the interrupting of the motor release.

LTU 350 Amplifier Series
The LTU 350 Servo Amplifier Series is designed to work with the SB356 System Box and the BT356 Card Rack. A SE352 or SE352M Control unit can control up to two LTU amplifiers for the controlling of ErgoSpin hand-held nutrunners. As long as this amplifier is used for it’s designed purpose then it will run maintenance free and the graphic LC display on each amplifier allows you to see any error codes or the display of the result values, such as torque, angle, gradient and time. Each Servo Amplifier’s intermediate circuit is under the protection of tow safety fuses. As long as those fuses do not blow, you can operate the amplifier, but if they blow then operation will be impossible.

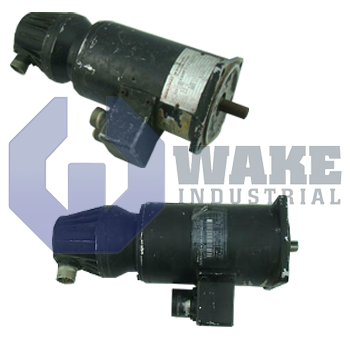

MAC Permanent Magnet Motor
The MAC Permanent Magnet Motors are manufactured by Rexroth, Indramat, Bosch and are especially created for high-accuracy servo applications in things like NC machine tools for wood-working and metal machines. They can also be used in production machines in the automotive industry. The MAC Motors are usually used for direction of torque, and control circuit conditioning. The current for the three stator windings are controlled by the position of the rotor, which then gives you a current flow in the stator that is most favorable in relation to the magnetic flux of the rotor. The motor current is controlled by a current controller which is linked to a directional current controller which can then control all three stator windings.

MAD Spindle Motor Series
The MAD Induction Motor Series is part of the IndraDyn A motor generation along with the MAF Induction Motor Series. These motors have high power density which enables them to be used in machine tools, printing presses and metal forming technology. The handling on these motors is maximum precision due to the two different encoder options and the outstanding true running quality. The MAD Induction motors can be equipped with a special bearing assembly for use in high-speed applications and applications that have an increased radial load. This motor series meets the standards for the IP 65 protection class which means it can be used in harsh industrial conditions and these motors are very easy to maintenance.

MAF Induction Motor Series
The MAF Induction Motor Series is part of the IndraDyn A motor generation along with the MAD Motor Series. Because there are different encoder and vibration severity grade options, you can use this motor with many different machines. These motors are designed for use in machine tools, printing and paper-processing machines, and metal-forming machines. These motors are cooled by using liquid-cooling and is an asynchronous motor. The MAF Motors are recommended for operations that require high torque in a confined space, and the integrated cooling system ensures the thermal isolation of both machine and motor which makes for high precision machining. These motors are low maintenance because of the quick couplers that are used with integrated outlet fuses.

MDD Series
MDD AC servo motors, designed and manufactured by Indramat, is a series of nine motors with varying torques and speeds for the most diverse applications. These permanent magnet servo motors are right at home for use in tool, printing, textile, robotics, packaging and other facilities where speed, power and accuracy are needed. A standout feature of MDD servo motors is that they come with a motor feedback option. Motor feedback evaluates the position and speed to detect rotor position. MDD motors are built to last and can operate in the harshest conditions thanks to their IP 65 protection rating.

MHD Series
Rexroth Indramat MHD motors are permanent magnet synchronous motors with electronic communication. MHD motors are available in a wide range of configurations that include specifications like motor feedback, cooling method, holding brake and output shaft. Considered a legacy motor, Indramat MHD motors are still found in service today in applications like printing, packaging, and textiles. These motors are fully sealed and maintenance free, containing lubricated bearings that last the lifetime of the motor. MHD motors come in 8 frame sizes: 041, 071, 090, 093, 095, 112, 115 and 131.

MHP Servo Motor Series
The MHP Servo Motor Series is made by Rexroth, Indramat, Bosch and is designed to be used with the POWERDRIVE drive package for cost-effective and quick responding drives. A MHP Motor is especially suited for use in machine tools, textile machines, printing machines, robots, and handling machines. The MHP motors have high operation reliability and operate maintenance-free thanks to the brushless design and the use of bearings that are lubricated for their entire lifespan. These motors can be used in many different environments due to the completely sealed motor design that meets IP 65 protective standards and have overload protection thanks to motor temperature monitoring. The MHP motors are easy to mount to any machine because of a flange that meets DIN 42948 requirements.

MKD Series
In connection with the digital intelligent drive controllers by Rexroth/Indramat, the digital MKD AC motors offer cost-effective automation solutions with an extensive functionality for the following fields of application such as machine tools, printing operations, handling and automation, packaging machines, and the food industry. MKD motors feature high operational reliability, a peak torque range which covers a wide speed range, and easy installation, use, and longevity when compared with other drives on the market.MKD motors have many special features. First, they have a varying frame size ranging from the 025 with a 54mm flange size to the large 112 MKD motor with a 192mm flange size. They have either an A, B, C, or D frame length 4 available winding codes. MKD motors feature either resolver feedback or resolver feedback with an integrated multiturn absolute encoder. MKD motors have an output shaft with either a plain or keway slotted shaft, come with or without an holding brake, and varying directions of power connection options.

MKE Servo Motor Series
The MKE Servo Motor Series fulfills the specifications according to ATEX and UL/CSA in one class, which means that these motors are permitted world-wide for use with only one machine design. When an MKE motor is connected to a drive device of Rexroth, it gives the drives high functionality so they can be used in hazardous areas. These motors run with a maintenance-free operation due to the brushless design and the use of bearings that are grease-lubricated for their entire life time. Each MKE Motor has a high overload capacity thanks to the favorable heat dissipation that comes from the stator windings which go to the outside wall of the motor housing.

MMD Servo Motor Series
The MMD Servo Motor Series is manufactured by Rexroth Indramat Bosch. This series was made to be used in cooperation with the DMD Servo Drive Series. Each different motor size is designed to be used with a different DMD drive. Please consult a manual for more information. These motors come in four different sizes: 012, 022, 042, and the 082. When connecting one of these motors to a drive, the accessory set SUP-E01-MMD is suggested to be used. When the motor is in the Torque Control Mode, you can command the motor’s output torque, and the velocity limit can also be set while in this mode.

MS2N Series
The MS2N Servo Motor Series is manufactured by Rexroth Indramat Bosch. This series of servo motor has been redesigned and now can reach rotational speeds up to 9,000 rpm! Because of the motor’s new design, it is very flexible and can adapt to each requirement of modern automation. These Ms2N motors are able to now have a record of the readings of each motor as well as the saturation and temperature data in the motor’s data memory. A MS2N Servo Motor has short coil heads and a compact build so that you have a noticeable improvement in energy efficiency which also leads to having less operating costs.

MSK Series
MSK Servo Motors, also known as IndraDyn S, are workhorse motors in Rexroth Indramat’s servo motor lineup. Designed to be used in conjunction with the IndraDrive series of drives, MSK motors offer a wide power range in minimal size increments. With vast amounts of torque and an encoder system that provides high levels of precision, MSK motors were meant to be used for a diverse range of applications. With an immense level of possible configurations, there’s sure to be a MSK motor to fit any possible need.

MSM Servo Motor Series
The Rexroth, Indramat, Bosch MSM Motor Series has a compact design and has accuracy due to the optical single-turn and multiturn absolute value encoders that they are equipped with. These motors are made to be used in machines and installations. These MSM motors come with a friction-locked shaft-hub connection without backlash, which runs with excellent smoothness. The motors in the MSM Motor Series have natural convection cooling modes and the connections of the MSM motors for their power and encoders are flexible connection cables that have bayonet locks. These motors are made with energy- and resource-optimized production processes which then allows for re-using and recycling the resulting waste.

MTS Servo Control Module Series
The MTS Servo Control Module Series is manufactured by Rexroth Indramat Bosch and are intended to be used in a BTV20/30 or a commercial industry PC. They have a hardware that show a performance increase by about 2 to 2.5, depending on the program and its design. A MTS Servo Module have several connection terminals which can be used for plugging in many different interfaces, or configurations. These modules can be used as stand-alone PLCs or they can be used in connection with a MTC, and the MTS would then be a “slave” PLC. The firmware installed in each module serves to tell the difference between master PLC and slave PLC.

NAM Power Supply Series
The NAM Power Supply is made by Rexroth, Indramat, Bosch. This series of power supplies works alongside the TVD Power Supply Series. The NAM series helps to suppress reactions on the TVD power supply, and is what is called a Suitable Auxiliary Unit for the TVD and other series as well. As a Power Supply Unit, the NAM series can be connected to an Input Inverter Choke HNL which can then be routed directly to copper surface of the choke. In the NAM there is an output at the terminals of AC 230V which is used for controlling external and pre-charging protective circuits.

PPC Series
Rexroth Indramat Bosch PPC controllers gave multiple axis and are considered to have both motion and logic control. These controllers Reco 02 as its form factor for Input and Output modules, programmable logic controllers, and motion control. These controllers, paired with Bosch Rexroth Indramat visual motion and logic products, are the perfect match for all Diax04 and EcoDrive03 drives. The common communication interface between the servo drive and the logic or motion controllers is SERCOS. PPC controller use GPP visual motion firmware that can support and provide all necessary multi-axis functions. A PPC drive can use an Inline I/O module and an Indramat Rexroth visual toolkit program.

PSI Frequency Inverter Series
The PSI 6000 Power Supply Inverter Series is manufactured by Rexroth Indramat Bosch. One thing that sets this series apart from other inverters and power supplies is that these units combine both a welding timer and a power supply unit into one. The weld timer is there to control the power supply and is also suitable for use with spot welding, project welding, repeat mode, and seam welding. The PSI6000 series gives you different options for the power supply units. The two options that are available are MF inverters and AC thyristor power supply units. The units also differ because they can have one of two cooling types. The units can either be cooled by use of water, or by blowing air. The differences can be determined by consulting the product name and the user’s manual.

PST6 Thyristor Power Unit Series
The PST Drive Controller is manufactured by Rexroth Indramat Bosch. These drives are designed so that they have both a welding timer and a power supply unit in one housing. The welding timer is there to help the drive controller to control the integrated power supply and makes these drive controllers ideal for use with spot welding, projection welding, repeat mode and seam welding. These PST Drive Controllers have a Thyristor power supply in them which helps to control the different welding transformers. The PST Drive Controllers from Rexroth have different interface options, what type of interface you get depends on what unit you purchase. There is a maximum number of programs that can be programed into these units.

RAC Spindle Drive Series
The RAC Spindle Drive Controller Series is one of the drive series that provides intelligent, digital control for INDRAMAT 2AD main spindle motors and 1MB frameless spindle motors that have a continuous output shaft power of 10 to 30 kW. When using the RAC Spindle Drive Controller Series you will have high-stiffness and constant power with a broad speed range for your drives. This drive series is equipped with a high-resolution feedback for the low speeds that the operation of the spindle in the capacity of a servo-axis. The RAC also acknowledges rotor position which means that even the lowest setting of speed can be controlled accurately.

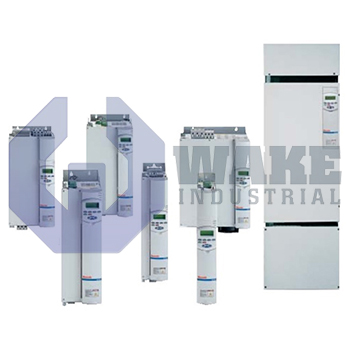

RD51 Drive Control Devices
The Rexroth RD51 Drive Control Devices are a universal three-phase drive system used for synchronous and induction type motors. A major benefit of an RD51 drive system is its modular hardware and software arrangement that allows it to be highly flexible and easily adaptable for specific applications. The system features varying AC drive converters, inverters, rectifiers, and supply modules that can be either purchased separately or as an entire system. This system is designed to be cooled from the rear with forced air or via liquid cooling. Making the system as simple as possible was a significant importance and offers the highest level of operator friendliness.

RECO Series
RECO modules enable a drive to effectively communicate with a controller. Specifically, this interaction takes place between the controller and the RECO module. New data block technology allows input and output information to be transferred at rapid rates instead of command and actual values. Data diagnostics are sent from the module to the controller after module function specifications are set. The parameters of RECO modules can be used configuring the drive, setting input and out characteristics, and accessing controller and drive functions. Every individual parameter is composed of 7 different data blocks which are read by the specific RECO module installed.

SD Magnet Motor Series
The SD-B Magnet Motor Series is manufactured by Rexroth, Inrdamat, Bosch. The SD-B motor series works with the SM-T Inverter Module series and the KM-T Capacitor Module Series which need at least one supply and one motor module to work. The SD-B Motors have a connection for power and have a terminal block which is on the top right. The connection between the inverters and the motor is through terminals U2, V2, and W2, which are found on the motor itself through plug-in connecters. The SD-B Motor Series is connected to a supply module through plug-in cables that work with the individual motor.

SF Servo Motor Series
The SF- Servo Motor Series were designed for the Servodyn-D Inverter Series and for use alongside the SR- Servo Motor Series. The SF- Servo Motors have a smooth, low-contamination aluminum frame that is compact for use with a d.c. link voltage of 670V and have plug-in connections for output and the encoder. The SF- motors are synchronous motors, use electronic communication, and have a single-turn absolute value encoder for position-control and speed. The electronic rating plate that each motor has is for automatic optimization of the Servodyn-D inverter to the motor. The SF- Servo Motor is cooled by natural convection but there is an optional forced-air cooling as well.

SM AC Inverter Series
The SM Servo Module Series is used to allow for optimum utilization of the brushless servo motors. This series is manufactured by Rexroth, Indramat, Bosch. Depending on the size of the supply module, up to ten SM modules can be plugged into a single supply module. These modules must be mounted in a switch cabinet that allows air to flow unimpeded by other components or parts of the cabinet. The SM Servo Modules, when in use with a rotor position recognition function as well as a brushless tacho, the modules then can regulate the torque and the speed of the motor itself.

SOT Series
SOT Panels, or Station Operator Terminals, allow users to manage activity of Rexroth drives via a monitor interface. These Operator terminals let users input functions and have important feedback information simultaneously shown. SOT Terminals have an operator keypad allowing users to quickly and easily change drive function. SOT units come with liquefied crystal displays and a bright LED backlight showing up to 16 40 character lines. The keypad itself has contact keys which ‘click’ when pressure is applied, letting the user know the key has been pushed correctly. SOT units have a total of 8 output terminals, making them a tool that can be used and connected to many machines.

TBM Series
The TBM drive series is composed of bleeder units which are added as an addition to an automation line. These drives have massive amount of DC Bus voltage running through the unit. TBM drives are installed in order to add continuous and regenerative power found in the automation line of drives. The maximum amount of regenerative power able to be used is 114kWs while the minimum is as little as 2.25kWs of power. TBM drives are found with other Rexroth Indramat Bosch drives such as TVM drives. These drives often share a direct connection with one another.

TCM Series
TCM link capacitors are used in conjunction with Bosch Rexroth Indramat power supplies. TCM drives are used to reduce or eliminate the noise created by the mains line. Noise is usually created in excess when circuit power exceeds 15kW. TCM drives are connected at different points along the mains line and are subjective to the layout of the wiring and the length of the mains line. These drives weigh approximately 6 to 7 kg. These link capacitors are commonly used with “K” series Indramat Rexroth power supplies such as KVR or KDV power supplies. They are a common piece found in automation control lines.

TDM Series
The TDM drive series is characterized by its use with MAC motors of varying size. The follow is a categorical representation of TDM Drives with their matching motor:  TDM1 drives are used for MAC71 to MAC160 motors, TDM2 drives are used with MAC63 to MAC93 motors, TDM3 drives are used for MAC63 to MAC112B motors, TDM4 drives are used with MAC21, MAC 25, and MAC41 motors, TDM6 drives are used in combination with MAC motors for low noise applications, and TDM7 drives have built in electronic feedback for their matching MAC motor. The drive itself features an X1 connection port for Bus connection, 2 Busbars labeled L+ and L-, the X2 connection for the programming personality module, and two rows of different plug in terminals for motor feedback connections.TDM drives are extremely reliable and efficient Servo Controllers making them a cost effective choice for your automation needs. If you need a TDM drive or would like to know more about this drive series contact us for pricing and shipping options.

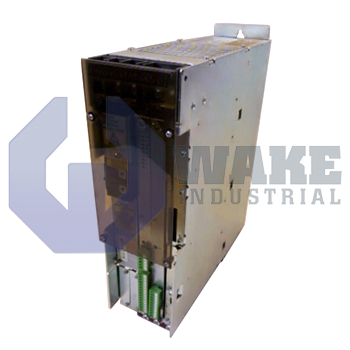

TFM Series
The TFM Variable Frequency Drive, by Rexroth Indramat, is a drive controller used to control AC motors by varying input frequency and voltage to control motor speed and torque.

TVD Series
The TVD Power Supply is a high-voltage link to drives with a regulated DC bus circuit to feed power to the drives. These power supplies can be operated without a transformer on power systems of 3 x AC 380. There are auxiliary units, including the NAM1.3 Series, which are there to help suppress reactions on the power system. The TVD Power Supplies are powerful and can have up to ten drive modules mounted on one of these supply units. The TVD1.3 comes with a DC Bus continuous power of 7.5kW and 15kW, and can be combined with an auxiliary bleeder module. A TVD Power Supply can be overloaded for a short period of time for the purpose of accelerating the feed and spindle drives.

TVM Series
The Rexroth Indramat TVM Power Supply is one of three components that make up Indramat’s AC drive system. TVM supply modules convert the three phase main AC power and provide DC power for six or more Indramat drives. Because of this, it is the recommended choice for powering servo drives. TVM modules are also capable of absorbing regenerated power from drives operating in generator mode through means of a bleeder resistor. With the ability to monitor entire drive systems, the TVM will automatically power off in case of an error.

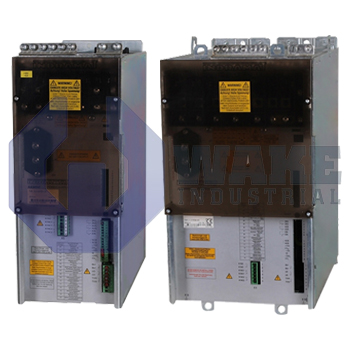

TVR Power Supply Series
Part of the Indramat Modular AC-Drive System, the TVR Power Supply Module provides regulated DC voltage to drives and also has regeneration capabilities. TVR modules support one or multiple drives through its DC bus and will regenerate power back on the mains when operating as a generator. The amount of power regenerated depends on the drive load and braking speed. TVR modules can be used with TDM, TDA, KDA, and DDS Indramat drives. Applications that have a high level of continuous regenerative power make this module a suitable choice.

VAM Operator Panel Series
The VAM Operator Panel Series is manufactured by Rexroth Indramat Bosch, and are designed to be used for selecting operation modes, as well as to manually operate machines. The VAM Operator Panel Series is made to work with CNC machines with a PROFIBUS connection. Since they are made to operate CNC machines, they have keys with LED displays, rotary switches for overriding the spindle and feed, emergency stop buttons, and more! Each design can be used with a different operator terminal such as the BTV 16 and the BTV 40, to name a few, and are adapted to the design of each one.

VAU Uninterruptible Power Supply Series
The VAU Uninterruptible Power Supply Series is manufactured by Rexroth, Indramat, Bosch for the purpose of giving continuous power for a maximum amount of 3 minutes in the event of a power supply voltage breakdown. Each one of these powerful power supplies come with a rechargeable battery that is integrated into the device, display and operating components, as well as terminals for voltage connections and serial interfaces that are located on the front panel of the power supply, an integrated burst and surge protection for the device that is connected to the power supply, and everything is concealed within an enclosed, metal housing.

VCH Operator Panel Series
The VCH Hand Control Device Series is manufactured by Rexroth Indramat Bosch. These hand control devices are portable operation and visualization devices. They are compatible with Windows CE electronics and uses Ethernet for its interface. The VCH Devices are designed to be used in rougher operating conditions, which is why they do not use floppy discs, but instead use FLASH and RAM databases. These hand control devices are suitable for use in operation and visualization of IndraLogic, Indramotion MLC and MTX, as well as operation of machines and systems, extended handling systems, and assembly lines. Because of the optional operation and control elements, the VCH Hand Control Drive Series can easily be adapted to individual cases of operation.

VCP Screen Panel Series
The VCP Screen Panel Series is manufactured by Rexroth Indramat Bosch. On each screen panel there is a Small Operator Terminal (SOT), which is a machine operating terminal that is used for initiating functions in the machine needed for the application. The VCP Screen Panel series has a compact design which makes it very suitable for many different applications and makes it so that every mounting position is able to be used. Depending on the panel, the SOT can have up to two serial interfaces or a fieldbus interface. These panels have Function Keys that can be used either to trigger a function or as menu control buttons.

VDP Screen Panel Series
The VDP Screen Panel Series is manufactured by Rexroth Indramat Bosch. These panels are passive operators with visualization terminals. When one of these screen panels is hooked up in a control cabinet it then makes a PC-based operator terminal. Some versions of the VDP Series come as a control cabinet PC, while others are for mounting on the outside of a control cabinet. Both types are able to be mounted out side a cabinet or on a bracket. All data is transferred from the VDP Screen Panel to the control cabinet PC via the CDI Interface, which is programmed into each VDP unit.

VEP Operator Panel Series
The VEP Operator Panel Series is manufactured by Rexroth Indramat Bosch. The VEP Operator Panels are PC-based which means that you have to option of controlling these panels from your computer instead of actually touching the screen. These panels are all equipped with a touch-screen on the front plate and all the internal voltages are generated by using a DC/DC converter. All the necessary settings, of things like the network settings, are programmed using the “Rexroth CE Settings” configuration. When starting these panels up for the first time the touch calibration and the “Rexroth CE Setting” start working automatically. Plus, these panels are so awesome that they require minimal maintenance!

VMA Series
The VMA Power Module Series has two power slots that can be plugged into two different power supplies. These power modules are easy to replace which can be done without turning off the entire system. The VM Power Module Series is mostly used for the supply and control of the current for Magtrol Hysteresis Brakes and Clutches but is also recommended for the controlling of many brakes and clutches. The output current of the VM series is adjustable which means it can be set form 0 to 100%. This VM series is compact, easy to mount and can be equipped with up to two power modules so you can be sure your system is always working.

VPB Box PC Unit Series
The VPB Box PC Unit Series is manufactured by Rexroth Indramat Bosch. These units are control-cabinet PCs that can be formed into a PC-based terminal when used with either a VDP16.3, or a VDP40.3 operator panel. When being used as an operator terminal these units can also fulfill control functions depending on the application and configuration of the terminal. These VPB Box PC units can be mounted inside a control cabinet either vertically or horizontally. Many different interfaces can be hooked up to a VPB Box PC unit which then helps to give it a higher performance rating, and make the VPB unit the ideal solution for all HMI-based issues.

VT-2000 Series
The Rexroth VT-2000 is a proportional amplifier card that controls single solenoid pressure control valves without electrical feedback. Features of the card include differential input, 0 to +9 V of additional command value input, an independently adjustable ramp generator which is there to control pressure increase and decrease, and a voltage stabilizer which gives constant voltage for consistant performance. The Vt-2000 has an amplifier model “S” which allows up and down to be turned off separately if that is desired. This card accepts a differential analog input of 28c and 30ac. The VT-2000 comes in both analog and euro-card format, and uses the VT 3002 card holders.

VT-3000 Series
The Rexroth VT-3000 analog amplifier is designed for the control of pilot operated proportional directional valves, model WRZ (up to component series 6), and direct operated proportional pressure valves (model DBEP6 and 3DREP6). VT-3000 cards have 4 command values that are adjustable by potentiometers that limit the maximum input signal. Additionally there are 4 associated LEDs on the front face plate that allow for a fast visual reference of the input relays. A voltage stabilizer provides constant and consistent voltage for optimum performance. The built-in ramp generator controls acceleration and deceleration rates that can be adjusted to either 1 or 5 seconds. VT-3000 cards use PWM (pulse width modulation) output which provides a dither effect reducing hysteresis.

VT-HACD Series
The VT-HACD series of controllers are used for both open and closed looped applications and can control multiple control circuits. These controllers can control an entire process, make adjustments, and establish connections. The three components found in this series are the VT-HACD-DPQ-2X, VT-HACD-1-1X and VT-HACD-3-2X. VT-HACD digital controls have various functions, such as generating, linking, and normalizing signals or used as a controller card for control loops with a PIDT1 controller and optional state feedback. Configuration of these devices is done through user interfaces via serial connection to a PC, making the process very simple.

VT-HNC Series
The Rexroth VT-HNC series of digital axis controllers are programmable controllers designed for use in hydraulics. The HNC series can control 1 to 4 axes depending on the part series and meet requirements for closed-loop control of electromechanical and electrohydraulic drives. HNC series parts have been designed for use in extreme industrial settings with harsh conditions and have been built to withstand interference, vibration, shock, and various climates. Because this series is modular in design, faulty or non-working units may be removed and replaced with a known good unit.

VT-VSPA1-1 Series
The Rexroth VT-VSPA series are proportional amplifiers that control solenoid current to corresponding Rexroth proportional valves that do not have LVDT feedback. Amplifier cards that drive a single solenoid have multiple features and additional uses. Operators of VT-VSPA cards can configure settings such as analog input, ramp time, and change the setup for valve types. VT-VSPA amplifier cards are available in analog and eurocard formats, use voltage stabilization to provide a steady current of power and have an adjustable ramp generator and ramp times.

VT1600 Series
The Rexroth VT 1600 Servo Amplifier is an electronic card used to control servo valve models 4WS.EM, 2DS1EO AND 3DS2EH. This amplifier card is typically used for closed loop applications. A voltage stabilizer is used to provide clean and consistent power for stable performance. An integrated PID (proportional, integrator, derivative) control circuit allows for the card to be tuned for position control or constant velocity circuits. Three potentiometers found on the front plate of the card allow for quick adjustment of the PID values.
