Home Bosch Rexroth Indramat HCS IndraDrive Controllers HCS02.1E-W0070-A-03-NNNN

HCS02.1E-W0070-A-03-NNNN Bosch Rexroth Indramat

Name: HCS02.1E-W0070-A-03-NNNN
Brand: Bosch Rexroth Indramat
Price: 491 USD
Availability: InStock
Rating: 4.5 (58 reviews)

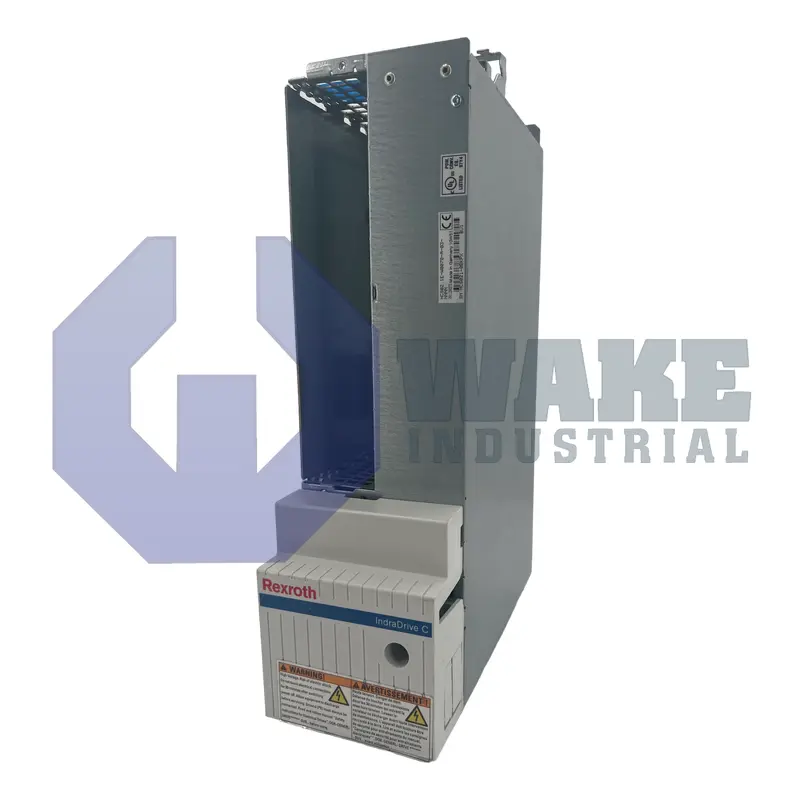

Bosch Rexroth Indramat HCS02.1E-W0070-A-03-NNNN Main (Front Left) image

Wake Industrial LLC is not an authorized distributor of this product.

Rated 4.5 (58 total ratings)

MPN: R911298372

No Tariffs On US Orders

Rated 4.5 (58 total ratings)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Preparing your secure checkout page...

The Bosch Rexroth Indramat HCS02.1E-W0070-A-03-NNNN is an HCS Drive Controller that is part of the HCS IndraDrive Controllers series. It offers a peak current of 70 Amps and operates within a power range of 1.5 to 11 kW. This unit features air cooling through an integrated blower and has an IP20 rating.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Request a Replacement Request a Repair Quote Both

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The HCS02.1E-W0070-A-03-NNNN belongs to the HCS IndraDrive Controllers series produced by Bosch Rexroth Indramat. It is an AC drive controller intended to controls compatible motors in a configured IndraDrive system. By monitoring motor feedback and modulating output, the unit coordinates motion sequences and maintains torque accuracy in conveyor, packaging, and handling equipment used across manufacturing cells.

This controller has an IP20 enclosure rating, so it provides basic finger-safe shielding and is intended for cabinet installation. It accepts a 3 × AC 200 to 500 V ±10% three-phase supply, allowing operation on a wide range of industrial mains. That input range supports use in facilities with different standard line voltages without requiring tap changes. During rapid acceleration, the inverter section can deliver a device peak current of 70 A. The power electronics support a continuous output range of 1.5 to 11 kW, which allows the same controller platform to serve different axis sizes. The communication interface is not specified in the available information, so the fieldbus option must be confirmed for the intended system.

Thermal management relies on internal air cooling provided by a built-in blower, so no external ducting is required. The unit uses design version 1 within the series. DC link energy is exchanged through an infeeding/feeding power supply topology, which supports shared bus arrangements where braking energy from one axis can be used by another axis. The controller is categorized under HCS02 within the product line. This layout is suitable for multi-axis systems that exchange energy across a common DC bus. Its parameter structure remains consistent with other IndraDrive components used in the same installation.

View Datasheet

Specs
FAQ
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Communication Interface
Not specified

Cooling Method
Air, internal (through integrated blower)

Design Version
1

Device Peak Current
70 A

IP Rating
IP20

Line Series
HCS02

Mains Voltage
3 x AC 200...500 V ±10%

Power Range
1.5 to 11 kW

Power Supply Unit
Infeeding / Feeded

Product Type
HCS Drive Controller

Frequently Asked Questions about HCS02.1E-W0070-A-03-NNNN:

Q: What is the peak current capability of the HCS02.1E-W0070-A-03-NNNN drive controller?

A: The HCS02.1E-W0070-A-03-NNNN supports a device peak current of 70 A.

Q: How is the HCS02.1E-W0070-A-03-NNNN drive controller cooled?

A: The cooling method is internal air cooling using an integrated blower.

Q: What mains voltage input does the HCS02.1E-W0070-A-03-NNNN support?

A: This drive controller operates with a mains voltage of 3 x AC 200 to 500 V with a tolerance of ±10%.

Q: What is the IP protection rating for the HCS02.1E-W0070-A-03-NNNN?

A: The HCS02.1E-W0070-A-03-NNNN has an IP20 rating, meaning limited protection against dust and no protection against water.

Q: What is the supported output power range of the HCS02.1E-W0070-A-03-NNNN?

A: This model covers a power range from 1.5 to 11 kW.

HCS021EW0070A03NNNN
HCS02 1E W0070 A 03 NNNN
hcs02.1e-w0070-a-03-nnnn

Fault / Error	What it Means	Corrective Action
Drive will not power up (no LEDs)	Control- or mains-power absent / undervoltage	Verify 3-phase mains input and stable 24 V control supply at X31; inspect fuses and wiring
F8025 – Overvoltage in power section	DC-bus voltage exceeded safe limit	Lengthen deceleration ramps, check / size braking resistor, confirm mains voltage
F8028 – Overcurrent in power section	Short-circuit or excessive motor current	Inspect motor- and brake-cables for shorts, test insulation, review current-loop parameters
F8064 – Interruption of motor phase	One motor phase open-circuit	Continuity-test each phase, reseat connectors, repair or replace cable / motor
F8022 – Encoder 1 signals incorrect	Feedback not recognised or noisy	Reseat encoder cable, verify shielding / grounding, match feedback type in parameters
F8070 – +24 V DC error	Auxiliary control supply lost or low	Measure 24 V rail, check PSU capacity and terminations, restore stable supply
F8057 – Device overload shutdown	Inverter heat-sink temperature or load exceeded	Check fan airflow, clean filters, keep ambient ≤ 45 °C, reduce continuous load
F4009 – Bus failure	Fieldbus communication with PLC lost	Check network cabling & termination, verify master status, reset drive after bus recovers
F6028 – Position limit value exceeded	Axis moved outside software travel limits	Clear fault, jog axis back within limits, correct position-limit parameters
F8120 – Invalid control-/firmware combo	Mismatch between firmware and hardware	Flash the correct firmware or install a matching control section

Part number	Series	Continuous current (A)	Peak current (A)	Typical motor power (kW)	Input voltage range (VAC)	Dimensions H×W×D (mm)	Cooling
HCS02.1E-W0070-A-03-NNNN	IndraDrive C	28	70.8	11	200–500	352 × 105 × 252	Internal air
HCS02.1E-W0054-A-03-NNNN	IndraDrive C	20.6	54	7.5	200–500	352 × 105 × 252	Internal air
HCS02.1E-W0028-A-03-NNNN	IndraDrive C	12	28.3	4	200–500	352 × 65 × 252	Internal air
HCS02.1E-W0012-A-03-NNNN	IndraDrive C	4.5	11.5	1.5	200–500	290 × 65 × 252	Internal air
HCS03.1E-W0070-A-05-NNNN	IndraDrive C (larger frame)	45	70	22	400–500	490 × 125 × 262	Internal air
HCS03.1E-W0100-A-05-NNNN	IndraDrive C (larger frame)	73	100	37	400–500	490 × 225 × 262	Internal air

Ordering code

HCS02.1E-W0070-A-03-NNNN

HCS02.1E-W0070-A-03-NNNN-AA

HCS02.1E-W0070-A-03-LNNN

HCS02.1E-W0070-A-03-LNNN-AA

HCS02.1E-W0070-A-03-NNNV

HCS02.1E-W0054-A-03-NNNN

HCS02.1E-W0054-A-03-LNNN

HCS02.1E-W0054-A-03-NNNV

HCS02.1E-W0028-A-03-NNNN

HCS02.1E-W0012-A-03-NNNN

Error Code	Meaning
F8025	Overvoltage in power section
F8028	Overcurrent in power section
F8064	Interruption of motor phase
F8070	+24 V DC error (control supply)
F8022	Encoder 1 signals incorrect
F8057	Device overload shutdown
F4009	Bus failure (fieldbus watchdog)
F6028	Position limit value exceeded
F7010	Safety-related limited increment exceeded
F8120	Invalid control section / firmware combination

Internal Product Review

‘‘The HCS02.1E-W0070-A-03-NNNN is an HCS drive controller with a 1.5 to 11 kW power range and 70 A peak current. Internal blower air cooling and IP20 protection make this unit well suited for controlled industrial cabinets. A well-balanced controller for precise and dependable drive performance.’’
