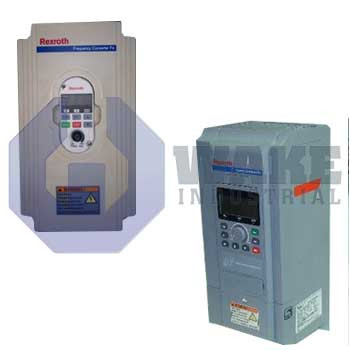

The Rexroth FEC Frequency Converters are general-purpose VFDs designed for U/f (V/f) operation in harsh industrial environments, positioned as an affordable drive solution across a broad output range from about 0.
75 kW up to 160 kW. They operate from three-phase 380–480 VAC mains (50/60 Hz) and provide an output voltage up to the mains level with an adjustable output frequency from 0 to 599 Hz for flexible motor speed control. The series includes an integrated brake chopper on smaller ratings and supports external braking resistors, while higher power setups can use external brake chopper solutions. Control and performance features include SVPWM-based magnetic-flux PWM modulation with adjustable switching frequency, freely definable V/f curves, linear or S-curve ramps, DC braking, an automatic energy-saving function that adapts the V/f curve to load, and load-dependent PWM frequency adjustment. For integration and robustness, FEC drives provide Modbus communication with an optional PROFIBUS interface, built-in PID control, multiple self-protection measures with status outputs/relay outputs, and are specified for typical cabinet installation (IP20) with −10 to +40 °C operation and humidity below 90% without condensation, plus defined overload capability by drive type.
FECG02.1-4K00-3P400-A-SP-MODB-01V01-S001
FECG02.1-2K20-3P400-A-SP-MODB-01V01-S001
FECG02.1-37K0-3P400-A-BN-MODB-01V01-S001
FECG02.1-30K0-3P400-A-BN-MODB-01V01-S001
FECG02.1-22K0-3P400-A-BN-MODB-01V01-S001
FECG02.1-18K5-3P400-A-BN-MODB-01V01-S001
FECG02.1-15K0-3P400-A-BN-MODB-01V01-S001
FECG02.1-11K0-3P400-A-BN-MODB-01V01-S001
FECG02.1-7K50-3P400-A-SP-MODB-01V01-S001
FECG02.1-5K50-3P400-A-SP-MODB-01V01-S001
FECP02.1-160K-3P400-A-BN-MODB-01V01
FECP02.1-132K-3P400-A-BN-MODB-01V01
FECG02.1-160K-3P400-A-BN-MODB-01V01
FECG02.1-132K-3P400-A-BN-MODB-01V01
FECG02.1-0K75-1P200-A-SP-MODB-01V01
FECC02.1T-R-STD-POTI-NNNN
FECC02.1T-B-STD-NNNN-NNNN
FECC02.1T-B-STD-POTI-NNNN
FECC02.1T-S-STD-POTI-NNNN
FECP02.1-110K-3P400-A-BN-MODB-01V01
FECP02.1-90K0-3P400-A-BN-MODB-01V01
FECP02.1-75K0-3P400-A-BN-MODB-01V01
FECP02.1-55K0-3P400-A-BN-MODB-01V01
FECP02.1-45K0-3P400-A-BN-MODB-01V01
FECP02.1-37K0-3P400-A-BN-MODB-01V01
FECP02.1-30K0-3P400-A-BN-MODB-01V01
FECP02.1-22K0-3P400-A-BN-MODB-01V01
FECP02.1-18K5-3P400-A-BN-MODB-01V01
FECP02.1-15K0-3P400-A-BN-MODB-01V01
FECP02.1-11K0-3P400-A-BN-MODB-01V01
FECP02.1-7K50-3P400-A-SP-MODB-01V01
FECP02.1-5K50-3P400-A-SP-MODB-01V01
FECG02.1-110K-3P400-A-BN-MODB-01V01
FECG02.1-90K0-3P400-A-BN-MODB-01V01
FECG02.1-75K0-3P400-A-BN-MODB-01V01
FECG02.1-55K0-3P400-A-BN-MODB-01V01
FECG02.1-45K0-3P400-A-BN-MODB-01V01
FECG02.1-37K0-3P400-A-BN-MODB-01V01
FECG02.1-30K0-3P400-A-BN-MODB-01V01
FECG02.1-22K0-3P400-A-BN-MODB-01V01
FECG02.1-18K5-3P400-A-BN-MODB-01V01
FECG02.1-15K0-3P400-A-BN-MODB-01V01
FECG02.1-11K0-3P400-A-BN-MODB-01V01
FECG02.1-7K50-3P400-A-SP-MODB-01V01
FECG02.1-5K50-3P400-A-SP-MODB-01V01
FECG02.1-4K00-3P400-A-SP-MODB-01V01
FECG02.1-2K20-3P400-A-SP-MODB-01V01
FECG02.1-1K50-3P400-A-SP-MODB-01V01
FECG02.1-0K75-3P400-A-SP-MODB-01V01
FECP01.2-110K-3P400-A-BN-MODB-01V01
FECP01.2-90K0-3P400-A-BN-MODB-01V01
FECP01.2-75K0-3P400-A-BN-MODB-01V01
FECP01.2-55K0-3P400-A-BN-MODB-01V01
FECP01.2-45K0-3P400-A-BN-MODB-01V01
FECP01.2-37K0-3P400-A-BN-MODB-01V01
FECP01.2-30K0-3P400-A-BN-MODB-01V01
FECP01.2-22K0-3P400-A-BN-MODB-01V01
FECP01.2-19K0-3P400-A-BN-MODB-01V01
FECP01.2-15K0-3P400-A-BN-MODB-01V01
FECP01.2-11K0-3P400-A-BN-MODB-01V01
FECP01.2-7K50-3P400-A-SP-MODB-01V01
FECP01.2-5K50-3P400-A-SP-MODB-01V01
FECG01.2-110K-3P400-A-BN-MODB-01V01
FECG01.2-90K0-3P400-A-BN-MODB-01V01
FECG01.2-75K0-3P400-A-BN-MODB-01V01
FECG01.2-55K0-3P400-A-BN-MODB-01V01
FECG01.2-45K0-3P400-A-BN-MODB-01V01
FECG01.2-37K0-3P400-A-BN-MODB-01V01
FECG01.2-30K0-3P400-A-BN-MODB-01V01
FECG01.2-22K0-3P400-A-BN-MODB-01V01
FECG01.2-19K0-3P400-A-BN-MODB-01V01
FECG01.2-15K0-3P400-A-BN-MODB-01V01
FECG01.2-11K0-3P400-A-BN-MODB-01V01
FECG01.2-7K50-3P400-A-SP-MODB-01V01
FECG01.2-5K50-3P400-A-SP-MODB-01V01
FECG01.2-4K00-3P400-A-SP-MODB-01V01
FECG01.2-2K20-3P400-A-SP-MODB-01V01
FECG01.2-1K50-3P400-A-SP-MODB-01V01
FECG01.2-0K75-3P400-A-SP-MODB-01V01
FECC01.2T-B-STD-NNNN-NNNN
FECC01.2T-B-STD-POTI-NNNN
FECC01.2T-R-STD-POTI-NNNN
FECC01.2T-S-STD-POTI-NNNN
FECC01.2T-S-STD-NNNN-NNNN
FECC01.1T-B-STD-NNNN-NNNN
FECC01.1T-B-STD-POTI-NNNN
FECC01.1T-R-STD-NNNN-NNNN
FECC01.1T-R-STD-POTI-NNNN
FECC01.1T-S-STD-NNNN-NNNN
FECC01.1T-S-STD-POTI-NNNN
FECC02.1T-B-STD-NNNN-S001
FECC02.1T-S-STD-POTI-S001
FECP01.1-110K-3P400-A-BN-NNNN-01V01
FECP01.1-110K-3P660-A-RN-NNNN-01V01
FECP01.1-11K0-3P400-A-BN-NNNN-01V01
FECP01.1-132K-3P400-A-BN-NNNN-01V01
FECP01.1-132K-3P660-A-RN-NNNN-01V01
FECP01.1-15K0-3P400-A-BN-NNNN-01V01
FECP01.1-160K-3P400-A-BN-NNNN-01V01
FECP01.1-160K-3P660-Z-RN-NNNN-01V01
FECP01.1-185K-3P400-A-BN-NNNN-01V01
FECP01.1-19K0-3P400-A-BN-NNNN-01V01
FECP01.1-200K-3P400-A-BN-NNNN-01V01
FECP01.1-220K-3P400-A-BN-NNNN-01V01
FECP01.1-220K-3P660-A-BN-NNNN-01V01
FECP01.1-22K0-3P400-A-BN-NNNN-01V01
FECP01.1-250K-3P400-A-BN-NNNN-01V01
FECP01.1-280K-3P400-A-BN-NNNN-01V01
FECP01.1-30K0-3P400-A-BN-NNNN-01V01
FECP01.1-315K-3P400-A-BN-NNNN-01V01
FECP01.1-315K-3P660-A-BN-NNNN-01V01
FECP01.1-37K0-3P400-A-BN-NNNN-01V01
FECP01.1-45K0-3P400-A-BN-NNNN-01V01
FECP01.1-55K0-3P400-A-BN-NNNN-01V01
FECP01.1-55K0-3P660-Z-RN-NNNN-01V01
FECP01.1-75K0-3P400-A-BN-NNNN-01V01
FECP01.1-75K0-3P660-A-RN-NNNN-01V01
FECP01.1-90K0-3P400-A-BN-NNNN-01V01
FECP01.1-90K0-3P660-A-RN-NNNN-01V01
FECP01.2-110K-3P400-A-BN-NNNN-01V01
FECP01.2-11K0-3P400-A-BN-NNNN-01V01
FECP01.2-15K0-3P400-A-BN-NNNN-01V01
FECP01.2-19K0-3P400-A-BN-NNNN-01V01
FECP01.2-22K0-3P400-A-BN-NNNN-01V01
FECP01.2-30K0-3P400-A-BN-NNNN-01V01
FECP01.2-37K0-3P400-A-BN-NNNN-01V01
FECP01.2-45K0-3P400-A-BN-NNNN-01V01
FECP01.2-55K0-3P400-A-BN-NNNN-01V01
FECP01.2-5K50-3P400-A-SP-NNNN-01V01
FECP01.2-75K0-3P400-A-BN-NNNN-01V01
FECP01.2-7K50-3P400-A-SP-NNNN-01V01
FECP01.2-90K0-3P400-A-BN-NNNN-01V01
FECG01.1-0K40-1P200-A-SP-NNNN-01V01
FECG01.1-0K40-3P200-A-SP-NNNN-01V01
FECG01.1-0K75-1P200-A-SP-NNNN-01V01
FECG01.1-0K75-3P200-A-SP-NNNN-01V01
FECG01.1-0K75-3P400-A-SP-NNNN-01V01
FECG01.1-110K-3P400-A-BN-NNNN-01V01
FECG01.1-11K0-3P400-A-BN-NNNN-01V01
FECG01.1-11K0-3P660-A-RN-NNNN-01V01
FECG01.1-132K-3P400-A-BN-NNNN-01V01
FECG01.1-15K0-3P400-A-BN-NNNN-01V01
FECG01.1-15K0-3P660-A-RN-NNNN-01V01
FECG01.1-160K-3P400-A-BN-NNNN-01V01
FECG01.1-185K-3P400-A-BN-NNNN-01V01
FECG01.1-19K0-3P400-A-BN-NNNN-01V01
FECG01.1-1K50-1P200-A-SP-NNNN-01V01
FECG01.1-1K50-3P200-A-SP-NNNN-01V01
FECG01.1-1K50-3P400-A-SP-NNNN-01V01
FECG01.1-200K-3P400-A-BN-NNNN-01V01
FECG01.1-200K-3P660-A-BN-NNNN-01V01
FECG01.1-220K-3P400-A-BN-NNNN-01V01
FECG01.1-22K0-3P400-A-BN-NNNN-01V01
FECG01.1-250K-3P400-A-BN-NNNN-01V01
FECG01.1-280K-3P400-A-BN-NNNN-01V01
FECG01.1-2K20-1P200-A-SP-NNNN-01V01
FECG01.1-2K20-3P200-A-SP-NNNN-01V01
FECG01.1-2K20-3P400-A-SP-NNNN-01V01
FECG01.1-30K0-3P400-A-BN-NNNN-01V01
FECG01.1-37K0-3P400-A-BN-NNNN-01V01
FECG01.1-3K70-3P400-A-SP-NNNN-01V01
FECG01.1-45K0-3P400-A-BN-NNNN-01V01
FECG01.1-4K00-3P400-A-SP-NNNN-01V01
FECG01.1-55K0-3P400-A-BN-NNNN-01V01
FECG01.1-5K50-3P400-A-SP-NNNN-01V01
FECG01.1-75K0-3P400-A-BN-NNNN-01V01
FECG01.1-7K50-3P400-A-SP-NNNN-01V01
FECG01.1-90K0-3P400-A-BN-NNNN-01V01
FECG01.1-90K0-3P660-A-RN-NNNN-01V01
FECG01.2-0K75-3P400-A-SN-NNNN-01V01
FECG01.2-0K75-3P400-A-SP-NNNN-01V01
FECG01.2-110K-3P400-A-BN-NNNN-01V01
FECG01.2-11K0-3P400-A-BN-NNNN-01V01
FECG01.2-15K0-3P400-A-BN-NNNN-01V01
FECG01.2-19K0-3P400-A-BN-NNNN-01V01
FECG01.2-1K50-1P200-A-SP-MODB-01V01
FECG01.2-1K50-1P200-A-SP-NNNN-01V01
FECG01.2-1K50-3P400-A-SN-NNNN-01V01
FECG01.2-1K50-3P400-A-SP-NNNN-01V01
FECG01.2-22K0-3P400-A-BN-NNNN-01V01
FECG01.2-2K20-3P400-A-SN-NNNN-01V01
FECG01.2-2K20-3P400-A-SP-NNNN-01V01
FECG01.2-30K0-3P400-A-BN-NNNN-01V01
FECG01.2-37K0-3P400-A-BN-NNNN-01V01
FECG01.2-3K70-3P400-A-SN-NNNN-01V01
FECG01.2-45K0-3P400-A-BN-NNNN-01V01
FECG01.2-4K00-3P400-A-SN-NNNN-01V01
FECG01.2-4K00-3P400-A-SP-NNNN-01V01
FECG01.2-5K50-3P400-A-SN-NNNN-01V01
FECG01.2-5K50-3P400-A-SP-NNNN-01V01
FECG01.2-75K0-3P400-A-BN-NNNN-01V01
FECG01.2-7K50-3P400-A-SN-NNNN-01V01
FECG01.2-7K50-3P400-A-SP-NNNN-01V01
FECG01.2-90K0-3P400-A-BN-NNNN-01V01
