Beckhoff

AL20xx Linear Motor Series
The AL20xx Linear Motor Series by Beckhoff is composed of 3-phase synchronous linear servo motors that include both a coil unit and a magnet plate. The AL20xx series includes seven different motors, all having the same width. All motors in this series can be operated using the same magnet plates. AL20xx motors operate with no backlash (providing stiff control), precise position, high repeatability, and very low thermal resistance. Connection and operation with AX5000 drives is easy with default valves and pre-assembled cables, and when combined with these drives AL20xx motors are suitable for operations where high acceleration is required over short distances.

AL24xx Linear Motor Series
The AL24xx series of three-phase synchronous Linear Servomotors consists of three different motors. These motors are suitable for tight space installation. They all have the same width of 51 mm and can be operated using the same magnet plates. The magnet plates are fully sealed and have an adequately level and robust surface. AL24xx linear motors are ideal for dynamic movements where high acceleration is required over short distances. Some features included in these motors are high speeds and accelerations, no mechanical wear, and protection from thermal overload through integrated temperature sensors. Coil units are fitted with a 3m cable and they can be connected easily to the connector box. The AL24xx series offers variety for high production quality and perfect implementation in Beckhoff drive technology.

AX51xx Drive Series
The AX51xx 1-channel servo drives are high-performance devices with integrated control technology that enables fast and dynamic positioning tasks. These drives are designed for rated currents up to 40 A. Their compact design allows for easy control cabinet installation. A wide variety of motors of different sizes and types can be connected to the drives. The AX51xx devices were created for use with EtherCAT, which enables short cycle times. The drives in this series feature a multi-feedback interface, diagnostic and parameter display, high-speed capture inputs, and AX-Bridge connection technology. A pluggable supply and connection module is able to simultaneously provide power supply, DC-Link and 24 V DC control and braking voltage. In this series a varied size range is available.

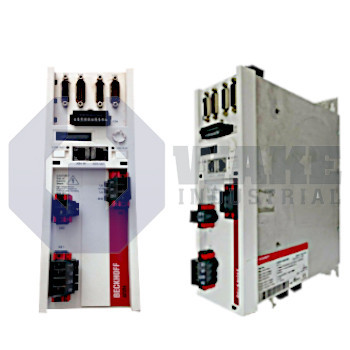

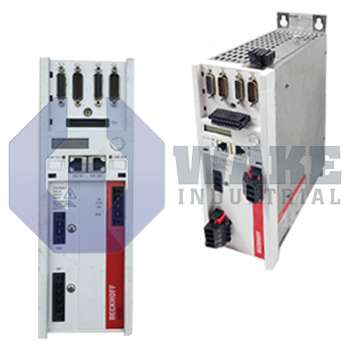

AX52xx Drive Series
The AX52xx 2-channel servo drives are high-performance devices with integrated control technology that enables fast and dynamic positioning tasks. These drives allow for the operation of two motors. Their compact design allows for easy control cabinet installation. A wide variety of motors of different sizes and types can be connected to the drives. The AX52xx devices were created for use with EtherCAT, which enables short cycle times. The drives in this series feature a multi-feedback interface, diagnostic and parameter display, high-speed capture inputs, and AX-Bridge connection technology. A pluggable supply and connection module is able to simultaneously provide power supply, DC-Link and 24 V DC control and braking voltage.

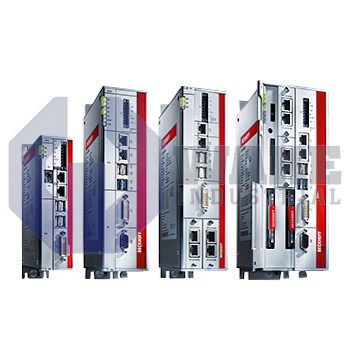

C69xx IPC Series
The C69xx Industrial PC Series by Beckhoff is designed for easy control cabinet installation. C69xx series PCs are equipped with 3 ½ inch motherboards and a 24 V DC power supply unit. There are four different types of PCs in this series that differ based on processor type (Intel Celeron or Atom) and data storage devices. When used in conjunction with Beckhoff control panels (with DVI and USB connection), the C69xx IPCs serve as part of a high-performance control platform for different machine construction and plant engineering applications. With their two independent Ethernet interfaces, C69xx PCs can serve as a compact central processing unit for an EtherCAT control system.

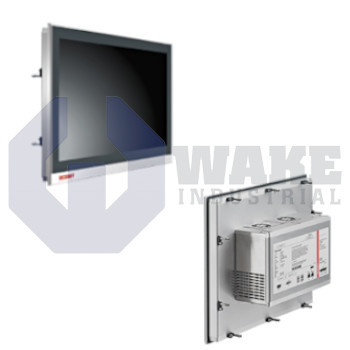

CP22xx-0010 Panel PC Series
Designed for control cabinet installation, Beckhoff’s CP22xx-0010 Panel PC Series is characterized by its modern features, reliable Industrial PC technology, and multi-touch display capabilities. Its advanced device design features aluminum housing with glass front, and easy accessibility to all components. CP22xx-0010 Panel PCs are equipped with highly integrated 3 ½ inch motherboards and Intel® Celeron® or Intel® Core™ i3/i5/i7 processors. The CP22xx-0010 Series offers a variety of display sizes, and serves as a high-performance option for construction and engineering applications.

CP22xx-0020 Panel PC Series
Designed for control cabinet installation, Beckhoff’s CP22xx-0020 Panel PC Series is characterized by its modern features, reliable Industrial PC technology, and multi-touch display capabilities. Its advanced device design features aluminum housing with glass front, and easy accessibility to all components. CP22xx-0010 Panel PCs are equipped with highly integrated 3 ½ inch motherboards and Intel® Celeron® or Intel® Core™ i3/i5/i7 processors. The CP22xx-0020 Series offers a variety of display sizes, and serves as a high-performance option for construction and engineering applications. These devices can be used with TwinCAT automation software under Windows 10 IoT Enterprise. With their two independent Ethernet interfaces, CP22xx-0020 devices can serve as a compact CPU for an EtherCAT control system.

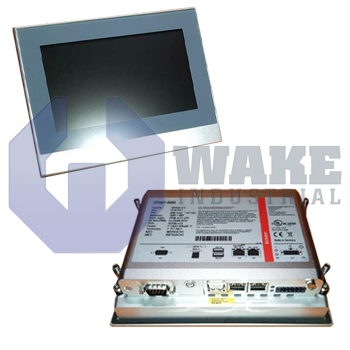

CP26xx Panel PC Series
Beckhoff’s CP26xx series of compact built-in Panel PCs features dual-touch capabilities in a modern, elegant, and advanced design. CP26xx PCs are designed to be installed in the front of control cabinets, and come in a variety of display sizes for every industrial application. The devices include integrated 3.5 inch motherboards which enable CP26xx PCs to be used alongside TwinCAT automation software under Windows Embedded Compact 7. The PCs are equipped with an ARM Cortex-A8 processor and a 24V power supply unit. CP26xx PCs come with independent Ethernet and EtherCAT interfaces which allow them to act as a compact central processing unit for an EtherCAT control system. Even at their basic configuration, these feature-laden PCs are high-performance devices for machine construction and plant engineering applications.

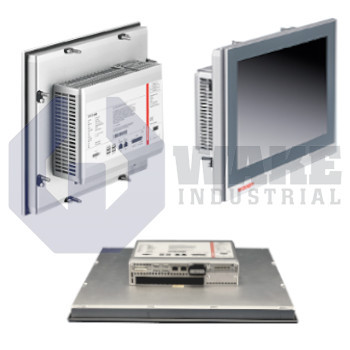

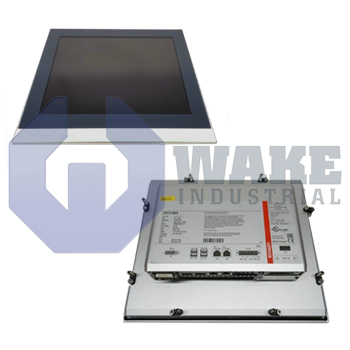

CP27xx-0000 Panel PC Series
Beckhoff’s CP27xx-0000 series of fanless Multi-touch built-in Panel PCs are characterized by modern operation and an advanced, protective design. The series offers a variety of display sizes for various applications. The PCs feature highly integrated 3.5 inch motherboards and Intel Celeron ULV 827E 1.4 GHz single core processor. They are supplied with a 24 V DC power supply unit and 2 GB DDR3 RAM storage. They can be used in conjunction with TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate, Windows Embedded Standard 7, among others. With its two independent Ethernet interfaces, these units can be used as a compact CPU for an EtherCAT control system. The CP27xx-0000 series Panel PCs serve as a high-performance platform for construction and engineering applications.

CP27xx-0010 Panel PC Series
Beckhoff’s CP27xx-0010 series of fanless Multi-touch built-in Panel PCs are characterized by modern operation and an advanced, protective design. The series offers a variety of display sizes for various applications. The PCs feature highly integrated 3.5 inch motherboards and Intel Atom E3815, 1.46 GHz single core processor. They are supplied with a 24 V DC power supply and 2 GB DDR3L RAM storage. They can be used in conjunction with TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate, Windows Embedded Standard 7, among others. With its two independent Ethernet interfaces, these units can be used as a compact CPU for an EtherCAT control system. The CP27xx-0010 series Panel PCs serve as a high-performance platform for construction and engineering applications.

CP27xx-0020 Panel PC Series
Beckhoff’s CP27xx-0020 series of fanless Multi-touch built-in Panel PCs are characterized by modern operation and an advanced, protective design. The series offers a variety of display sizes for various applications. The PCs feature highly integrated 3.5 inch motherboards and Intel Atom x5-E3930, 1.3 GHz dual-core processor. They are supplied with a 24 V DC power supply and 4 GB DDR4 RAM storage. They can be used in conjunction with TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate, Windows Embedded Standard 7, among others. With its two independent Ethernet interfaces, these units can be used as a compact CPU for an EtherCAT control system. The CP27xx-0020 series Panel PCs serve as a high-performance platform for construction and engineering applications.

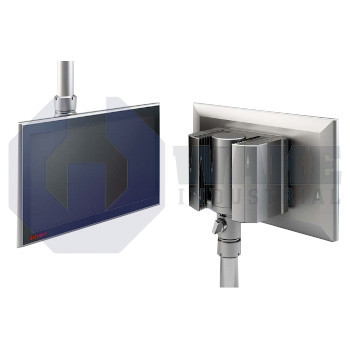

CP32xx-0020 Panel PC Series
The CP32xx-0020 Series by Beckhoff is characterized by high-end, high-performance devices with a sleek aluminum housing with complete IP 65 protection. These multi-finger touch screen panel PCs are equipped with a dual-core Intel Celeron G3900TE 2.3 GHz processor and a 3 ½ inch motherboard. These PCs feature an integrated mounting arm adapter (for a 48 mm diameter mounting arm tube) with rotation and tilting capabilities. CP32xx-0020 devices come in display sizes between 12 inches and 24 inches. Slots for one 2 ½ inch hard disk or SSD and one CFast card are available, as well as 4 GB DDR4 RAM storage.

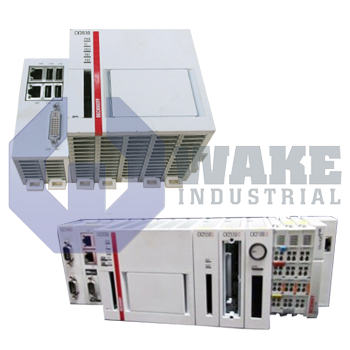

CX2030 Embedded PC Series
The CX2030 series is a part of the CX2000 family of embedded PCs. The PCs in the CX2030 series are fanless and have no rotating components. The PCs feature a dual-core 1.5 GHz Intel Core i7 processor. At their basic configuration, CX2030 PCs include a CFast memory card, 4 USB 2.0 interfaces, 2 independent Gbit Ethernet interfaces, and one DVI-I interface. The power supply for the devices in this series is from a CX2100 power supply module that is connected to the PC’s right side. The devices in this series use Windows Embedded Compact 7, Microsoft Windows Embedded Standard 7 P, or Microsoft Windows 10 IoT Enterprise 2016 LTSB operating systems, and feature TwinCAT 2 orTwinCAT 3 (XAR) runtime control software. CX2030 are equipped for application in climatically demanding environments due to their extended permissible operation and storage temperatures.

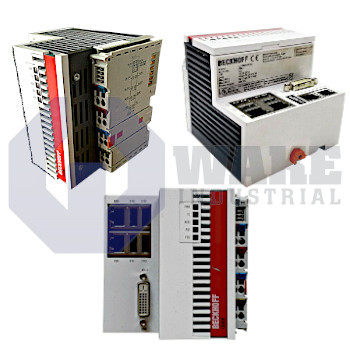

CX5020 Embedded PC Series
The CX5020 Embedded PC series is a part of the CX5000 family of DIN rail-mountable, fanless embedded PCs. CX5020 PCs are equipped with a single core 1.6 GHz Intel Atom® Z530 processor which features hyperthreading technology. Depending on what TwinCAT runtime is installed in each individual PC environment (TwinCAT 2 runtime and TwinCAT 3 runtime (XAR) are available in this series), the device can be used for implementing PLC/Motion Control projects with or without visualization. CX5020 series PCs can withstand application in climatically demanding environments. The magnesium construction of these devices serves to minimize weight and space, and provides better screening and ESD protection.

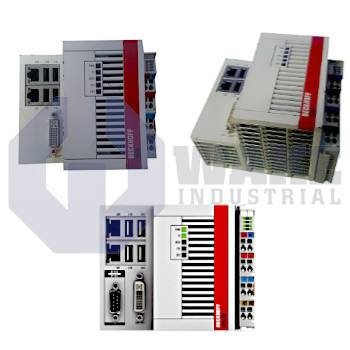

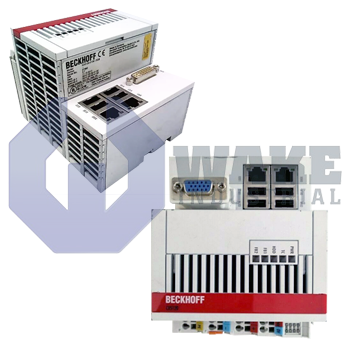

CX5120 Embedded PC Series
The CX5120 Embedded PC Series is characterized by its compact design, fanless design, and low power consumption. The PCs in this series operate with an Intel Atom® single-core processor, and come in a variety of configurations with Windows operating systems and TwinCAT control software. This device includes an internal battery-backed clock for time and date, and a slot for CFast and microSD cards (cards are not included). In these devices, two Gigabit-capable Ethernet interfaces, one DVI-I interface, and four USB 2.0 interfaces are available. With this series, Beckhoff offers a cost-effective option for machine and plant applications.

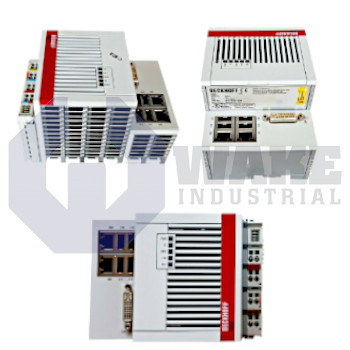

CX5130 Embedded PC Series
Beckhoff’s CX5130 series of Embedded PCs is characterized by the compact, fanless design and low power consumption of its members. The devices in the CX5130 series feature an Intel Atom® E3827 multi-core processor with a clock rate of 1.75 GHz. The newer and more efficient processors in this series allow for higher clock rates and reduced power losses. Depending on the control software installed (TwinCAT 2 and TwinCAT 3 (XAR) runtime environments are available), CX5130 PCs can be used for the implementation of PLC or PLC/motion control projects with/without visualization. CX5130 PCs are available with various control software and operating system combinations, and offer a top of the line option in terms of both price and performance.

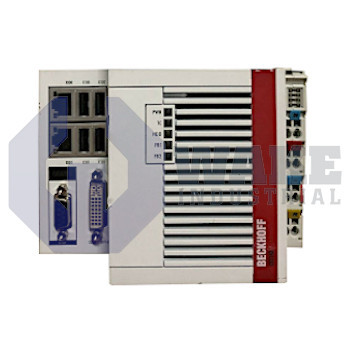

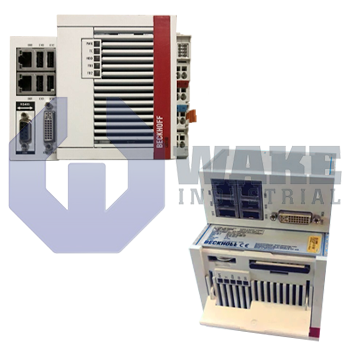

CX5140 Embedded PC Series
The CX5140 series of embedded PCs is characterized by DIN-rail-mountable, compact devices with an efficient fanless design and low power consumption. CX5140 devices feature an Intel Atom quad-core processor with a 1.91 GHz clock rate. CX5140 PCs feature 2 independent Gigabit-capable Ethernet interfaces, 4 USB 2.0 interfaces, and a DVI-I interface. An optional interface is also available for different connection options and gateway functions. Based on the TwinCAT runtime environment installed on the device, CX5140 PCs can be used for the implementation of PLC or PLC/motion control projects with visualization or without. The CX5140 series features efficient and high performance devices for many applications.

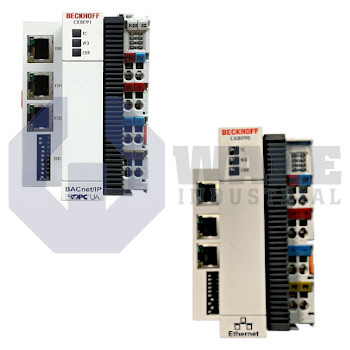

CX8000 Embedded PC Series
The CX8000 Embedded PC Series by Beckhoff is characterized by devices equipped with a 32-bit ARM-based processor. The units are fanless and operate with low electrical power consumption. The PCs in this series can be used for processing PLC programs or as slave devices for fieldbus systems. CX8000 devices implement the use of an Ethernet interface to be used for connecting the control system with a regular network. Microsoft Windows Embedded CE serves as the operating system for this series and TwinCAT 2 software is used for system configuration and PLC programming. CX8000 devices feature an integrated capacitive 1-second UPS which provides energy for backup in the event of a failure of the supply voltage.

CX8100 Embedded PC Series
The CX8100 series of Embedded PCs manufactured by Beckhoff is an advanced series featuring devices with fast CPUs, programmability with TwinCAT 3 and an expanded main memory. Four PCs are available in this series, and each offers a unique configuration for different industrial applications. The protocols featured in this series include EtherCAT (slave), serial communication, Ethernet, and BACnet. CX8100 devices can be used as decentralized controllers. Automatic recognition facilitates the use of K-bus or E-bus connections. The Microsoft Windows Embedded Compact 7 operating system is utilized in CX8100 devices. CX8100 embedded PCs feature an integrated 1-second UPS which provides energy in case of supply voltage failure. The devices also feature a 32-bit ARM Cortex-A9, 800 MHz processor. CX8100 PCs serve as efficient, high-performance controllers.

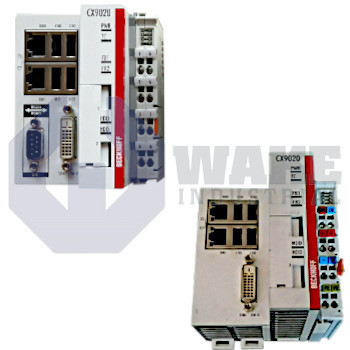

CX9020 Embedded PC Series
Beckhoff’s CX9020 Embedded PC Series features compact, DIN rail-mountable Ethernet control systems. These PCs are equipped with a 1 GHz ARM Cortex -A8 processor. The CX9020 PC comes in five different configurations based on the TwinCAT environment installed on the device, and TwinCAT automation software enables these devices to act as a powerful PLC system that can be operated with or without visualization. The operating system used in these devices is the Microsoft Windows Embedded Compact 7 system. The units operate with automatic bus system identification, and at their basic configuration feature several interfaces including two Ethernet RJ45 interfaces, 4 USB 2.0, and a DVI-D interface. The extended permissible operating temperature range allows for application in demanding environments. The devices in the CX9020 series offer efficient and cost-effective solutions for PLC and industrial applications.

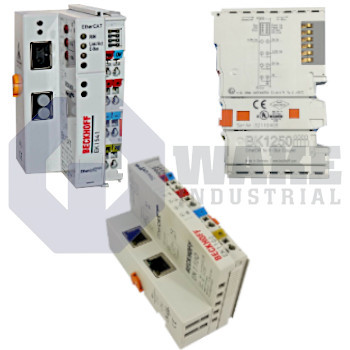

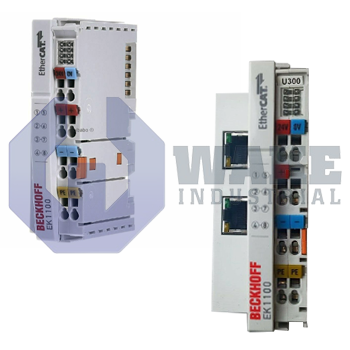

EK1xxx EtherCAT Coupler Series
The EK1xxx EtherCAT Series is a collection of EtherCAT couplers, interfaces, and junctions manufactured by Beckhoff. The devices in this series are equipped for different tasks within an EtherCAT system to be used in conjunction with EtherCAT terminals. The series offers a wide variety of options for efficient communication systems. Electronic terminal blocks attach to couplers with a simple clicking mechanism, and they can be individually exchanged. To maintain continuity and compatibility with an already existing system, both E-bus connection and K-bus connection type terminals can be connected (K-bus via BK1120 coupler). The devices in this series are characterized by their robust housing, secure contact points and solid construction.

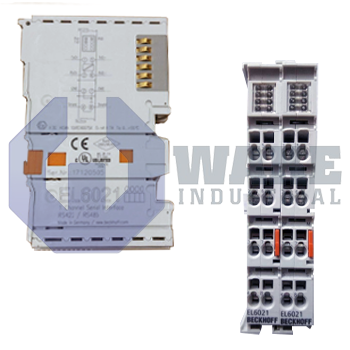

EL6xxx Communication Series
Beckhoff’s EL6xxx Communication Series is centered on terminals and interfaces. The products in this series vary in functionality and diagnostic options to work with EtherCAT terminal networks. These terminals support several different technologies and protocols such as IO-Link, PROFIBUS, DMX512, and DeviceNet. Master and slave configurations are available for various models. EL6xxx series terminals offer space-saving, cost-efficient, and powerful solutions for automation and engineering applications, while following safety guidelines and meeting international standards. They also provide error management through diagnostic/status LEDs and TwinCAT procedures that detect and correct errors. These terminals allow for flawless communication between devices and execute distinct functions based on their programming.
