BTV06 Miniature Control Panels

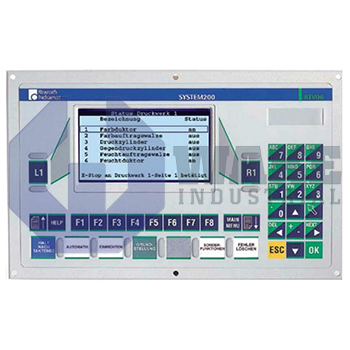

The BTV06 is another miniature control panel designed and manufactured by Bosch Rexroth Indramat. BTV control panels are used for machine handling and provide a graphical interface for ease of use. The control panel has dimensions of 318x200x53 mm and weighs 1.7kg. The front panel is made from a varnished aluminum polyester foil which is chemically resistant. The black and white LCD display is 240x128 pixels with full graphical capabilities encased in an impact-resistant enclosure. There are 39 keys, seven of which can be programmed individually by the operator to their specific needs. The BTV06 has a series 68000 microcontroller, 1 MB of flash memory, 512 KB ram, and two non-isolated serial interfaces. It is fitted with 10x24 V inputs and 10x24 V outputs in addition to COM1 & COM2 interfaces. Furthermore, it features an RS485/422 interface to enable the communication with other Indramat products.
