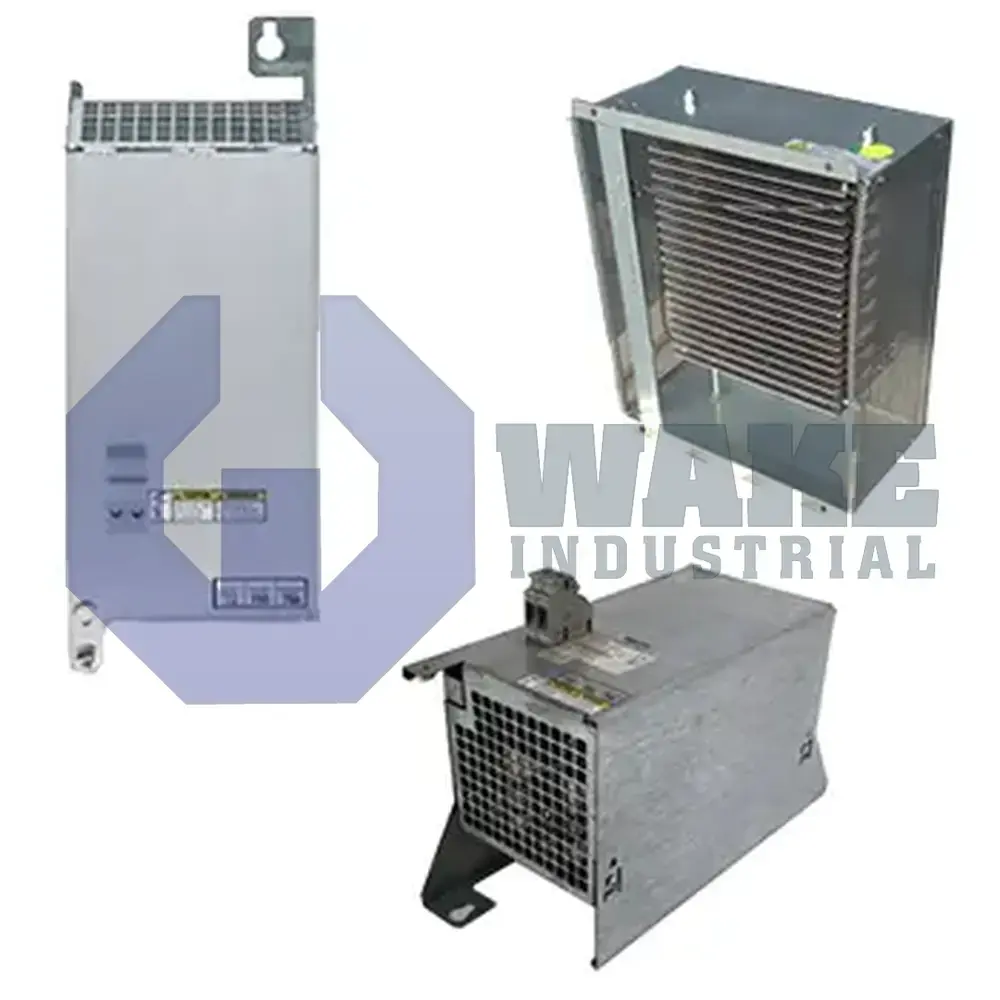

The HLR01 brake resistor series is a Bosch Rexroth accessory line designed for use with HCS03 converters operating in regenerative applications.
The units are mounted directly above the converter, which reduces panel space requirements and uses the converter’s extracted airflow to help cool the resistor assembly. The series is built for high pulse loading, with resistor elements described as robust, high in dielectric strength, flameproof, and fully encapsulated for protection against environmental effects. Models cover a wide performance range, from 0.3 kW / 37 kWs units up to 36 kW / 3,888 kWs units, and the technical tables show a 120 s cycle time across the shown variants. Physical sizes and weights vary substantially by model, ranging from 123 × 300 × 196 mm at 3 kg up to 995 × 710 × 490 mm at 93 kg
