BTV05 Series

BTV05 Series

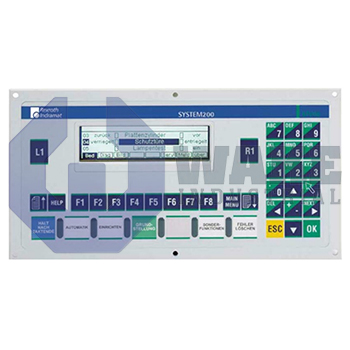

The BTV05 miniature control panel, designed and manufactured by Rexroth Indramat, is used to operate and control PLC-oriented machinery through a graphical interface. This control panel’s dimensions are 318x163x52 mm with a weight of 0.74 kg, mainly from its aluminum front panel. The panel’s LCD display is a higher resolution than the BTV04 series at 256x64 pixels and is enclosed in an impact-resistant IP65 rated enclosure. There is also a simple keyboard with seven LED keys for machine control that can be labeled accordingly. This control panel is fitted with 10x24 V inputs and 11x24 V outputs and equipped with RS422/485 and RS232 interfaces to enable communication with other Indramat products. The setup process is done via software that comes with the unit and loaded onto the BTV05 using a PC and a connection cable. Once loaded, the software will allow for customization.
