Product Description

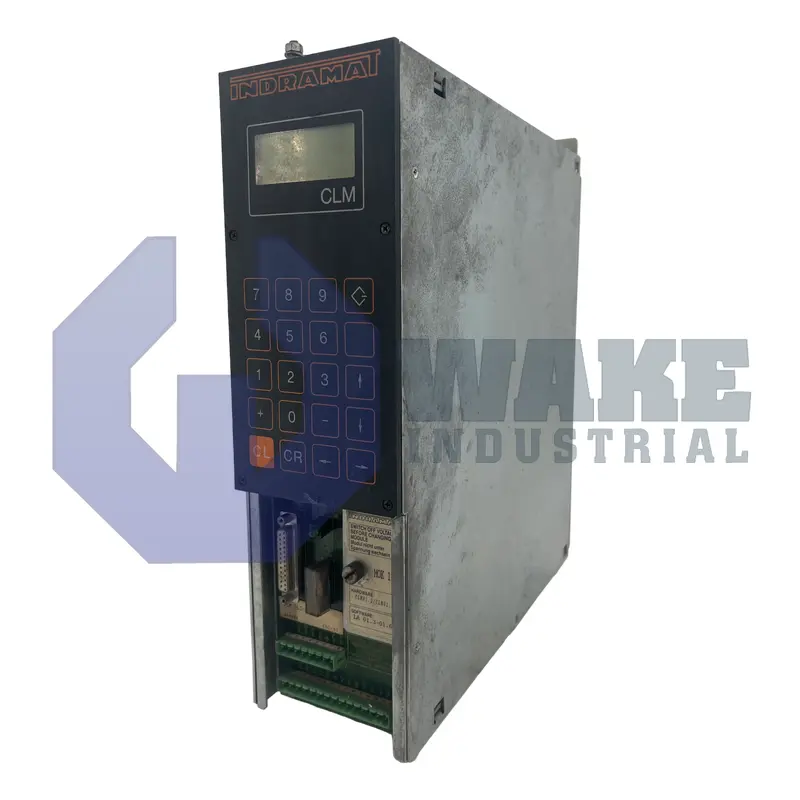

The CLM 01.3-X-0-2-0 control made by Bosch Rexroth operates as a feed-to-length positioning control. The control features a detachable firmware/program module below the keypad on the right side. The device uses a battery for its operation. Its operation is executed by a microprocessor. The unit is used to control a maintenance-free AC servo system. The product renders a closed-loop feedback system that offers precision position and speed control all the time. The device is available with two software variants that are capable of conducting intermittent incremental moves. It has a self-diagnosis capability. The product features a modular structure and can be fitted on to an electrical enclosure.

The control comes with pre-defined inputs and outputs for acknowledging and controlling machine outputs. The standard version of the device features 32 inputs as well as 32 outputs. This unit also comprises one 32-bit microprocessor, 128K RAM, and 256K EPROM. The product supports a convection mode of cooling. This device must be stored and transported between -30°C and 85°C. Its keypad incorporates 20 pressure-sensitive membrane style keys. The operating status messages of the unit are displayed on its liquid crystal display. The X7 auxiliary drive connector is between the X5 and X6 connectors.

The input/output signals of the control help in communicating with other parts of the machine. The device is intended to control a continuous indexing process like a press feeder. It also operates in the Parameter, Manual, Automatic, or Setup mode. The product operates in Setup mode when the batching option is used. The unit encompasses a multi-format port for two-way communication. The product supports three-position correction methods using a measuring wheel. The device verifies the parameters each time its power is turned ON. The CLM 01.3-X-0-2-0 positioning control comes with a one-year warranty and can be shipped to any global destination.
