Kollmorgen S700 Servo Drives – Advanced Precision Motion Control

The Kollmorgen S700 Servo Drives represent a cutting-edge family of digital servo amplifiers designed for high-performance motion control in demanding industrial applications. Engineered for precision, reliability, and flexibility, these drives offer the robust functionality that engineers, plant owners, business owners, and sales professionals need to optimize automation processes. Featuring advanced connectivity options, built-in safety functions, and a wide power range, the S700 series is a proven solution for achieving smooth, responsive motion control across various industries. Wake Industrial carries these items in stock and can repair, refurbish, or replace any broken S700 part. Call 1-919-443-0207 or use the above form to contact a Wake Industrial representative. The typical response time during business hours is within 15 minutes.

Overview

Kollmorgen’s S700 Servo Drives are renowned for their state-of-the-art technology and exceptional engineering quality. These drives offer:

• Advanced Digital Control: Equipped with high-speed digital processing, the S700 series ensures precise control of servo motors, delivering rapid acceleration and deceleration while maintaining consistent, smooth motion.
• Flexibility Across Applications: Designed to serve a wide range of applications—from aerospace and robotics to packaging and manufacturing, the S700 drives enable seamless integration into both legacy systems and modern industrial networks.
• Robust Safety and Connectivity: With features such as Safe Torque Off (STO) and support for multiple fieldbus protocols (e.g., EtherCAT, CANopen), these drives provide both high performance and secure operation in safety-critical environments.
• Ease of Integration: The modular design and comprehensive feedback and I/O capabilities make the S700 series adaptable to diverse control architectures, reducing the need for system-wide overhauls when upgrading to a new drive.

Whether upgrading an existing system or installing new machinery, the S700 Servo Drives deliver the high-speed performance, reliability, and technical versatility required in today's competitive industrial landscape.

Key Features & Technical Specifications

The S700 Servo Drives are engineered with a host of advanced features that enhance both performance and usability.

Wide Power Range and Performance

• Current Capabilities:
  The S700 series is available in various configurations, supporting continuous output currents from approximately 1.5 A to 72 A RMS per phase. This wide range ensures compatibility with both small-scale and high-power servo motors, making the drives suitable for a broad spectrum of applications.
• Peak Current Handling:
  The drives can handle peak currents up to 3–4 times the continuous rating for short bursts, providing the extra torque necessary for rapid acceleration or overcoming transient load spikes.
• Dynamic Performance:
  Featuring high-speed current, velocity, and position control loops, the S700 drives ensure rapid response times and precise control, which is crucial for maintaining accuracy during high-speed operations or complex multi-axis movements.

Advanced Motion Control and Safety

• Programmable Motion Logic:
  With an integrated IEC 61131-3 macro programming environment, these drives allow for the customization of motion control algorithms. This flexibility empowers engineers to tailor drive behavior to specific application requirements without relying on external controllers.
• Built-In Safety Functions:
  Safety is paramount in industrial automation. The S700 drives include a two-channel Safe Torque Off (STO) function that quickly disables output torque during emergency conditions. This feature adheres to international safety standards (such as Performance Level d, SIL CL 2), ensuring both personnel safety and equipment protection.

Connectivity and Communication

• Fieldbus Integration:
  S700 drives come with onboard interfaces for popular industrial communication protocols. Standard options include EtherCAT® and CANopen, while additional modules can support PROFINET, DeviceNet, PROFIBUS DP, SERCOS II, and even RS232. This versatility enables seamless integration into modern and legacy control systems alike.
• Single-Cable Feedback Solutions:
  For streamlined installation, these drives support single-cable feedback options, such as using Kollmorgen’s SFD3 or the Hiperface DSL protocol, reducing wiring complexity and enhancing system reliability.

Power Supply and Internal Hardware

• Broad Voltage Compatibility:
  Designed for global applications, the S700 drives operate from 110 VAC to 480 VAC, whether in single-phase or three-phase configurations. Internally, the drives support a wide DC bus voltage range, accommodating variations in supply and ensuring stable performance under fluctuating load conditions.
• Dynamic Braking and Thermal Management:
  Each unit features a dynamic braking circuit that dissipates regenerative energy safely, coupled with built-in EMC filters and cooling systems (such as integrated fans on higher-power models) to maintain optimal operating temperatures.

Feedback and I/O Capabilities

• Versatile Feedback Options:
  The drives support multiple types of feedback devices, including incremental and absolute encoders, resolvers, and even Hall sensors for commutation. This ensures compatibility with a wide array of servo motors and facilitates high-precision control.
• Configurable I/O:
  A set of configurable digital and analog inputs and outputs allow the drive to manage auxiliary functions such as limit switches, emergency stops, and other control signals directly, contributing to a more integrated and compact control system.

Autotuning and Performance Optimization

• Simplified Commissioning:
  The S700 series features intelligent autotuning capabilities that automatically adjust PID parameters and feedforward settings based on a brief test movement of the motor. This reduces setup time and ensures that the drive operates at its optimum performance from the outset.
• Cogging Suppression:
  With built-in cogging suppression algorithms, the drives can minimize the minor jerks or vibrations caused by motor cogging. This is particularly beneficial in applications demanding ultra-smooth operation, such as high-precision machining or high-speed packaging.

Environmental and Mechanical Specifications

• Robust Design:
  Housed in durable metal enclosures, the S700 drives are designed for cabinet mounting. They come in diverse sizes to accommodate different power ratings—from compact models for lower currents to larger units for high-power applications.
• Operating Conditions:
  These drives are designed to function reliably in industrial environments with ambient temperatures typically ranging from 0°C to 40°C (up to 45°C with derating). They are built to withstand moderate vibrations and dust, ensuring long-term durability in factory settings.
• Certifications:
  The S700 drives are compliant with international standards, featuring certifications such as CE and UL, and have undergone rigorous testing for electromagnetic compatibility (EMC) and safety.

Supported Models and Variants

The versatility of the S700 series is defined by its diverse range of models, each tailored to different performance needs and application environments. Below is an overview of some key models:

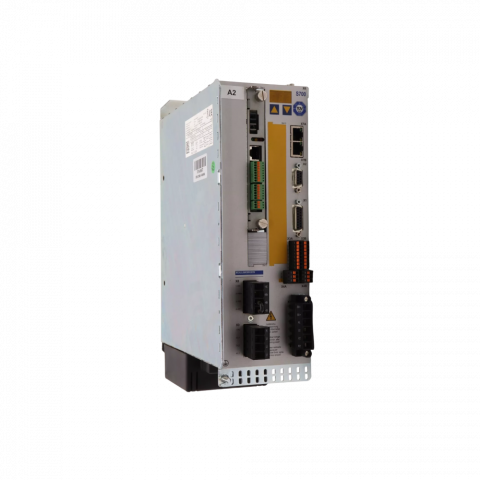

S71202-NANANA

The S71202-NANANA is a mid-range model in the S700 family. Key characteristics include:

• Current and Power:
  Designed to handle a continuous output current around 12 A, with the ability to support transient peaks up to 24 A. This makes it suitable for medium-duty applications where precision and responsiveness are necessary.
• Applications:
  Ideal for systems where each axis may demand between 5 and 10 kW of drive capacity. This model strikes a balance between performance and versatility, making it a common choice in multi-axis machinery.
• Connectivity and Safety:
  It incorporates essential fieldbus options (such as EtherCAT and CANopen) and safety features like STO, ensuring compliance with stringent industrial safety requirements.

S72402-NANANA

At the high end of the power spectrum is the S72402-NANANA model:

• High-Power Capability:
  With a continuous output current of approximately 24 A and a rated power capacity of around 18 kVA, the S72402-NANANA is designed for heavy-duty industrial applications. It delivers ample peak current support, making it suitable for high-torque and large servo motor applications.
• Thermal and Dynamic Management:
  The model includes enhanced cooling and dynamic braking systems, ensuring stable operation even under demanding loads and rapid deceleration scenarios.
• Industrial Integration:
  Its robust communication options and integrated safety systems make the S72402-NANANA ideal for large machinery, such as gantry systems, high-torque spindles, and heavy robotic arms.

S70602-NANANA-NA

The S70602-NANANA-NA model represents a compact yet efficient option:

• Lower Power Needs:
  Rated at around 6 A continuous output, this model is suited for applications with moderate power requirements, typically in the lower-mid range of the S700 series.
• Compact Design:
  Its smaller footprint and reduced cooling needs make it a practical choice for systems with limited space, such as compact industrial machines or multi-axis systems with many drives.
• Enhanced Features:
  Despite its size, the S70602-NANANA-NA retains critical features including EtherCAT and CANopen connectivity, integrated dynamic braking, and safety protections like STO, ensuring that even lower-power systems benefit from advanced control and safety features.

S70101-NA

For entry-level applications, the S70101-NA offers a cost-effective solution without sacrificing quality:

• Basic Power Requirements:
  With a continuous output current of approximately 1.5 A and a peak current capacity up to 4.5 A, this model is optimized for smaller servo motors and actuators.
• Versatile Integration:
  Even as an entry-level model, it supports a wide range of communication protocols and feedback devices, allowing it to integrate seamlessly into various control systems.
• Feature-Rich Functionality:
  The S70101-NA is equipped with the same core control features as its higher-powered siblings, including safety circuits, customizable I/O, and firmware upgrade capabilities. This ensures that applications requiring precise motion control can scale without a complete system redesign.
