S71202-NANANA

  • Rated 4.6 (11 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-7 Days
  • Call for Expedited Shipping and Product Condition Options

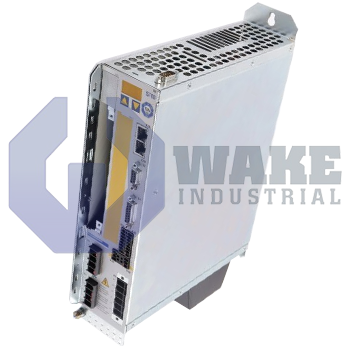

The S71202-NANANA is manufactured by Kollmorgen as part of their S700 Servo Drive Series. These drives feature a Rated line power for S1 operation of 9 kVA and a Peak output current of 24 A RMS. Alongside of a Voltage rating of 208-480 V and a Maximum DC bus link voltage of 900 V.

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen sells advanced control equipment for automation. The company has many different products such as AGV technology, servo motors, electric drives and linear actuators. The S71202-NANANA is included in the S700 series of servoamplifiers. This device works on a triphase 208 to 480 V AC power supply (at 50/60 Hz). This drive model may be controlled via its integrated CANopen or EtherCAT integrated interface or using its pulse/direction port for electronic master/slave mode.

The device can generate a nominal current of 12 A and can sustain a limit current of 24000 milliampere for a time below 5 seconds. The whole parameter setup of the S71202-NANANA should be carried out with setup software installed on any ordinary Personal Computer. The S71202-NANANA has an integrated RS-232 interface which attaches to the computer. The system supports a plenty of feedbacks like sine EnDat 2.1 or 2.2 encoders, encoders with Hall sensor, incremental encoders and SinCos HIPERFACE encoders using its integrated socket.

The servoamplifier offers a base single-channel safety Safe-Torque-Off (STO) feature that allows the drive to obtain the following certifications: PL d and SIL CL 2 (according to IEC 62061). The drive offers a collection of embedded I/Os connectors, such as 4 digital inputs, 2 analog inputs and 2 digital I/Os (they work both as inputs and outputs), that may be used in order to fit the customer's necessities. The ambient temperature around the S71202-NANANA should be in the following range: 0… 45 degrees Celsius while the equipment is in working conditions and shall remain in the range from -25 to 55 degrees Celsius while the system is in a storage.

  • S-71202-NANANA
  • S-71202NANANA

S71202-NANANA Technical Specifications

Maximum DC bus link voltage: 900 V
Weight: 4.4 kg
Interface Options: CANopen and EtherCAT
Serial Interface: RS 232
Safety Option: Safe Torque Off onboard
Slots: 3 Exapansion Card Slots, 1 Memory Card Slot
Compatible Motors: Synchronous motors, DC motors, asynchronous motors, linear motors.
Large supply voltage range: 1 x 110V-10% … 3 x 480V+ 10%
Analog Inputs: 2 programmable analog inputs
Digital Inputs: 4 programmable digital inputs

Frequently Asked Questions about S71202-NANANA


Q: Which programming language is supported by the S71202-NANANA?

A: The S71202-NANANA supports the IEC 61131 macro programming language that makes it suitable for specific drive control applications.

Q: Does the S71202-NANANA have inbuilt safety options?

A: The S71202-NANANA comes with multiple inbuilt safety features including safe stop (SS2), safety limit speed (SLS), and safe torque off (STO).

Q: How can the parametr setup be done for the S71202-NANANA?

A: When using the S71202-NANANA, the parameter setup is done through a setup software installed on a standard PC. This simplifies the entire operation and configuration process.

Q: What feedback options are avaialble with the S71202-NANANA?

A: The S71202-NANANA is equipped with a variety of feedback options including the EnDAT 2.1 and SinCos Hiperface encoders.

Q: Which connector options are avilable with the S71202-NANANA?

A: The S71202-NANANA comes with multiple embedded I/O connectors, digital inputs, and digital outputs for more flexibility and adaptability.

Internal Product Review

  • ‘‘The S71202-NANANA is useful because of its compatibility with various power supplies (208V to 480 V AC). Because of various communication interfaces (specially CANopen and EtherCAT), the system can be easily integrated with other platforms.’’
