S20360-CNS
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

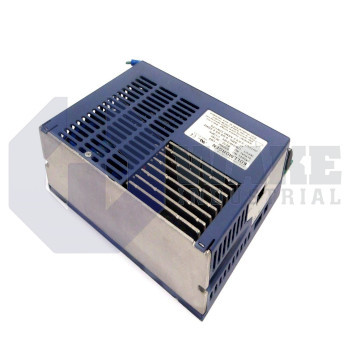

The Kollmorgen S20360-CNS AC servo drive delivers peak output currents up to 9 A and 3000 VA power. It handles regenerative braking efficiently with continuous dissipation at 640 W.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Kollmorgen is a well known manufacturer specializing in motion control solutions including motors, drives and servo systems. Their extensive product range features high performance servo drives, stepper motors and motion controllers widely used in industrial automation and robotics applications.
The S20360-CNS AC servo drive is designed for precision motion control applications. It offers a peak output current of 9 A and can handle continuous output currents up to 4.5 A at ambient temperatures of up to 30 degrees C. The drive supports input voltages of 240 VAC and operates efficiently in a 3-phase system with a peak output power of 3000 VA. It is also capable of handling peak regenerative power up to 6.4 kW with continuous regeneration at 640 watts. This makes it suitable for applications requiring high speed dynamic braking. The unit operates at a high output current ripple frequency of 20 kHz. The drive's regen capability is 10 % duty cycle at 25 degree centigrade that ensures safe energy dissipation during braking. It's also compatible with various motor types accommodating inductance from 2.5 to 150 mH.
The S20360-CNS AC servo drive has a compact design with dimensions of 175.0 mm height, 54.8 mm width, and 131.6 mm depth. The unit's maximum motor power cable length extends to 50 meters depending on the cable gauge. Its operating temperature ranges from 0 to 40 degrees C with derating up to 50 degrees C and it is designed for use at altitudes up to 1500 meters. The drive also features high performance velocity loop compensation parameters offering precise control with a bandwidth of 400 Hz and resolution of 0.558 rpm for serial commands. Its rugged build allows for operation in humidity up to 90 %.
Frequently Asked Questions about S20360-CNS:
Q: What are the voltage specifications for the S20360-CNS AC servo drive?
A: The S20360-CNS AC servo drive supports a 3-phase input voltage of 240 VAC. It efficiently operates in industrial environments, providing precise control with high-performance velocity loop compensation.
Q: How much regenerative power can the S20360-CNS handle?
A: The S20360-CNS can manage peak regenerative power up to 6.4 kW. It also handles continuous regeneration at 640 watts, making it suitable for high-speed dynamic braking applications.
Q: What motor compatibility does the S20360-CNS AC servo drive offer?
A: The S20360-CNS drive accommodates motors with inductance between 2.5 and 150 mH. This flexibility makes it ideal for various motion control setups, including those with diverse motor types.
Q: What are the environmental specifications for the S20360-CNS?
A: The S20360-CNS operates at temperatures from 0 to 40 degrees C with derating up to 50 degrees C. It's designed for altitudes up to 1500 meters and can handle humidity levels of up to 90 %.
Q: What are the size and cable length specifications for the S20360-CNS?
A: The compact S20360-CNS measures 175.0 mm in height, 54.8 mm in width, and 131.6 mm in depth. It supports motor power cable lengths up to 50 meters, depending on cable gauge.
