PPC-R22.1N-T-NN-P2-NN-FW

MPN: 1070170285

No Tariffs On US Orders
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships Today

Preparing your secure checkout page...

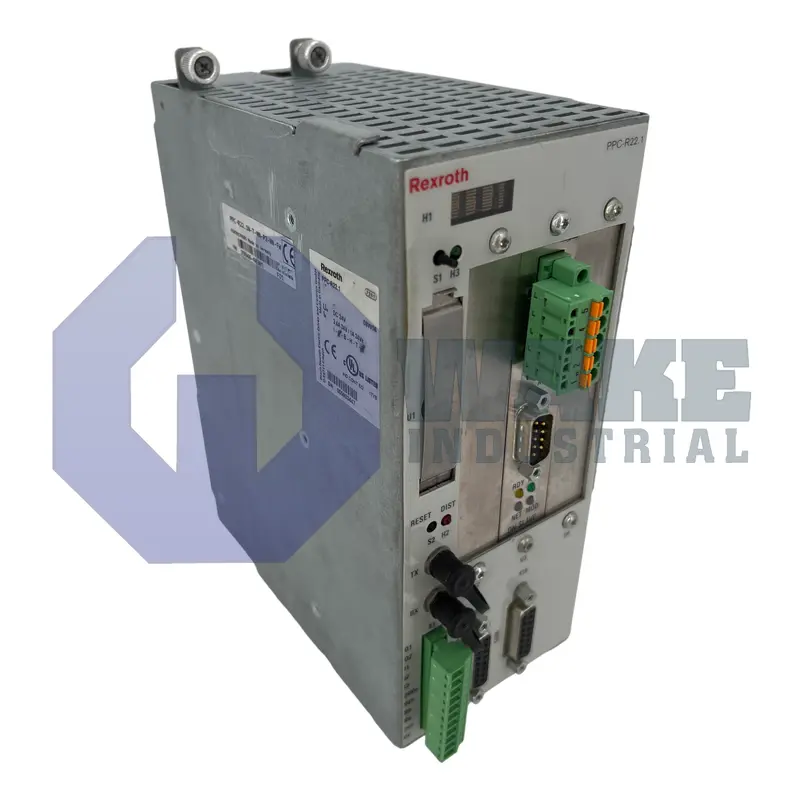

The PPC-R22.1N-T-NN-P2-NN-FW is a high-performance motion control unit manufactured by Bosch Rexroth Indramat. The product comes with a 4-digit alphanumeric matrix display. When the device is used as a stand-alone control, it is installed in the left most slot of an RMB rack.

Quote Request Form:

Warranty
Wake Industrial Warranty
To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

The PPC-R22.1N-T-NN-P2-NN-FW CNC module must be operated only if the application in which it is intended to be used complies with the required national EMC regulations. The module has a grounding bolt at the bottom. Its PSM firmware module is a 4MB flash memory. The device supports the use of plastic and glass fiber optic cables. The plastic fiber optic cables have a maximum transfer length of 40m while the glass fiber optic cables have a maximum transfer length of 500m.  Errors due to improper handling and assembly of the product can result in mechanical damage to the fiber optic cables.

The CNC module features a diagnosis system to analyze any malfunction or operating state. The H1 diagnosis display that is housed in front of the control unit is a four-character alphanumeric display. If the S1 button of the device is pressed for more than a second, the S1 menu opens. This menu can be used to display the firmware ID with the date and device type alternatively. The ready for operation state is highlighted as a two-digit character bb. The diagnosis display highlights either a two-digit error code or a four-digit error code depending on the error. The four-digit error code is identified by the letter S followed by three decimal digits.

The module must be stored and transported between -25°C and 70°C by ensuring that there is no condensation on it during this period. It also features a relative humidity of 5% to 95% and atmospheric pressure from 70kPa to 106kPa during transport and storage. The PROG interface features electrical isolation. The device is fitted with a PROFIBUS-DP slave module. The SERCOS interface can control 32 drives in the maximum configuration. We can send the PPC-R22.1N-T-NN-P2-NN-FW module to any country in the world with a one-year Wake Industrial warranty.

Communication Interface
SERCOS
Diagnostic Display
4-digit alphanumeric matrix display
Firmware
Ordered Separately
Internal Clock
Present
Maximum Current Consumption
1.2A
Memory
PFM01.1 Compact Flash Memory Card
Mounting Style
With RMB02.2 racks on TS 35x27x15 DIN rais
Permissible Range
19.2 ... 30 VDC (ripple factor included)
Protection Rating
IP20
Weight
1.3 kg
  • PPCR22.1N-T-NN-P2-NN-FW
  • PPCR22.1NTNNP2NNFW
  • PPC R22.1N T NN P2 NN FW
Fault / Error Code What it means Corrective action
Power-on state stops at -08 CPU/mainboard fails its self-test during initialisation; the control never reaches phase 0  Cycle power; if the halt repeats, replace or have the PPC-R22 CPU board repaired.
F01 – SERCOS ring break Fibre-optic loop to the drives is open; no closed light-path detected  Inspect/clean connectors, check bend radius, repair or replace damaged fibres, then restart the PPC.
F05 – Double drive telegram failure A drive telegram has been lost twice, signalling ring noise or a defective drive  Locate the failing node: reseat fibres, verify drive power; replace the suspect drive if the error persists.
F07 – Drive addresses incorrect Duplicate or unset SERCOS drive IDs detected, list in Y-0-0002 doesn’t match the ring  Assign unique addresses, update Y-0-0002, store, and reboot the controller.
F08 – Maximum number of drives exceeded Parameterisation demands more drives/functions than the current SERCOS cycle can support  Reduce drive count or disable advanced functions (e.g., positioning mode), or lengthen the SERCOS cycle.
F15 – Parameter not correct One or more PPC parameters outside limits or lists inconsistent (“soft fault”)  Use VisualMotion/IndraLogic “Restore” or correct the offending parameter set, then reboot.
F21 – SERCOS transmission error (no drive responds) During start-up the controller receives no replies from any drive on the ring  Verify drives are powered and addressed, check fibre loop continuity, then cycle power and re-initialise.
F24 – Memory/NVRAM error Internal NVRAM or CompactFlash checksum error detected  Power-cycle to force an auto-restore; if the fault recurs, replace or re-image the CompactFlash card.
F31 – Ring not correctly closed in phase Px During phase switch the SERCOS ring could not reach the next phase because the loop is crossed or open  Power off, rearrange the fibre loop so that drives are daisy-chained correctly, then power on and test.
F98 – Drive error forwarded A connected servo drive has reported its own fault to the PPC  Use SynTop/VisualMotion to read the drive’s S-0-0095 text, clear the drive fault first, then reset the PPC.
Full part number On-board field-bus option Ethernet port Memory / firmware Max. current draw Weight
PPC-R22.1N-T-NN-P2-NN-FW  PROFIBUS-DP slave card Yes PFM01 CF card, 4 MB; firmware ordered separately 1.2 A @ 24 V DC 1.3 kg
PPC-R22.1N-T-NN-P1-P2-FW No factory bus card (two empty slots) Yes VisualMotion GPP 10 in flash 1.2 A @ 24 V DC 1.3 kg
PPC-R22.1N-N-Q1-P2-NN-FW PROFIBUS-DP master card (64-byte I/O) No (serial only) VisualMotion GPP 10; supports up to 40 drives 1.2 A @ 24 V DC 1.3 kg
PPC-R22.1N-T-N1-P2-NN-FW PROFIBUS-DP slave + PLS card Yes GPP 10; three expansion slots (two populated) 1.2 A @ 24 V DC 1.3 kg
PPC-R22.1N-N-NN-P1-NN-FW PROFIBUS-DP master (Q-slot empty) No GPP 10; 1.2 A @ 24 V DC 1.3 kg
PPC-R22.1N-T-G2-P2-NN-FW PROFIBUS-DP slave; ready-for-operation relay Yes GPP 10; battery-backed RTC 1.2 A @ 24 V DC 1.3 kg
Error Code What it means
F01 SERCOS optical ring break – loop is not closed
F07 Duplicate, missing or otherwise invalid drive addresses detected on the ring
F08 Parameterisation demands more drives/functions than the current SERCOS cycle permits (“maximum number of drives exceeded”)
F10 PPC-internal memory/RAM error discovered by the self-test
F15 One or more controller parameters are outside limits or inconsistent (“parameter not correct”)
F21 SERCOS transmission error – no drive answers the controller
F24 Non-volatile memory (CompactFlash / NVRAM) checksum or access fault
F31 SERCOS ring not correctly closed when switching phases (Px) (scribd.com)
F33 Communication via the fieldbus (ARCNET/Profibus/Interbus, etc.) is impossible
F98 A connected servo drive has signalled its own fault to the PPC (“drive error forwarded”)

Frequently Asked Questions about PPC-R22.1N-T-NN-P2-NN-FW:

Q: What is PPC-R22.1N-T-NN-P2-NN-FW used for?

A: The PPC-R22.1N-T-NN-P2-NN-FW is stand alone multi axis and logic controller. It improves operational efficiency of industrial machines by accurately controlling servo drives according to pre-determined configuration parameters.

Q: What type of power supply should be used with PPC-R22.1N-T-NN-P2-NN-FW

A: The power supply unit used with PPC-R22.1N-T-NN-P2-NN-FW should be a switching power supply with an inrush current as high as 20 ampere.

Q: How should PPC-R22.1N-T-NN-P2-NN-FW be installed?

A: The PPC-R22.1N-T-NN-P2-NN-FW should be installed in a vertical upright position.Adequate clearance should be allowed above and belove the control to provide enough space for hear dessipation.

Q: How can the disgnostic lights on the PPC-R22.1N-T-NN-P2-NN-FW be interreted

A: Each mtor is delivered with a documentation that contain information on all types of lights displayed on the motor. Operators should check the documentation for information on diagnostic lights.

Q: How can the operator interact with PPC-R22.1N-T-NN-P2-NN-FW in real time?

A: The PPC-R22.1N-T-NN-P2-NN-FW can be operated with VCP small operator terminals. The operator can view, modify parameters, and jog axes through these terminals.


Internal Product Review

  • ‘‘The PPC-R22.1N-T-NN-P2-NN-FW hardware control is easy to use and perfect for general motion control and robotic operations.’’
