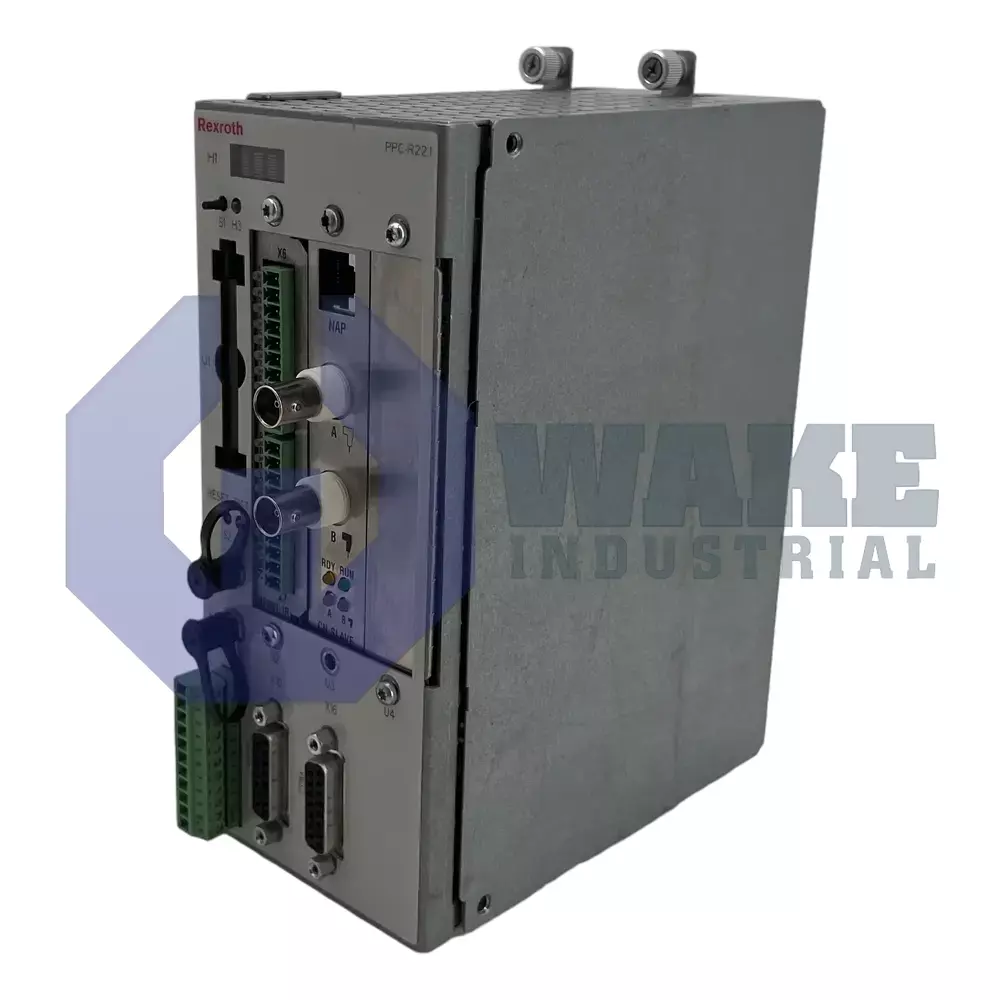

PPC-R22.1N-T-N1-L2-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911311143
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat PPC-R22.1N-T-N1-L2-NN-FW is a control unit from the PPC Controllers series featuring a ControlNet fieldbus slave interface and an Ethernet baud rate up to 100 MBaud. It supports up to 40 drives, includes three expansion slots, and offers a protection rating of IP20. The unit is equipped with 32 MB of flash memory and operates on a 24 VDC supply voltage.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R22.1N-T-N1-L2-NN-FW is a control unit from Bosch Rexroth Indramat’s PPC Controllers series. As a modular RECO-format controller, it coordinates multiple Indramat drives and peripheral devices on automated production lines. By processing motion commands and forwarding them over Sercos, ControlNet, and serial links, the unit serves as the central control layer in multi-axis systems. This arrangement allows one controller to manage motion tasks while also handling communication with connected network and interface modules.
It features a ControlNet interface that exchanges 64 B In / 64 B Out of cyclic data at 5 MBaud. For machine visualization and diagnostics, the Ethernet port supports full-duplex, auto-negotiated traffic up to 100 MBaud, so the controller can join standard switches without manual speed selection. Firmware, boot loader, and axis tables reside in a 32 MB flash array, and memory expansion is not equipped, so stored recipes and trace data must remain within that fixed capacity. The sealed electronics meet IP20 protection, and cable terminations accept conductors up to 1.5 mm², allowing the module to be wired with common control-cabinet leads while still fitting into narrow RECO racks. This layout keeps communication, storage, and wiring functions organized within the same compact housing.
Design version 1 of the controller ships with 3 expansion slots, and one of them can accept the NSW01 PLS option card for position-linked switching while the others remain available for fieldbus or I/O extensions. The board is energized by 24 VDC and supervises up to 40 drives over a Sercos channel that can clock at 16 MBaud, giving each axis deterministic update timing. Two serial ports use the 8N1 format and reach 115200 baud, and their data can also be forwarded through TCP/IP port 5001 for browser-based access. The RECO unit housing seats on the Rexroth backplane, and the ability to operate ControlNet, serial, and Ethernet segments in parallel reduces communication delays when more extensive diagnostics are active.
Frequently Asked Questions about PPC-R22.1N-T-N1-L2-NN-FW:
Q: How many drives can be managed by the PPC-R22.1N-T-N1-L2-NN-FW controller?
A: The PPC-R22.1N-T-N1-L2-NN-FW supports up to 40 drives for large-scale automation systems.
Q: What is the flash memory capacity of the PPC-R22.1N-T-N1-L2-NN-FW?
A: This controller offers 32 MB of built-in flash memory for configuration and program storage.
Q: What type of fieldbus interface is integrated in the PPC-R22.1N-T-N1-L2-NN-FW, and what is its baud rate?
A: It operates with a ControlNet fieldbus slave interface via the CNS01, supporting a Controlnet baud rate of 5 MBaud.
Q: What supply voltage does the PPC-R22.1N-T-N1-L2-NN-FW require?
A: The supply voltage required for this controller is 24 VDC.
Q: How many expansion slots are available on the PPC-R22.1N-T-N1-L2-NN-FW, and can it support option cards?
A: Three expansion slots are included with the PPC-R22.1N-T-N1-L2-NN-FW for additional modules like the PLS option card (NSW01).
