Get a quote FAST on all Bosch Rexroth Indramat IndraDrive products, including the HCS, HMD, and HMV. Receive a quote as fast as 15 minutes by calling 1-919-443-0207 or by sending an email to sales@wakeindustrial.com. Don’t wait until an emergency and your production is down, call now to receive a price competitive quote.
Wake Industrial is a practical source for Rexroth Indramat IndraDrive replacement units, repair service, refurbishment support, and surplus purchasing. The IndraDrive platform covers compact single-axis converters, heavier cabinet-mounted drive controllers, modular double-axis inverter sections, and dedicated supply units for shared DC bus systems. That makes it useful for plants and OEMs that need to keep proven automation hardware in service without forcing a larger redesign around a different drive platform. If you are replacing a failed unit, building out spare inventory, or looking to sell excess Rexroth drive hardware, Wake Industrial supports the buy, repair, refurbishment, and surplus side of the IndraDrive lifecycle.
Bosch Rexroth IndraDrive
The Bosch Rexroth Indramat IndraDrive family is broad enough to cover small motion axes, higher-current single-axis servo duties, modular multi-axis architectures, and DC bus supply requirements in one product ecosystem. HCS01 serves the compact end of the range with lower current classes and a smaller cabinet footprint. HCS02 expands that concept into stronger single-axis performance with higher continuous and peak current capability. HCS03 moves into high-current compact converters for larger motors and higher DC bus power demand. HMD01 is the modular double-axis inverter section for two-axis DC bus systems, while HMV01 provides the infeed or regenerative supply side for modular IndraDrive M installations. For customers that need replacement hardware, service support, or a way to recover value from idle automation inventory, Wake Industrial is positioned as the premiere source for IndraDrive sales, repair, refurbishment, and surplus purchasing. Click here to place a quote now.
HCS01 Rexroth Indramat IndraDrive Compact Converters
The HCS01 family is the smaller-frame IndraDrive C option for applications that need compact cabinet-mounted drive hardware without giving up industrial electrical performance. In the uploaded HCS01 manual, the documented -03 voltage-class units are listed with a rated control voltage input of 24 V DC ±20%, a rated input voltage of 3 x AC 200 to 500 V with ±10% tolerance, and output-current classes of 1.7 A, 2.7 A, 7.6 A, 11.5 A, and 21.0 A across the listed frame sizes. The same document shows an output-frequency range up to 1600 Hz, ambient temperature at nominal data of 40°C, and housing dimensions that scale through widths of 50 mm, 70 mm, and 130 mm with heights of 215 mm and 268 mm and a depth of 196 mm. That combination makes HCS01 a strong fit when a machine needs a compact converter for lower to moderate axis demand while staying inside the IndraDrive architecture.
From a buying standpoint, HCS01 is the part of the family that usually makes sense when cabinet space is tight and the application does not require the larger current reserve of HCS02 or HCS03. It gives buyers a smaller physical package but still keeps the voltage class, control voltage structure, and cabinet integration style associated with the IndraDrive platform. That matters because replacement by exact family and type code is often the simplest way to get a machine back online quickly.
Example Parts
HCS01.1E-W0008-A-03-B-ET-EC-NN-NN-NN-FW

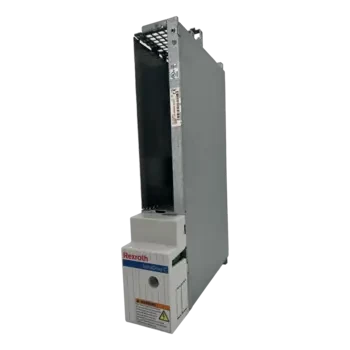

HCS02 Rexroth Indramat IndraDrive C Drive Controllers
HCS02 steps up into a stronger compact-converter class for single-axis motion applications that need more current, more DC bus power, and more headroom than HCS01 provides. In the uploaded HCS02 project-planning material, the series is listed for both 1 x AC 200 to 250 V ±10% and 3 x AC 200 to 500 V ±10% mains operation, with mains frequency of 50 to 60 Hz ±2. The same documentation shows continuous mains input current values of 6 A, 13 A, 19 A, and 30 A across the HCS02.1E-W0012, W0028, W0054, and W0070 frames. The inverter data lists maximum output current values of 11.5 A, 28.3 A, 54 A, and 70.8 A, while continuous output current at 4 kHz is listed at 4.5 A, 12.0 A, 20.6 A, and 28.0 A. The DC bus section lists rated power at 400 V AC without a mains choke at 2.1 kW, 5.1 kW, 7.0 kW, and 9.0 kW, rising with a mains choke to 2.1 kW, 5.1 kW, 10 kW, and 14 kW. Output frequency extends up to 1600 Hz, and the HCS02 documentation also lists forced cooling across the family.
Those numbers put HCS02 in the range where it becomes attractive for more demanding single-axis servo duties and machine sections that need higher current reserve but still benefit from a compact cabinet format. It is a logical choice when a buyer wants more than HCS01 can provide but does not need to move all the way into the heavier HCS03 current classes. For plant owners and maintenance teams, the HCS02 family is often the point where replacement accuracy matters even more, because similar-looking frames can still differ substantially in current handling, DC bus capability, and option code.
Example Parts
The Bosch Rexroth Indramat HCS02.1E-W0028-A-03-NNNN-AA belongs to the HCS IndraDrive Controllers series and features internal air cooling.
HCS03 Rexroth Indramat IndraDrive High-Current Compact Converters
 |
| The HCS03.1E-W0070-A-05-NNBV drive controller operates at 3 x AC 400 - 500 V and supports a continuous input current of 50 A. It features a high short circuit rating of 42,000 A. |
HCS03 is the high-current end of the IndraDrive C compact-converter line and is intended for applications where current demand and DC bus power are well beyond the HCS02 range. In the uploaded HCS power-units document, HCS03 models are listed as HCS03.1E-W0070, W0100, W0150, and W0210 variants with continuous current values of 45 A, 73 A, 95 A, and 145 A and maximum current values of 70 A, 100 A, 150 A, and 210 A. The same document gives DC bus continuous power without and with choke as 13/25 kW, 24/42 kW, 34/56 kW, and 42/85 kW, while maximum output without and with choke is listed as 20/40 kW, 33/59 kW, 54/89 kW, and 68/124 kW. Mains voltage is specified as 3 AC 400 to 500 V with +10% / -15% tolerance, and continuous input mains current is listed at 50 A, 80 A, 106 A, and 146 A. The same section shows DC bus capacitance values of 940 µF, 1,440 µF, 1,880 µF, and 4,700 µF, along with mechanical widths of 125 mm, 225 mm, 225 mm, and 350 mm, a height of 440 mm, a depth of 315 mm, and weights from 13 kg to 38 kg.
That makes HCS03 the right choice when the application needs a single-axis compact converter with substantially higher current and power capability while still remaining inside the IndraDrive C family. It is the family buyers look at when smaller HCS units are no longer enough for the demanded load profile, input current, or braking behavior. For procurement and engineering teams, HCS03 replacement work is also where exact type-code matching becomes especially important because these units sit in the heavy-current section of the platform and often support more critical machine motions.
Example Parts

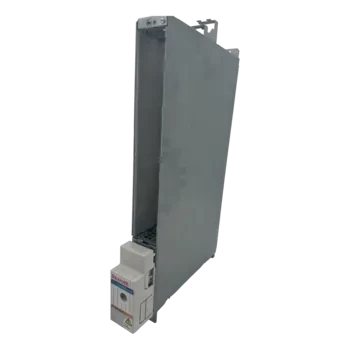

HMD01 Rexroth Indramat IndraDrive M Double-Axis Inverter Sections
HMD01 is the modular double-axis part of the IndraDrive M platform and is intended for architectures built around a shared DC bus rather than a self-contained line-fed compact converter. In the uploaded HMD01 manual, HMD01.1N-W0012, W0020, and W0036 are listed with a rated input voltage range of DC 254 to 750 V, a rated control voltage input of 24 V DC ±20%, and output-current classes of 6.9 A, 10.0 A, and 20.0 A. The same manual shows an output voltage of 3 x AC 0 to 530 V, an output-frequency range of 0 to 800 Hz, and power dissipation values of 2 x 95 W, 2 x 135 W, and 2 x 205 W. Physical dimensions are listed with a height of 440 mm, depth of 262 mm, widths of 50 mm and 75 mm depending on model, and weights up to 7.5 kg.
The practical advantage of HMD01 is that it gives users a modular two-axis inverter section for shared DC bus systems. Instead of choosing a self-contained compact converter for each axis, the machine can be structured around supply modules and modular inverter sections. That makes HMD01 a strong fit when a builder or end user wants a two-axis configuration inside an IndraDrive M electrical architecture. For replacement buyers, it is important to match not only the HMD01 type code but also the associated supply and system layout, because the power section relies on the broader DC bus system around it.
Example Parts
The HMD01.1N-W0012-A-07-NNNN double-axis inverter by Bosch Rexroth offers a nominal DC bus voltage of 700VDC.
HMV01 Rexroth Indramat IndraDrive M Supply Units
HMV01 supply units sit on the DC bus side of the IndraDrive M platform and provide the infeed or regenerative supply function for modular systems. In the uploaded HMV01 manual, the HMV01.1E infeeding models are listed with 3 x AC 380 to 480 V input, ±10% input-voltage tolerance, 50 to 60 Hz input frequency, 24 V DC ±5% control voltage input, and rated input currents of 51.0 A, 128.0 A, and 204.0 A for the W0030, W0075, and W0120 frames. The same manual lists output voltage at 435 to 710 V DC and output current values of 69.0 A, 173.0 A, and 276.0 A for those same infeeding units. For the regenerative HMV01.1R family, the uploaded manual lists 3 x AC 380 to 480 V input, 24 V DC ±5% control voltage input, rated input currents of 26.0 A, 65.0 A, 94.0 A, and 181.0 A, and output current values of 24.0 A, 60.0 A, 87.0 A, and 160.0 A, with a regulated DC output of 750 V. The documentation also shows a common height of 440 mm, depth of 262 mm, and widths from 150 mm up to 350 mm depending on frame.
The role of HMV01 is different from the HCS and HMD families because it does not serve as the axis inverter itself. It is the supply side of the modular system. That distinction matters in buying decisions. If the existing cabinet is built around IndraDrive M with a shared DC bus, the HMV01 is a supply decision rather than just another drive-controller decision. It also matters for maintenance because the supply unit selection affects the available DC bus voltage window, output current, and the broader architecture of the machine.
Example Parts
Why Wake Industrial Fits the IndraDrive Lifecycle
Bosch Rexroth Indramat IndraDrive hardware is rarely a one-time transaction. A plant may need to buy a replacement HCS02 for one machine, send an HCS03 out for repair, refurbish an HMD01 for backup inventory, and sell surplus HMV01 stock after a line rebuild. That is why a source that supports buying, repair, refurbishment, and surplus purchasing can be more useful than a source that only handles one side of the process. Wake Industrial fits that full lifecycle model and is a practical option for mixed audiences that include maintenance teams, engineers, plant managers, and purchasing staff.
If you need Bosch Rexroth Indramat IndraDrive hardware for an active machine, a spare-parts strategy, or a cabinet rebuild, Wake Industrial is a source for replacement sales, repair service, refurbishment support, and surplus purchasing. HCS01 covers compact lower-current single-axis needs. HCS02 expands into stronger compact-converter duty. HCS03 handles the high-current end of the IndraDrive C line. HMD01 supports modular double-axis inverter architecture, and HMV01 provides the supply side for IndraDrive M systems. Matching the exact series and type code matters, and Wake Industrial gives buyers a path to source replacement units, restore failed hardware, and recover value from idle IndraDrive inventory. Receive a quote as fast as 15 minutes by calling 1-919-443-0207 or by sending an email to sales@wakeindustrial.com.
