Name: 6410-001-C-N-K
Brand: Pacific Scientific
Price: 455 USD
Availability: InStock
Rating: 4.4 (47 reviews)

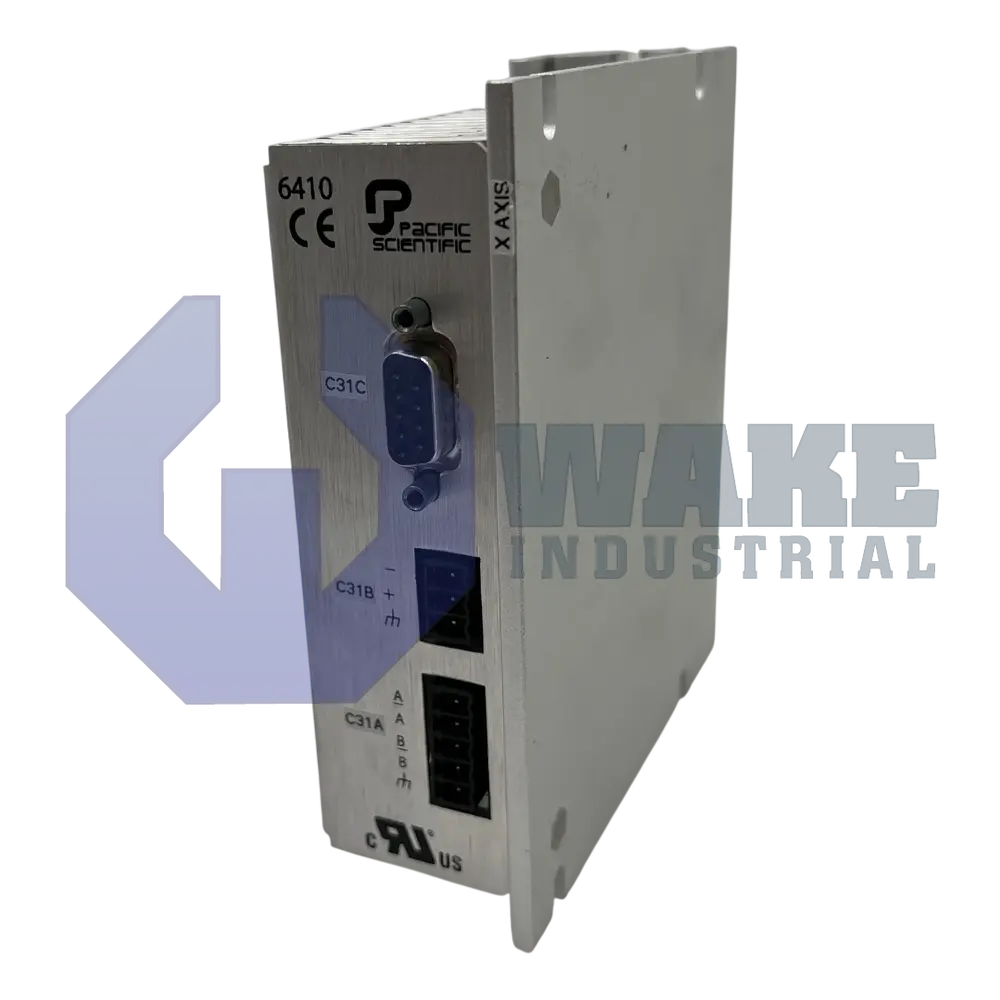

Pacific Scientific 6410-001-C-N-K Main (Front Left) image

Wake Industrial LLC is not an authorized distributor of this product.

Rated 4.4 (47 total ratings)

No Tariffs On US Orders

Rated 4.4 (47 total ratings)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Preparing your secure checkout page...

The Pacific Scientific 6410-001-C-N-K is part of the 6410 Stepper Drives series and provides a max output current of 5 Amps RMS with a peak current of 7.1 Amps. This drive operates with a supply voltage range of 24 to 75 VDC and can achieve a maximum step rate of 2.0 MHz. The unit includes a cover and measures 1.50 inches wide, 5.00 inches high, and 4.30 inches deep.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Request a Replacement Request a Repair Quote Both

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The 6410-001-C-N-K microstepping drive is produced by Pacific Scientific within the 6410 Stepper Drives series. It supplies and modulates current to two-phase hybrid stepper motors so motion controllers can position axes with fine incremental resolution in automated assembly, pick-and-place equipment, and semiconductor tooling lines. By chopping the DC bus with a fixed carrier, the unit shapes motor phase current and maintains stable torque while occupying limited panel space.

The internal current regulator switches at 20 kHz, a rate high enough to push the switching band above audible frequencies and flatten ripple in the motor windings. Continuous phase current is adjustable from 0.625 A RMS up to 5 A RMS, allowing a single drive type to serve both small and mid-frame motors. The power stage accepts unregulated supplies between 24 Vdc and 75 Vdc, so it can run from low-voltage control buses or higher-energy sources used in multi-axis cabinets. Because a heat sink is not included, the drive must be mounted directly to the chassis for conduction cooling, and its dimensions are 5.00 in in height, 4.30 in in depth, and 1.50 in in width. A protective cover is factory-fitted to shield the electronics during installation.

For fine positioning, the microstep generator supports 51,200 steps/rev, giving motion controllers a linear increment of 0.007 degrees on a 200-step motor. Incoming step pulses can reach 2.0 MHz, so even at the maximum divisor the drive does not limit high-speed moves. During rapid acceleration, the current limit rises to 7.1 A Peak for short intervals, delivering additional torque before the circuit returns to the programmed RMS level. Thermal supervision halts output if the chassis surface exceeds 60 °C, while normal operation is specified up to a 50 °C ambient temperature. This operating margin supports the use of enclosure airflow or external heat sinks when the drive is used near its current limit.

View Datasheet

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Chopper frequency
20 kHz

Cover
Included

Depth
4.30 in

Heat sink
Not Included

Height
5.00 in

Max Ambient Temp
50 °C

Max Chassis Temp
60 °C

Max Output Current
5 A RMS

Max Resolution
51,200 steps/rev

Max Step Rate
2.0 MHz

Max Supply Voltage
75 Vdc

Min Output Current
0.625 A RMS

Min Supply Voltage
24 Vdc

Peak Current
7.1 A Peak

Width
1.50 in

6410 001 C N K
6410-001-c-n-k
6410/001/C/N/K
6410001CNK
641O-OO1-C-N-K

Error / Symptom	Likely Cause	Recommended Fix
Output-overcurrent fault – drive “Enabled” output drops as soon as power is applied	Line-to-line or line-to-neutral short on the motor phases	Isolate and meg-ohm-test motor and cable; repair or replace damaged wiring, then power-cycle the drive.
Bus over-voltage fault – drive disables when DC bus > 75 V DC	Regeneration or incorrect transformer/PSU sizing pushes bus above 75 V	Add dynamic-brake (regen) clamp or larger bulk capacitance; verify transformer secondary so peak bus < 75 V.
Bus under-voltage fault – drive will not enable	Supply below the 24 V DC minimum	Measure supply; correct wiring or raise PSU voltage until 24-75 V range is met.
No torque, meter reads high	Enable opto not driven (J6 5-6 jumper out) or drive in fault state	Re-install J6 5-6 or drive opto with ≥ 3 mA; clear fault and recycle power.
No torque, meter reads low	Motor-current DIP-switches (S1-6/7/8) set incorrectly or open motor wiring	Set correct current per motor rating; re-seat and continuity-check motor cable.
Motor has holding torque but will not turn	STEP pulses missing, too narrow, or rejected by input timing	Verify indexer is issuing valid step and ground; if needed, widen pulse width or disable step filter (remove J6 1-2).
Motor rotates the wrong direction	DIRECTION polarity incorrect or A/Ā phases swapped	Correct DIRECTION logic before STEP; alternatively swap A+ / A– leads.
Doesn’t reach commanded position / stalls	Undersized supply (bus sag), resonance, or insufficient torque	Raise bus voltage, choose finer micro-step, enable Mid-Band Compensation (S1-4 OFF), and re-check sizing.
No response at high step rates	Step filter limits max frequency to 500 kHz when J6 1-2 installed; narrower pulses rejected	Remove J6 1-2 to reach 2 MHz, or reduce indexer frequency; ensure pulse ≥ 1 µs with filter enabled.
Drive stays disabled after power-up	Enable-sense jumper (J6 5-6) set opposite to system logic	Move J6 5-6 to the required sense (IN = active-low, OUT = active-high) and retest.

Part Number	Drive / Control style	Input Power	Phase Current (RMS / peak)	Micro-step choices	Stand-out features
6410-001-C-N-K	Driver-only micro-step drive (step/direction)	24 – 75 V DC	0.625 – 5 A / 7.1 A pk (switch-set)	200 – 51 200 steps/rev (binary & decimal)	Digital Electronic Damping, idle-current reduction, ≤ 2 MHz step input
6410-006-N-N-N	Same electronics as 6410-001 but “N-N-N” = no cover / no heatsink (bare-board OEM)	24 – 75 V DC	0.625 – 5 A / 7.1 A pk	200 – 51 200 steps/rev	Lightest package in family; ideal for cabinet airflow or custom heatsink mounting
6415-001-C-N-K	Oscillator + drive (on-board pots for run-speed, accel/dec)	24 – 75 V DC	5 A RMS / 7.1 A pk	200 – 51 200 steps/rev (plus analog VCO mode)	Standalone jog or velocity applications; retains all 6410 damping & fault logic
6420-001-N-K	Indexer / drive (RS-232/422/485, mnemonic program)	24 – 75 V DC	0.625 – 5 A / 7.1 A pk (DIP-set)	Fixed (200–51 200) or variable-0.01-step modes	1.8 kB NVRAM program memory, eight bi-directional I/O, can master a slave 6410
6430-001-K-N	Off-line micro-step drive with integral 120/240 VAC supply	120 / 240 VAC 50–60 Hz	0.625 – 5 A / 7.1 A pk (internal 66 V DC bus)	200 – 51 200 steps/rev	Built-in power supply, spare 66 V DC feed for second axis; same damping & idle-current options

Part Number

Fault / Error Condition	Typical Root Cause
Output-overcurrent / short-circuit fault	Phase-to-phase or phase-to-ground short on the motor leads disables drive immediately.
DC-bus over-voltage	Regenerative energy or oversized supply pushes bus > 75 V DC.
DC-bus under-voltage	Supply < 24 V DC or wiring drop; drive never enables.
Motor cable short to case	Line-to-neutral short detected at power-up or during motion.
Motor winding open / loose connector	“No-torque, meter low” symptom when one phase is open.
Enable-input not satisfied	J6 5-6 jumper set opposite to system logic or opto not driven, leaving drive disabled.
Invalid or missing STEP pulses	Noise-filtered pulses < 1 µs (filter on) or > 2 MHz (filter off) are rejected, so motor holds but won’t turn.
Direction polarity error	DIRECTION level changes too late or is inverted, causing reverse motion.
Step-size mismatch / lost steps	Indexer step resolution differs from drive DIP setting, so final position is off.
Mid-band stall / insufficient torque	Undersized power-supply voltage or damping disabled lets motor stall at mid-range speeds.

Frequently Asked Questions about 6410-001-C-N-K:

Q: What is the maximum output current for the Pacific Scientific 6410-001-C-N-K stepper drive?

A: The 6410-001-C-N-K stepper drive can deliver a maximum output current of 5 A RMS.

Q: What is the maximum supply voltage supported by the 6410-001-C-N-K stepper drive?

A: The drive supports a maximum input supply voltage of 75 Vdc.

Q: What is the highest step resolution offered by the 6410-001-C-N-K drive?

A: This model features a maximum resolution of 51,200 steps per revolution.

Q: Is a heat sink included with the Pacific Scientific 6410-001-C-N-K stepper drive?

A: The 6410-001-C-N-K does not include a heat sink with the unit.

Q: What is the chopper frequency of the 6410-001-C-N-K model?

A: The chopper frequency for this drive is set at 20 kHz.

Internal Product Review

‘‘The 6410-001-C-N-K is a Pacific Scientific stepper drive that presents a well-executed option for precise motion control. A 20 kHz chopper frequency and 51,200 steps/rev maximum resolution support smooth current regulation and fine positioning performance. A 2.0 MHz maximum step rate and 5 A RMS output current make this drive especially appealing for fast, capable indexing applications.’’
