6410-001-N-N-K Pacific Scientific
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees

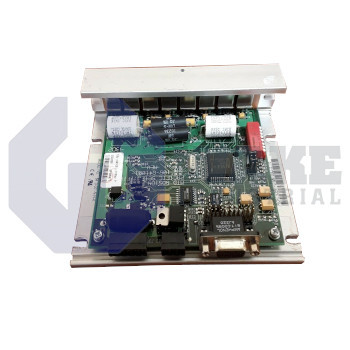

The Pacific Scientific 6410-001-N-N-K is a stepper drive in the 6410 Stepper Drives series, featuring a peak phase current of 7.1 Amps and a rated phase current of 5 Amps RMS. It has a maximum step rate of 2 MHz, a chopper frequency of 20 kHz, and measures 5 by 1.5 by 4.3 inches. The unit weighs 1 pound and operates with a maximum chassis temperature of 60°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The 6410-001-N-N-K is a single-axis stepper drive produced by Pacific Scientific as part of the 6410 Stepper Drives series. It converts step and direction signals from a motion controller into phase-modulated current for two-phase hybrid stepper motors used on positioning tables, dispensers, and small gantries. By chopping the DC bus internally, the unit regulates winding current without an external heat sink and fits compactly into control enclosures. This arrangement allows the drive to serve as a compact interface between low-level motion commands and the higher current demanded by a stepper motor.
An internal chopper operates at 20 kHz, high enough to move switching noise outside most audible ranges while keeping current ripple low. The drive accepts step commands up to 2 MHz, allowing microstepped resolutions when paired with fine pulse generators. Each incoming pulse must be at least 250 ns wide, and the controller must hold the direction line stable for 50 µs before issuing the first step. This direction setup time helps prevent miscounts when reversing. Phase windings can draw up to 7.1 A peak during acceleration, while continuous operation is limited to 5 A rms. Logic I/O uses a 9-socket D-sub miniature connector, and the enabled output saturates at 0.5 V when sourcing 2 mA so downstream status circuits can detect a clear low state. These signal and current limits make the drive suitable for pulse-based motion systems that need predictable timing behavior.
An overvoltage fault trips if the bus rises to 83 Vdc, protecting the internal power stage during regeneration. When the motor is idle, the drive automatically cuts current by 50%, lowering heat dissipation and reducing unnecessary motor heating during dwell periods. Safe operation requires the chassis temperature to stay below 60 °C, so cabinet airflow must remove the generated heat. The aluminum housing measures 5 × 1.5 × 4.3 in and weighs 1 lb, which helps conserve panel space when several axes are installed in the same enclosure. Its compact body also makes side-by-side mounting more practical in dense control cabinets.
Frequently Asked Questions about 6410-001-N-N-K:
Q: What is the highest step rate supported by the 6410-001-N-N-K stepper drive?
A: The 6410-001-N-N-K stepper drive supports a maximum step rate of 2 MHz, enabling fast command inputs for precise motor control.
Q: What is the rated phase current for the 6410-001-N-N-K?
A: This model provides a rated phase current of 5 A rms to the stepper motor during continuous operation.
Q: What is the idle current reduction percentage for the 6410-001-N-N-K stepper drive?
A: Idle current reduction for this stepper drive is set to 50%, reducing energy usage when the motor is inactive.
Q: At what voltage does the bus overvoltage fault activate on the 6410-001-N-N-K?
A: The bus overvoltage fault for this drive is triggered at 83 Vdc, offering protection for overvoltage situations.
Q: What type of signal connector does the 6410-001-N-N-K use?
A: The signal connector for this product is a 9 socket D-sub miniature, allowing for compatible interface connections.
