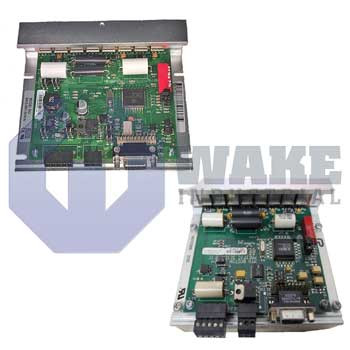

The Pacific Scientific 6410 is a two-phase stepper drive that converts STEP and DIRECTION command inputs into regulated motor phase currents for controlling a two-phase stepper motor.
It uses a bipolar chopper, PWM current-regulated output stage operating around 20 kHz to control winding current while reducing acoustic noise and improving current regulation at higher back-EMF conditions. The drive supports switch-selectable microstepping (from full step down to very fine microstep resolutions) and includes a digital electronic damping function intended to mitigate mid-band instability that can otherwise cause torque loss or stalling in open-loop stepper systems. Output current is set by DIP switch to match the motor winding rating, with selectable phase current settings spanning approximately 0.625 A RMS up to 5.0 A RMS, and it operates from a single 24–75 VDC supply. For integration, the 6410 provides optically isolated STEP/DIR/ENABLE inputs and an “enabled” status output, along with features such as idle current reduction, step input filtering, and fault shutdown for conditions like output short circuit, bus overvoltage, or low supply voltage.
