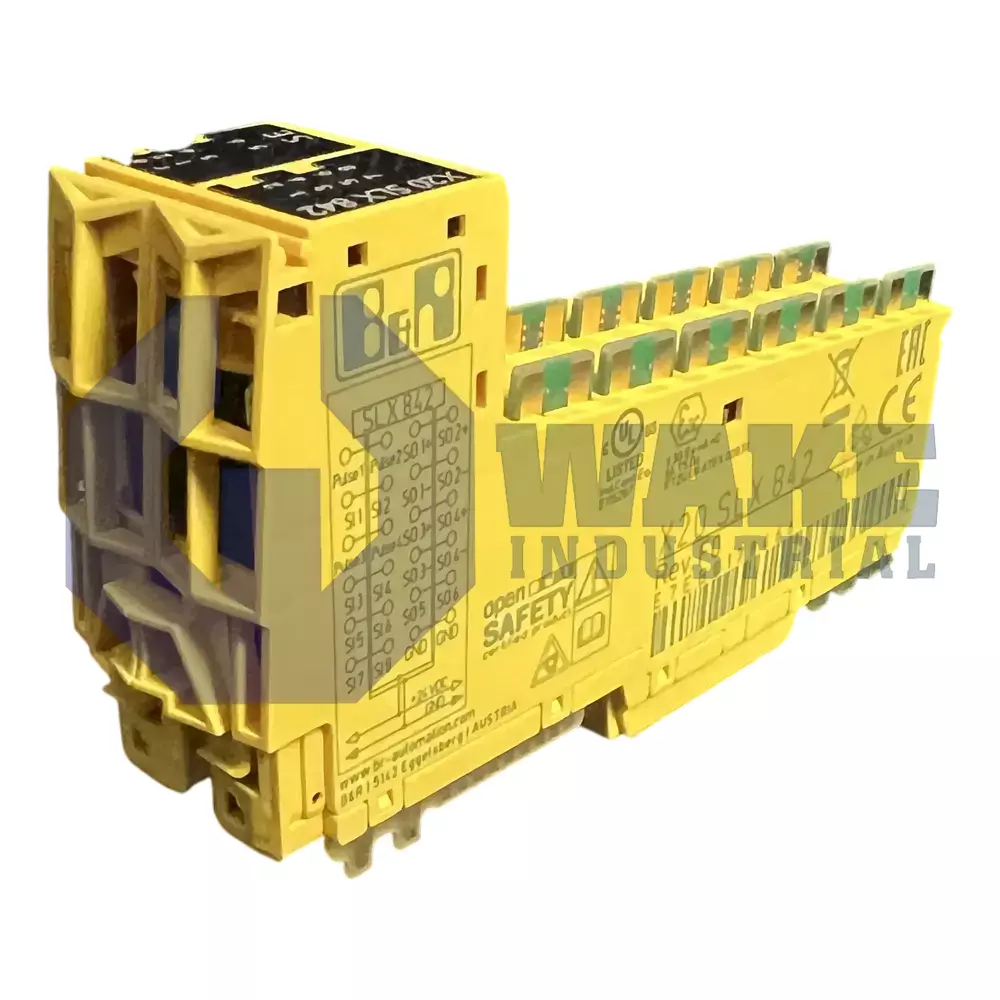

The B & R Automation X20SLX842 is part of the X20 Fieldbus Input Output Series and features the openSAFETY controller. This secure digital mixed module includes 8 secure digital inputs Type A and safemotion axes support for up to 4 axes. It also has 10 safenodes for enhanced safety and a safety cycle time of less than 150 microseconds.

Quote Request Form:

Warranty
Wake Industrial Warranty
To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

The X20SLX842 is an advanced I/O module by B&R Automation designed for safety applications. It comes equipped with eight safe digital inputs of Type A, suited for a 24 VDC input voltage. It also features four pulse outputs that are designed to deliver a nominal output current of 50 mA. This makes the module well-suited for various applications. The module is designed to offer flexibility in system configuration to match different user and application needs. It can handle line lengths of up to 60 meters for unshielded lines and 400 meters for shielded lines, providing flexibility in installation and set up.

The X20SLX842 features a customizable blackout mode, allowing for programmable functionality tailored to specific user needs. This mode operates at the module level, ensuring that the system can be configured to maintain essential operations even during power interruptions. The module also supports standalone mode, which enables it to function independently without relying on a central controller. The module offers a robust I/O power supply that operates with a nominal voltage of 24 VDC. The module is equipped with integrated reverse polarity protection to help safeguard against potential damage from faulty wiring.

This module allows for easy integration into various system configurations. Users can mount it horizontally or vertically based on their specific setup requirements. It also allows use in both very hot and cold operating conditions, functioning optimally in environments that have a temperature range between 0 to 60°C. The module complies with EN 60529 standards for ingress protection with an IP 20 rating. This provides efficient performance in various operating conditions. Wake Industrial offers this B&R I/O module with a warranty coverage of one year.

Controller
openSAFETY
Digital Pulse Outputs
4, 24 VDC
Safemotion Axes
4
Safenodes
10
Safety Cycle Time
<150 μs
Secure Digital Inputs Type A
8
Secure Digital Outputs Type A
4, 24 VDC, 3 A, OSSD <500 μs
Secure Digital Outputs Type B2
2, 24 VDC, 50 mA, OSSD <500 μs
Type
Secure Digital Mixed Module
Symptom / LED indication* Likely cause Recommended corrective action
FAILSAFE LED solid red immediately after boot Entire module in FailSafe state after a safety error Open SafeDESIGNER ➜ read last diagnostic entry; correct wiring / network fault, then clear the safety error & warm-restart the controller
FAILSAFE LED blinks 1 Hz indefinitely openSAFETY channel invalid (SafeOS ≠ RUN) Check POWERLINK cabling and that every safety node is powered and in RUN; verify node configuration CRCs
CPU STATUS LED blinks 0.5 Hz orange SafeDESIGNER is in Debug / STOP mode Exit Debug, switch application to RUN, or store a RUN project to the SafeKEY
STATUS LED blinks 1 Hz orange at power-up No application stored on SafeKEY Download safety project, or insert the correct SafeKEY dongle, then reset
SafePLC cannot be reached from Automation Studio Controller is booting / updating or IO power missing Wait until boot LEDs finish, check X2X supply, confirm the CPU is not in firmware-update mode
PowerLINK LED red; safe nodes offline Network cable / topology fault Inspect RJ45 & hub wiring, replace damaged cable, verify ring/line topology
SKEY LED blinks orange continuously Repeated SafeKEY access – dongle loose Reseat SafeKEY, inspect contacts; if worn, replace SafeKEY and reload licence
Module overheats (> 70 °C) → “Temp !!!” on text display Ambient temp too high, vent slots blocked Improve cabinet ventilation; if optional clip-on fan is fitted, verify airflow
24 V LED off / spontaneous resets Logic supply < 20.4 V or noisy PSU Adjust 24 V PSU, separate safety CPU feed from inductive loads, add ferrite
Battery-low warning at start-up 3 V lithium cell depleted → SRAM at risk Replace battery while powered to keep remanent data; restore project if SRAM lost
Model Safety CPU type Safe I/O on-board Max safe nodes¹ Network interface Distinctive use-case
X20SLX842 (baseline) SafeLOGIC-X (uses host X20 CPU) 8 DI, 4 DO (3 A), 2 DO (50 mA) 11 openSAFETY / POWERLINK Compact “all-in-one” SIL 3 controller + I/O
X20SLX844 SafeLOGIC-X 12 DI, 4 DO (3 A) 20 openSAFETY / POWERLINK Higher I/O density for larger cell controls
X20SLX402 SafeLOGIC-X 4 DI, 2 DO 6 openSAFETY / POWERLINK Ultra-compact slice; ideal for small guard-door stations
X20SLX806 SafeLOGIC-X 8 DI (type A) 10 openSAFETY / POWERLINK Input-only safety slice for sensor clusters
X20SLX811 SafeLOGIC-X 8 DI, 4 DO 11 openSAFETY / POWERLINK Coated version for harsh/condensing atmospheres
X20SL8100 SafeLOGIC (stand-alone CPU) — (no local I/O) 20 / 100² POWERLINK hub + SafeKEY Central high-capacity safety-PLC for multi-rack lines
Error / LED indication Meaning
7005 – Power-supply undervoltage 24 V logic feed < 20.4 V
7006 – Module not found Slice expected in project is missing
7007 – I/O configuration mismatch Firmware/project versions don’t match hardware
SE LEDs red (steady) Both safety processors in FailSafe → defective module
FIL LEDs light after SafeKEY removal SafeKEY missing → controller forced to BOOT
“SafeIO modules swapped” entry Module order changed since last checksum
Battery-low warning (DC LED red) Backup lithium cell below limit
Fatal error (red Error LED on) PSU or temperature outside limits
PREOP blink (green fast / red off) Slot configured for wrong module or none
Firmware file missing – logger shows “fw file missing” Firmware image corrupted on module

Frequently Asked Questions about X20SLX842:

Q: How many inputs does the X20SLX842 offer?

A: The X20SLX842 features 8 safe type A digital inputs, allowing for comprehensive monitoring and control of various safety-related applications.

Q: What types of outputs does the X20SLX842 provide?

A: The X20SLX842 offers 4 pulse outputs and 4 safe type A digital outputs, each with a nominal output current of 50 mA. This allows for effective control of actuators and other devices.

Q: What is the nominal voltage for the X20SLX842?

A: The nominal voltage for the X20SLX842 is 24 VDC, with a permissible voltage range of 24 VDC -15% / +20%.

Q: How does the X20SLX842 handle blackout scenarios?

A: The X20SLX842 includes a programmable blackout mode, allowing the module to maintain operation during power outages or interruptions.

Q: What are the mounting options for the X20SLX842?

A: The X20SLX842 can be mounted both horizontally and vertically, providing flexibility in installation.
