EEA-PAM-513-A-14

Name: EEA-PAM-513-A-14
Brand: Vickers
Price: 365 USD
Availability: InStock
Rating: 4.5 (13 reviews)

Rated 4.5 (13 total ratings)

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 3-5 Days

Preparing your secure checkout page...

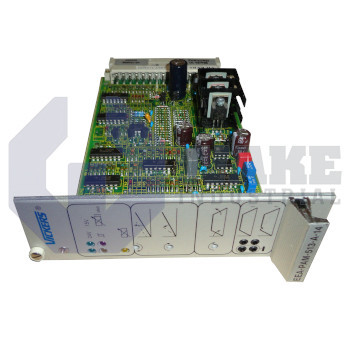

EEA-PAM-513-A-14 Power Amplifier Card Series for Electrohydraulic Proportional Throttle Valves manufactured by Vickers. This EEA-PAM-513-A-14 Card is For Proportional Valve KCG-3 and has a Power (Input) Supply of 24V DC nominal.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The EEA-PAM-513-A-14 is a power amplifier card produced by Vickers. It has been designed for proportional hydraulic valve control. Vickers has established a trustworthy reputation among automation customers globally because it understands their specific needs. For the EEA-PAM-513-A-14, the company improved the supply voltage in addition to adding low supply voltage safety protection. The ramping of the power amplifier card cannot be affected by the gain adjustment. Vickers has also added monitoring points to the card’s edges. Also, the EEA-PAM-513-A-14 features dead-band compensation on the front of the panel.

For fast and easy access, Vickers has placed the spool position points, common ground signal, and conditioned command signal together. The EEA-PAM-513-A-14 is a combination of the most recent technologies (amplification, processing and signal automation) in a single modular solution. The modular designs make it possible to easily insert up to 7 power amplifier cards into the mainframe. This offers 2 backup channels and 1 main amplification card channel for redundancy. Every channel comes with a complete library of filter options. You can also use the mainframe to provide house, power, and configure using dual software channel line output cards.

The EEA-PAM-513-A-14 is integrated with many technologies in a single compact Vickers form factor. This makes Vickers power amplifier cards the ideal solution for everyday installations and life safety systems. The EEA-PAM-513-A-14 has been designed for easy incorporation into any life or fire safety system. It can also enter Power-Save Mode, where all the power amplifier cards are turned off except required for an emergency message. For instance, the Power-Save Mode is beneficial in saving on battery or backup power supply drain after the main power is lost.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Ambient temperature
0 to 50 °C

Amplifier shut-down
<19V DC

Compatible Proportional Valve
KCG-3

Control (Output) Supplies
+15V x 50 mA max. in addition to LVDT demand

Power consumption
40 W

Power Supply
24 VDC

Product type
Amplifier

Ramp Acceleration/Deceleration
50 ms to 2 s

Series
EEA-PAM-5**-A-14

Weight
200 g

EEA PAM 513 A 14
EEA-PAM-5l3-A-l4
EEAPAM513A14

Symptom / LED Indicator	Likely Cause (What it Means)	Recommended Corrective Action
Green “24 V” LED off	No or low supply (card needs 20 – 34 V DC, 40 W)	Check cabinet power supply, polarity and fuse; restore 24 V then re-test.
Green “15 V” LED off	On-board logic rail missing	If 24 V is present, replace regulator section or card.
Yellow “Output enabled” LED dark although z24 is > +10 V	“Drive enable” link missing / < 6 V	Check the enable source on pin z24; repair wiring or PLC output.
Red “Overload” LED lit	Solenoid current > 1.8 A (short or wrong coil)	Measure coil resistance against catalogue, inspect cable for shorts; overload resets automatically when fault cleared.
Command signal present but no pressure change	Set-minimum or gain* turned fully CCW*	Read conditioned command at monitor-pin b18; readjust set-minimum and gain to specs.
Valve jerks, ramp pot ineffective	Ramp circuit bypass link b12-b20 closed	Remove link (open circuit) or use remote switch for ramp enable.
Output drifts when ambient warms	PCB temperature drift / poor shielding	Allow 15-min warm-up; re-zero “set-minimum”; separate signal wiring from power cables.
PWM dither absent (unstable spool)	Factory dither jumper removed	Re-install factory jumper or enable dither in test jack (consult ML-9046 guide).
Ramp time wrong after card swap	Pot still at 20 ms factory setting	Turn ramp pot clockwise to desired 0.02 – 2 s; verify with pressure gauge.
Low-supply protection trips below 19 V	Undersized 24 V PSU or long cable run	Upgrade PSU to ≥ 40 W and keep ripple < 4 V p-p; use thicker cable to reduce drop.

Model	Intended Valve Family	Input Signal Options	Ramp Generator	Feedback / Diagnostics	Max Solenoid I (A)
EEA-PAM-513-A-14	KCG-3 pressure valves	0–10 V (4 ×) \| 0–20 mA (1 ×)	Single, 20 ms – 2 s	Over-temp, overload LEDs	1.8
EEA-PAM-511-A-14	KDG4V-5 flow valves	0–10 V (2 ×)	None (fast response)	Overload LED	1.8
EEA-PAM-512-A-14	KDG4V-2 pressure/flow	0–10 V (2 ×) \| 0–20 mA (1 ×)	Single, 50 ms – 3 s	Low-V, overload LEDs	1.8
EEA-PAM-561-A-14	KDG5V-5/7 spool (LVDT)	±10 V (1 ×)	Dual, independent ↑/↓ ramps	LVDT-fail, overload LEDs	1.8
EEA-PAM-571-A-14	KFDG5V servo spools	±10 V (1 ×) + ±15 V ref.	Quad-ramp (each quadrant)	LVDT, overload, watchdog LEDs	2.5
EEA-PAM-581-A-14	Double-feedback valves	±10 V (1 ×)	Quad-ramp (with quadrant detect)	Dual LVDT-fail, overload LEDs	2.5

Indicator / “Code”	What it Means
Green “24 V” LED off	No or low 24 V DC supply reaching the card
Green “15 V” LED off	On-board logic rail missing → internal regulator fault or card defect
Yellow “Output-enabled” LED dark (z24 > +10 V expected)	Drive-enable line inactive (< 6 V) – wiring / PLC output open
Red “Overload” LED lit	Solenoid current > 1.8 A (shorted coil or wrong valve type)
Low-supply protection trips below ≈ 19 V	Undersized or unstable 24 V PSU; card shuts itself down to protect electronics
No pressure/flow change with command present	“Set-minimum” or “Gain” pots turned fully CCW (zero output)
Ramp pot has no effect / valve jerks	Ramp-bypass link (b12–b20) left closed – ramp generator disabled
PWM dither absent – spool sticks	Factory dither jumper removed or disabled, causing static friction
Output drifts with temperature rise	PCB-temperature drift; card needs 15-min warm-up & re-zero; improve shielding
Set ramp time incorrect after card swap	Replacement card still at 20 ms factory default; adjust ramp pot to 0.02–2 s range

Frequently Asked Questions about EEA-PAM-513-A-14:

Q: What are some of the amplifier features?

A: Amplifier features include front panel with adjustments, LED display and monitor points.

Q: What are new features on the 14-design?

A: New features include wide input voltage range, low input voltage protection, and additional points.

Q: What are the installation dimensions?

A: The dimensions are: 122.4 mm height, 40.3 mm width, and 175.24 mm depth.

Q: What type of mating connector can you use?

A: You can use a F32 or F48 female mating connector.

Q: How can you measure the command signal?

A: Monitor points on the front panel of the amplifier allow measurement of the conditioned command signal and solenoid current.

Internal Product Review

‘‘The Eaton Vickers EEA-PAM-513-A-14 is a reliable and robust amplifier for industrial proportional pressure valve control. The 24 VDC and operating temperature range of 0 to 50 °C means it its dependable in many industrial set ups.’’
