EEA-PAM-581-D-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}

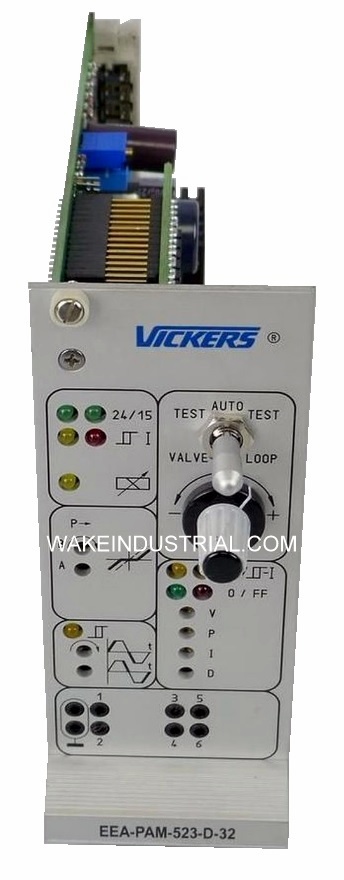

Power Amplifier with PID Module manufactured by Vickers. This EEA-PAM-581-D-32 Card is For Proportional Valve KHDG5V-5/7/8 and has a Power (Input) Supply of 24V DC.

EEA-PAM-581-D-32

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
Power Amplifier with PID Module manufactured by Vickers. This EEA-PAM-581-D-32 Card is For Proportional Valve KHDG5V-5/7/8 and has a Power (Input) Supply of 24V DC.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a EEA-PAM-581-D-32 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The EEA-PAM-581-D-32 power amplifier from Eaton is integrated with user-configurable PID modules that support closed-loop and feed-forward operation. The amplifier comes with nine DIL switches and potentiometers that can be adjusted in different combinations based on the application it is used for. The unit is CE Certified. It is meant for use with the set of KHDG5V-5/7/8 valves from the manufacturer. The device has 47 kilo Ohms analog voltage input impedance and 100 Ohms analog current input impedance.

The amplifier has a reference voltage ranging between -10V and +10V, as well as a 15V output control supply. The unit is equipped with a drive signal zero indicator and a ramp active indicator. It also supports alarm output as the drive output status. The alarm can be set by enabling the amplifier on one of its pins about 500ms after switching on the power supply. The sensor signal offset can range anywhere between -10% and +10% while its gain ranges between 90% and 120%. The power amplifier is marketed under the Vickers brand name. It is available with a warranty period of one year.

The output from the ramp generator has greater than or equal to 5 kilo Ohms while the feedback signal has greater than or equal to 10 kilo Ohms. The alarm can be reset after failure by disabling and re-enabling it. The alarm output signal is set to HIGH when the current rating is a maximum of 50mA and the alarm is activated. The signal is set to LOW in the case of a solenoid overload. The power amplifier has an ambient storage temperature range between -25°C and +85°C. Sensor failure at the digital output can be the result when the feedback does not match demand. The power amplifier can be shipped to any address in the world through our wide delivery network.

  • EEA PAM 581 D 32
  • EEA-PAM-58l-D-32
  • EEAPAM581D32

EEA-PAM-581-D-32 Technical Specifications

Control (Output) Supplies:
Series: EEA-PAM-5**-D-42
For Proportional Valve: KHDG5V-5/7/8
Power (Input) Supply: 24V DC
Control (Output) Supplies: +15V for LVDTs only
Reference voltages: +/- 10V
