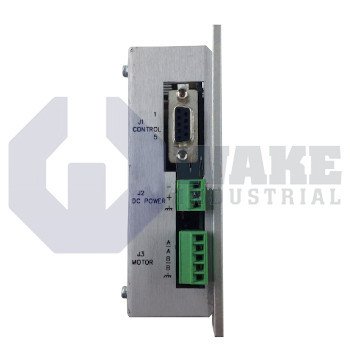

6410 Series Stepper Drive manufactured by Pacific Scientific. This Stepper Drive features a Power Level of 7.1 A peak, 5 A rms 24-75 Vdc along with a Customization Number of Standard Unit.
✓ In-Stock!

6410-001-N-N-N

  • Rated 4.5 (24 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships Today
  • Call for Expedited Shipping and Product Condition Options
6410 Series Stepper Drive manufactured by Pacific Scientific. This Stepper Drive features a Power Level of 7.1 A peak, 5 A rms 24-75 Vdc along with a Customization Number of Standard Unit.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

6410-001-N-N-N is manufactured by Pacific Scientific and helps in converting step and the direction input. This gets converted in the motor winding currents. This helps in controlling the two-phase stepper motor. The product is available with some unique features described below:

Idle Current Reduction – Also referred to as ICR, this helps in enabling or disabling idle current reducing. The feature helps in reducing motor winding current by as much as 50% of the rated value which is through the motor dwell period. ICR starts at 0.1 second just after the last input step pulse. Such a delay can also be set at 0.005 seconds or it can be set at 1 second, which helps in using a plug-on jumper.

Digital Electronic Damping Control – This helps in eliminating loss of torque and also various motor stalling condition when they are operated at the mid-range speed. Such an instability is quite a common phenomenon for the mechanical, magnetic and electronic stepping motor system.

The output current is switch selectable. It ranges from 5ARMS (7.1 APEAK in microstep mode) to 0.625 ARMS (0.88 APEAK in microstep mode). The drive which is present is known to supply phased currents in regulation. The voltage is between 24 and 75 VDC.

Plug-on jumpers are used in the device. It includes the step filter when enabled helps in rejecting the noise pulses on the step input which is quite less than 500 ns wide. It is useful in case the maximum step rate is 500 kHz. Enable sense allows polarity of enable input. As the jumper is installed, the input opto-isolator is driven to the enable drive.

  • 6410 001 N N N
  • 6410-001-n-n-n
  • 6410/001/N/N/N
  • 6410001NNN
  • 641O-OO1-N-N-N

6410-001-N-N-N Technical Specifications

Drive Type Family: Stepper Drive (6000)
Weight (lb): 1
Power Level: 7.1 A peak, 5 A rms 24-75 Vdc
Functionality: Motor Drive Module
Customization Number: Standard Unit
Cover Option: No Cover
Heat Sink Option: No Heat Sink
Connector Kit Option: No Connector Kit
Number of Power Supplies Used: 1
Applications: Robotics, Packaging Machinery, Labeling Machines

Frequently Asked Questions about 6410-001-N-N-N


Q: What is the maximum chassis temperature of the 6410-001-N-N-N?

A: The 6410-001-N-N-N features a maximum chassis temperature of 60 °C. The chassis must be mounted on to a heatsink or a cooling plate for optinmal thermal performance.

Q: What is the storage temperature of the 6410-001-N-N-N?

A: The 6410-001-N-N-N has a storage temperature ranging between -55 °C and 70 °C. It is recommended not to store the drive at a temperature below or higher than the temperature specified by the manufacturer.

Q: Can the heat sink of the 6410-001-N-N-N be removed?

A: Yes, the heat sink of the 6410-001-N-N-N can be removed. The heat sink can be removed from eitehr the side or the rear.

Q: What is the idle current reduction feature of the 6410-001-N-N-N?

A: The idle current feature of the 6410-001-N-N-N allows an automatic reduction in the motor winding current by 50% when the motor is in idle state. This reduces the heating during dwell periods.

Q: Does the 6410-001-N-N-N have a digital electronic damping circuit?

A: Yes, the 6410-001-N-N-N is equipped with a digital electronic damping circuit. This circuit helps in making the full motor torque available at all speed ranges.
