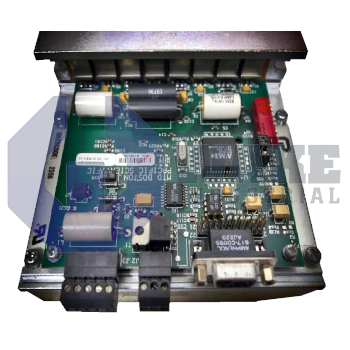

6410 Series Stepper Drive manufactured by Pacific Scientific. This Stepper Drive features a Power Level of 7.1 A peak, 5 A rms 24-75 Vdc along with a Customization Number of Factory Assigned.
✓ In-Stock!

6410

  • Rated 4.5 (21 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options
6410 Series Stepper Drive manufactured by Pacific Scientific. This Stepper Drive features a Power Level of 7.1 A peak, 5 A rms 24-75 Vdc along with a Customization Number of Factory Assigned.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The Pacific Scientifics’ 6410 Drive is used for converting step and directional inputs of the currents in the stepper motors winding to manage the two-phase stepper motors. Its key features cover mid-band instability compensation and micro-stepping to achieve a smooth operation with high resolution while operating between the slow speed and the mid-band sections. It has an output current range that can be selected using a dip-switch to values between 5A RMS at the peak rating of 7.1 A in micro-step mode and up to 0.625A RMS (for 0.88A peak in micro-step mode).

This 6410 drive provides regulated phase current for input 24 to75 Volts DC supply voltages with 5.0 Amps with +-- 0.25 %A and are intended to be used with Pacific Scientifics’ group of hybrid step motors. They work equally well with the standard line as well as the performance-enhanced line as long as the care is taken to ensure that the motor winding is matching with the drive's output current values. The drive circuit is designed to give out a nominal two-phase current regulated chopper frequency of 20 kHz, with a maximum stepper rate of 2 MHz when its step filter is disabled and 500 kHz when it is enabled. It works well within the ambient operating temperature range of 0 to 50° C with an optional heat sink and the humidity between 10 to 90%.

The 6410 chopper drive features the Pacific Scientifics' patented 4-phase pulse width modulation (PWM) for dynamic real-time control of the motor winding current. It combines the best of re-circulating as well as the non-re-circulating power regulation producing a large back-EMF rejection and low chopper ripple current. It gives many advantages such as a greatly reduced heat emission, low electric sound and enhanced current control during braking operations of the motor.

6410 Technical Specifications

Drive Type Family: Stepper Drive (6000)
Dimensions: 5 x 1.5 x 4.3 (inches)
Power Level: 7.1 A peak, 5 A rms 24-75 Vdc
Functionality: Motor Drive Module
Customization Number: Factory Assigned
Cover Option: Factory Assigned
Heat Sink Option: Factory Assigned
Connector Kit Option: Factory Assigned
Input power volatge: 24 VDC to 75 VDC
Weight: 1 lb

Frequently Asked Questions about 6410


Q: What is the primary function of this model?

A: This model is used for converting step and directional currents for controlling two phase stepper motors. The system ensures that motion control is precise and accurate.

Q: Can this model be used with diffeerent types of stepper motors?

A: Yes, the drive can be used with multiple types of hybrid step motors and is compatible with the standard as well as the advanced step motors manufactured by the company.

Q: What is the optimum operating temperature for this model?

A: The 6410 drive provides its best result when used within a temperature range of 0 to 50 degrees celsius. A heat sink can also be used for better thermal management.

Q: What is the chopper frequency in this model?

A: This model provides a nominal two phase current regulated chopper frequency of 20 kHz. A maximum stepper rate of 2 MHz is also supported in this model.

Q: What is the function of the PWM feature?

A: The PWM feature provides complete control over the motor winding current in real time. It also has benefits such as reduced heat emission and low electric noise.

Internal Product Review

  • ‘‘The 6410 is a reliable companion when it comes to managing two-phase stepper motors. The system proves to be highly precise because of its micro-stepping and mid-band instability compensation.’’
