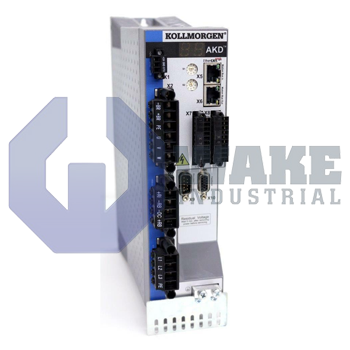

The AKD-P00307-NBAN-0000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 2000 Watts and a rated supply voltage of 240/480 V. As well as, Rated output current of 3 A and a peak output current of 9 A. AKD drives offer the greatest output in a compact body.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

AKD-P00307-NBAN-0000

  • Rated 4.5 (33 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships Today
  • Call for Expedited Shipping and Product Condition Options
The AKD-P00307-NBAN-0000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 2000 Watts and a rated supply voltage of 240/480 V. As well as, Rated output current of 3 A and a peak output current of 9 A. AKD drives offer the greatest output in a compact body.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a AKD-P00307-NBAN-0000 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Kollmorgen is one the best motion systems manufacturers on the modern automation market. They design and manufacture all the products themselves that include servo motors, direct drive servo motors, stepper motors, drives, amplifiers, gearheads, and actuators. Kollmorgen has an automation suite that includes all the software and hardware components for having a high-performance automation system. They even have motor drives with multiple Fieldbus connectivity options.

The AKD Servo Drive Amplifier is Analog-based servo drives that have digital measurements which are recorded inside of the drive. The AKD-P00307-NBAN-0000 has an analog system as both the input and output connectivity options. The standard drive offers one analog input on X8, and the built-in input/output option card provides a second input on X24 & X23. The input voltage rating of this drive ranges from 0-480 volts with input and output frequencies of 50-60 Hz and 0-800 Hz. This drive has a position indexer drive system that adds the ability to command multiple motions. The ambient temperature should be below 40 degrees Celsius for the smooth operation of the drive.

The weight of this particular drive is 5.62kgs. This AKD drive has a primary feedback system with an “NB” control board. The thermal control in the motor gets evaluated in the drive using encoder cable. The differential input voltage range for an analog input is ± 12.5 Volts with an update rate of 16 kHz, and the output voltage range for analog output is ±10 Volts with a 4 kHz update rate. The maximum fuse rating for the AKD-P00307 model drives is 6 Amperes. It has 3-phase input and output systems with a current-rating of 2.24 KV Amperes.

  • AKDP00307-NBAN-0000
  • AKD-POO3O7-NBAN-OOOO

AKD-P00307-NBAN-0000 Technical Specifications

Control Logic, Supply Voltage: 24 V
Protection class : IP20
Current Rating : 3Arms
Volatge Rating: 240/480Vac
Connectivity Option: Analog
Extension Options: None
Cooling : Internal air blower
Weight : 4.3kg
Maximum recommeded fuse rating: 6A
Vibration Class: Class 3mI according to IEC 60664-1

Frequently Asked Questions about AKD-P00307-NBAN-0000


Q: Does the AKD-P00307-NBAN-0000 require an external EMC filter during operation?

A: The AKD-P00307-NBAN-0000 is designed with an integrated EMC filter. This allows it to meet the noise immunity requirements to the 2nd environment category. The use of an external mains filter is not necessary.

Q: What additional accessories are included in the drive package of the AKD-P00307-NBAN-0000?

A: Apart from the AKD-P00307-NBAN-0000 drive, a printed copy of the AKD safety guide, a DVD containing the AKD installation manuall, mating connectors and a grounding plate are delivered with the drive. Other acessories such as electrical cables, external EMC filters, and the CAN termination connectors have to be ordered by the operator as separate units.

Q: How can operators carry out operation and parameter setting on the AKD-P00307-NBAN-0000?

A: Operator and parameter setting can be done using the setup software Workbench via TCP/IP. The operator and parameter setup of the AKD-P00307-NBAN-0000 should be carefully carried out by well trained engineers according to the instruction in the guide supplied with the drive.

Q: What is the internal regeneration resistor in the AKD-P00307-NBAN-0000 designed to do?

A: The regeneration resistor in the AKD-P00307-NBAN-0000 is designed to protect the drive from the excess energy generated during motor deceleration. The drive can still be connected to an external resistor to help handle the excess energy depending on the application requirement.

Q: What type of information is communicated by the seven segment Light emitting diode display of the AKD-P00307-NBAN-0000?

A: The Light emitting diodes of the AKD-P00307-NBAN-0000 is designed to provide operators with information regarding the operational faults, firmware download, internal dynamic brake mode, and the normal operation. The meaning of easy code displayed by the diode is stated in the documentation of the drive.

Internal Product Review

  • ‘‘Amazing product, easy to use and very accurate in operation. ’’
