Product Description:

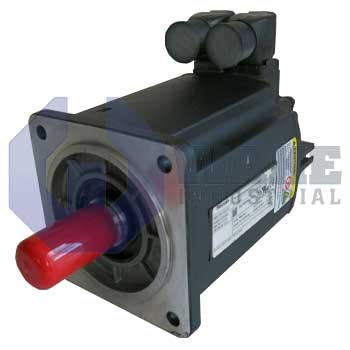

The MSK060B-0600-NN-M1-UP1-NNNN synchronous servo motor is produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. It converts electrical energy into controlled rotary motion for positioning and velocity loops in automated machinery such as packaging stations, transfer units, and pick-and-place axes. The motor is size 060 with length code B, so it fits mid-frame mechanical envelopes common in multi-axis gantries and other compact machine layouts. Its general form suits equipment that needs accurate motion control without requiring a large installation footprint.

It relies on natural convection for thermal dissipation, so surrounding airflow must be adequate to keep the stator within its operating limits under continuous load. This cooling method avoids the extra noise and service needs associated with fan-assisted designs. Position feedback is handled through a Hiperface interface that carries incremental and absolute data to the drive over a single cable. The encoder provides 128 signal periods, and the internal electronics use a multiturn absolute arrangement so position information is retained after power loss. An electrically released brake provides 10 Nm of holding torque, which helps the axis remain in place when the inverter is disabled.

For installation flexibility, the feedback plug uses a 240° rotatable connector ring, allowing the cable exit to align with the available routing path without placing unnecessary stress on the wiring. The feedback device uses optical sensing, which maintains clean signal transmission during dynamic motion. Output torque is delivered through a shaft with a keyway, which supports keyed couplings for positive mechanical locking. Winding code 0600 matches the electrical characteristics expected by compatible MSK drive modules. The keyed shaft arrangement is useful where the driven element must keep a fixed angular relationship to the motor shaft during repeated starts, stops, and direction changes.
