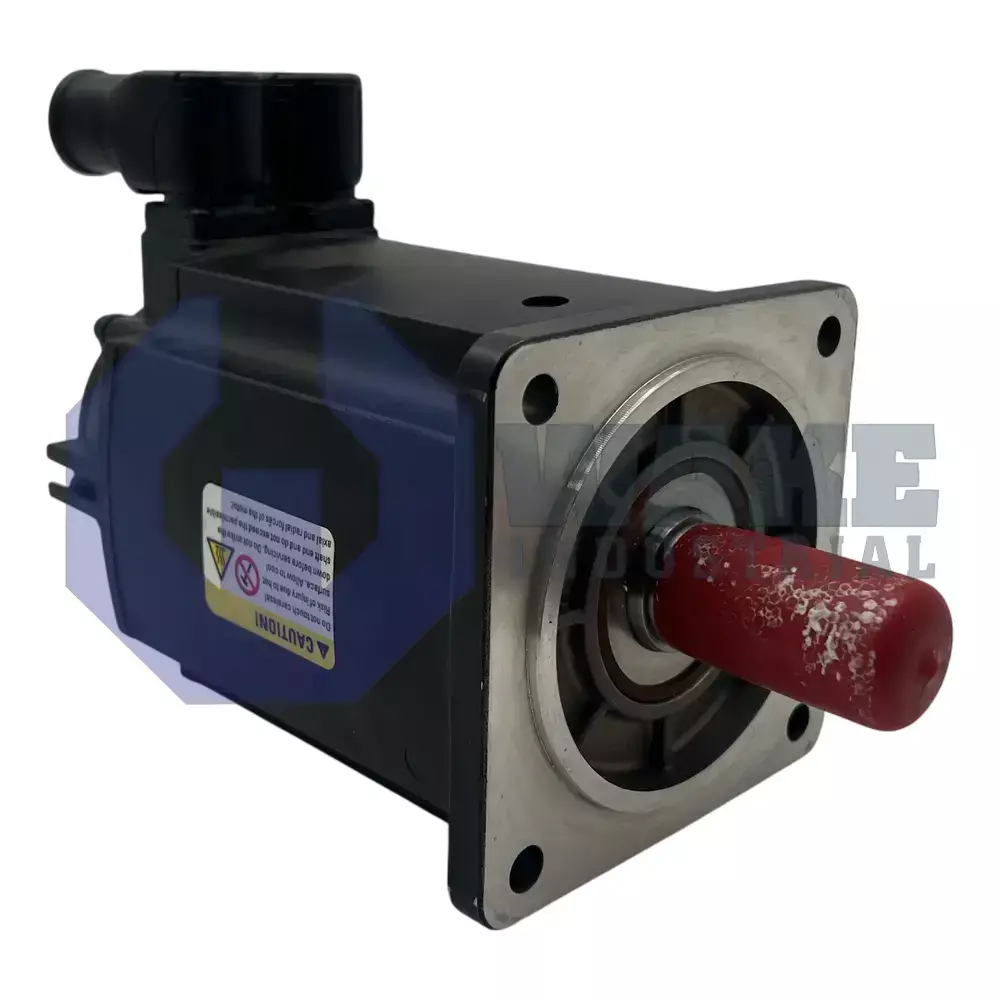

MSK060B-0600-NN-M1-UP0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911306374
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MSK060B-0600-NN-M1-UP0-NNNN is part of the MSK IndraDyn S Synchronous Motors series and features a standard design with natural convection cooling. This servomotor has a shaft with keyway, a rotatable encoder connector at 240 degrees, and uses a Hiperface optical multiturn absolute encoder with 128 signal periods.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK060B-0600-NN-M1-UP0-NNNN is a synchronous servo motor produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. As a closed-loop rotary actuator, it converts drive current into precise rotary motion for automated packaging lines, pick-and-place gantries, and other motion axes. Its dynamic response supports accurate positioning and stable velocity control in industrial automation cells. It is well suited for applications that require repeatable starts, stops, and direction changes without sacrificing motion accuracy.
This model removes heat to ambient air through natural convection, so no external fan or liquid circuit is needed. Because cooling is passive, the motor can be installed without separate blower hardware, although airflow around the housing must remain unobstructed for effective heat dissipation. The encoder connector is rotatable through 240°, allowing the cable exit to be turned during mounting and easing routing in tight cabinets. Position data are transferred over the Hiperface interface, which combines power and digital signal transmission to reduce conductor count. Internal feedback is resolved into 128 signal periods per mechanical revolution, and those sine-cosine tracks are created with optical scanning for accurate interpolation.
The feedback element stores absolute angle across multiple turns, and its multi-turn absolute design eliminates homing cycles after power-up while maintaining position through brief power losses. This arrangement helps the connected drive retain axis reference after short interruptions and supports faster return to operation. This motor is supplied without a holding brake, so external measures must secure vertical loads when power is removed. Torque is transmitted through a keyed shaft, and the shaft with keyway profile helps prevent slip between the motor and the driven hub under reversing loads. The stator’s 0600 winding code indicates the electrical resistance and inductance values used by compatible IndraDrive controllers.
Frequently Asked Questions about MSK060B-0600-NN-M1-UP0-NNNN:
Q: What type of cooling does the MSK060B-0600-NN-M1-UP0-NNNN motor use?
A: This model is designed with natural convection cooling and does not require external fans or forced-air systems.
Q: What encoder technology is provided on the MSK060B-0600-NN-M1-UP0-NNNN motor?
A: The MSK060B-0600-NN-M1-UP0-NNNN servo motor features an optical multiturn absolute encoder with Hiperface interface.
Q: What shaft configuration does the MSK060B-0600-NN-M1-UP0-NNNN motor offer?
A: A shaft with keyway is included, providing secure mechanical coupling for the connected application.
Q: Does the MSK060B-0600-NN-M1-UP0-NNNN come with a holding brake?
A: This motor is not equipped with a holding brake.
Q: What type of encoder connector is used on the MSK060B-0600-NN-M1-UP0-NNNN motor?
A: The MSK060B-0600-NN-M1-UP0-NNNN uses a rotatable encoder connector that can swivel up to 240°.
