Product Description:

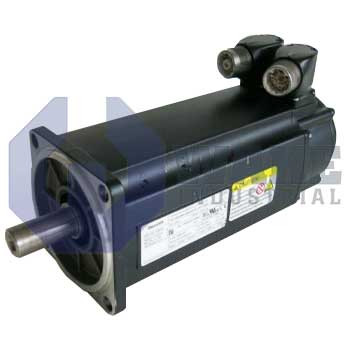

The MSK050C-0600-NN-M1-UP1-NNNN is an IndraDyn S synchronous servomotor produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. It is a permanent-magnet rotary device that delivers closed-loop torque and position control for automated packaging, handling, and machining equipment. It links directly to compatible Rexroth drive controllers to translate commanded currents into precise axis motion.

Thermal management relies on natural convection, meaning heat leaves the stator through its housing without auxiliary fans or liquid circuits. Proper airflow around the motor helps keep winding temperature within limits during continuous operation. The unit communicates position data over the Hiperface interface, which combines incremental signals with absolute data so the drive can read the rotor angle immediately after power-up. Inside the encoder, an optical disc subdivides one revolution into 128 signal periods, providing base resolution for the drive’s interpolation algorithms. The integrated, electrically released brake supplies 6 Nm of static holding torque, allowing the axis to maintain position when power is removed or during safety stops. Power is transmitted through a shaft with a keyway, allowing pulleys or gear sets to be coupled without relying on shrink-fit assemblies.

The feedback connector is rotatable through 240°, so the cable exit can be turned during installation to avoid sharp bends and reduce strain on the cable. The encoder uses optical scanning and a multi-turn absolute track, storing revolution counts even when the system is unpowered and removing the need for homing routines after service. Electromagnetic behavior follows winding code 0600, giving torque constants and current ratings matched to drive families that normally target the compact 050 frame and C length used by this motor. The standard mechanical design includes a sealed housing, which suits enclosed machine assemblies where protection of internal components is important.
