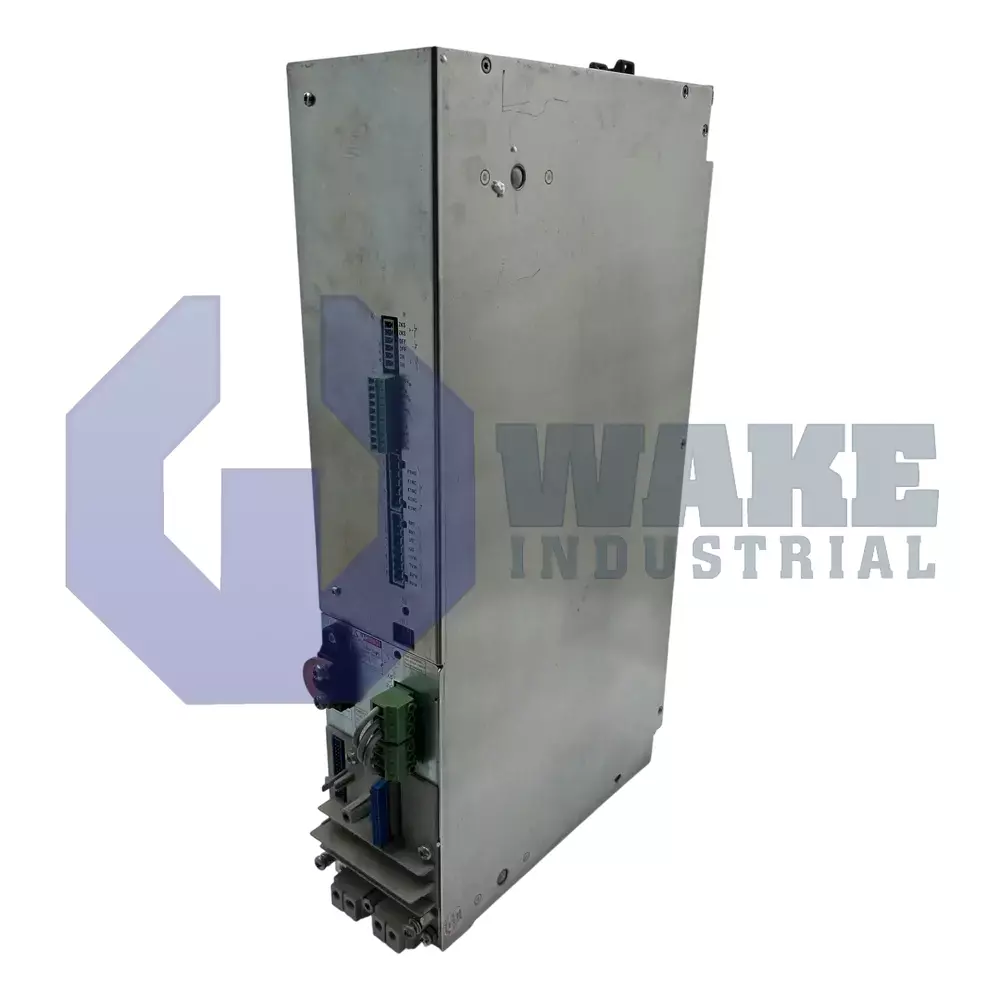

The HVE02.1-W018N Power Supply System is manufactured by Rexroth Indramat Bosch. This power supply system has a rated power voltage of 18 and a nominal voltage of 380 to 480V.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

HVE02.1-W018N

  • Rated 4.5 (16 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911271018
  • Stock: In-Stock, Ships 1-2 Days
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The HVE02.1-W018N Power Supply System is manufactured by Rexroth Indramat Bosch. This power supply system has a rated power voltage of 18 and a nominal voltage of 380 to 480V.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a HVE02.1-W018N to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Rexroth Indramat manufactures the HVE02.1-W018N 2nd generation power supply unit. It is part of the drive system where it is used to supply electricity to HDD and HDS drive controllers. It allows the operation of several drive controllers simultaneously. The power rectifier in the HVE02.1-W018N provides unregulated DC bus voltage by rectifying the 3-phase AC voltage from the mains supply. It can run in a generator mode where it produces heat via a bleed resistor. You can use it to shut down motors with a permanent magnet energizing by the short-circuit bus. Thanks to the integrated monitoring functions, it monitors and optimizes the drive system.

The HVE02.1-W018N can only be used with the accessories and parts specified by Rexroth Indramat. It should be operated under installation and ambient conditions which are a maximum installation height of 1000 meters above sea level, ambient storage, and operating temperatures of -30 to 85 degrees and 5 to 45 degrees respectively. The permissible relative humidity is capped at 95% without condensation. The power loss characteristics include basic losses of 125 kW, 250 W loss at the maximum continuous output, and 7 W/kW power losses per kW DC bus continuous power.

The HVE02.1-W018N features a weight of 13 kg and an IP 10 protection category. The input voltage ranges between 3 x 380 … 480 V and the frequency range is between 50 and 60 Hz. Ensure that the air within the control cabinet is free of dirt. It is possible to connect DC bus chokes of the GLD type to the HVE02.1-W018N to increase the DC bus continuous power. You can connect the HZK  capacitance module to reduce heat loss and to increase the power in case of power failure.

  • HVE02.1W018N
  • HVE-02.1-W018N
  • HVE 02.1 W018N
  • HVE2.1-W018N

HVE02.1-W018N Technical Specifications

Nominal Voltage: 380 to 480V
Cooling : Natural convection
Input Bus Voltage: 530 to 670V
Continuous Bleeder Power: 1KW
Peak Bleader Power: 100KW
Maximum Regenerated Energy: 70KW
Weight : 13kg
Frequency : 50 to 60Hz
Power Draw at maximum load: 500VA
Protection Category: IP10

Frequently Asked Questions about HVE02.1-W018N


Q: Can the HVE02.1-W018N be used without an external cooling unit?

A: It is possible to operate the HVE02.1-W018N without an external cooling unit, however in this case, the power supply unit should should be installed in a control cabinet that has enough space so that air circulation within the cabinet can be generated.

Q: When should the HVE02.1-W018N be operated with a transformer?

A: A transformer is required if the mains volatge coming into the power supply unit is less than 380V or greater than 480V. The transformer power must be greater or or equal to the incoming power. The transformer can be ordered as a separate accessory.

Q: How does the HVE02.1-W018N communicate operational error to the operator?

A: The HVE02.1-W018N features an H1 diagnostic display which it uses to communicate operational error to the end user through special error codes. The meaning of the error code showed on this display can be found in the documentation supplied with the device.

Q: Is the HVE02.1-W018N suitable for residential applications?

A: The HVE02.1-W018N can be used in residential applications. However, suitable interference suppression filters must be installed in the mains supply line in the machine. Also, the motor power cable should be routed in a shielded manner.

Q: How often should the HVE02.1-W018N be cleaned?

A: The accumulation of dirt and other foreign particles can interfare with the smooth operation of the HVE02.1-W018N. It is recommended that the casing of this device is cleaned at least once a year.
