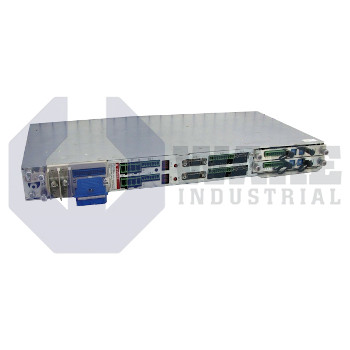

The HDD02.1-W040N-HD12-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller has an Internal Air Cooling and a rated current of 40. The Controller Family is DIAX04 and a Command Communication of SERCOS.
✓ In-Stock!

HDD02.1-W040N-HD12-01-FW

  • Rated 4.6 (18 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911271765
    In-Stock, Ships 3-5 Days
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The HDD02.1-W040N-HD12-01-FW Servo Controller is manufactured by Rexroth Indramat Bosch. This controller has an Internal Air Cooling and a rated current of 40. The Controller Family is DIAX04 and a Command Communication of SERCOS.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The HDD02.1-W040N-HD12-01-FW drive controller must be installed vertically in a closed housing or a control cabinet that complies with EN 50175/1988 specifications. The Bosch Rexroth device works with the manufacturer’s 1MB frameless spindle and 2AD AC motors. This product can be put to use in applications related to robotics and machine tools. It may have to be integrated with an HZB brake resistor if high drive performance is required and the connected power supply system does not support regeneration. This brake resistor helps in preventing the controlled energy from breaking. The unit is also compatible with an HZF power connection module. The drive controller can be delivered to any country with a warranty for one year.

The drive controller must not be put to use without permanent connection of the ground wire. The capacitors should be allowed to discharge for at least five minutes after the power is turned off before any work is undertaken on the product. The unit must not be operated along with a residual current operated device. A copper conductor that has a minimum cross-sectional area of 10mm2 should be used over the full length of the device for a protective connection. The controller is likely to encounter dangerous movements if it has defective components or there are errors in the software.

The product must be in standstill mode before entering or accessing the danger zone. The power connection of the device should be disconnected with the help of a master switch if the controller needs to be cleaned or kept unused for a long time. It is essential to secure the master switch against reconnection in this case. The resistors, heatsink, housing and other parts of the unit must be touched only 10 minutes after the unit has finished operation. The product has a function ID code of 12.

  • HDD021W040NHD1201FW
  • hdd02.1-w040n-hd12-01-fw
  • HDD02 1 W040N HD12 01 FW
  • HDD2.1-W040N-HD12-01-FW

HDD02.1-W040N-HD12-01-FW Technical Specifications

Command Communication: SERCOS
Insulation Class: C
Installation Direction: Vertically
Rated Current: 40 A
Firmware: Ordered Seperately
Cooling: Internal Air
Controller Family: DIAX04
Protection Rating: IP10
Operating Temperature Range: (+5 to +55) degree Centigrade
Storage and Transport Temperature Range: (-30 to +85) degree Centigrade

Frequently Asked Questions about HDD02.1-W040N-HD12-01-FW


Q: How should the HDD02.1-W040N-HD12-01-FW drive controller be installed?

A: The controller should be installed vertically in a closed housing or control cabinet adhering to EN 50175/1988 specifications.

Q: What are the compatible motors for this HDD02.1-W040N-HD12-01-FW?

A: The device works with the manufacturer's 1MB frameless spindle and 2AD AC motors.

Q: When need to integrate the HDD02.1-W040N-HD12-01-FW with an HZB brake resistor?

A: An HZB brake resistor should be integrated if high drive performance is demanded and the connected power supply system doesn't support regeneration. This resistor helps prevent controlled energy from breaking.

Q: What precautions should be taken after turning off the power of HDD02.1-W040N-HD12-01-FW?

A: After the power is turned off, the capacitors must discharge for at least five minutes before performing any work on the product.

Q: Why is a copper conductor area required for the HDD02.1-W040N-HD12-01-FW?

A: A copper conductor with at least a 10 mm2 cross-sectional area should be used over the full device length for a protective connection to ensure safety and proper operation.
