Home Bosch Rexroth Indramat HDD Drive Controllers HDD02.2-W040N-HD32-01-FW

HDD02.2-W040N-HD32-01-FW

Name: HDD02.2-W040N-HD32-01-FW
Brand: Bosch Rexroth Indramat
Price: 414 USD
Availability: InStock
Rating: 4.5 (32 reviews)

Rated 4.5 (32 total ratings)

MPN: R911288990

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Preparing your secure checkout page...

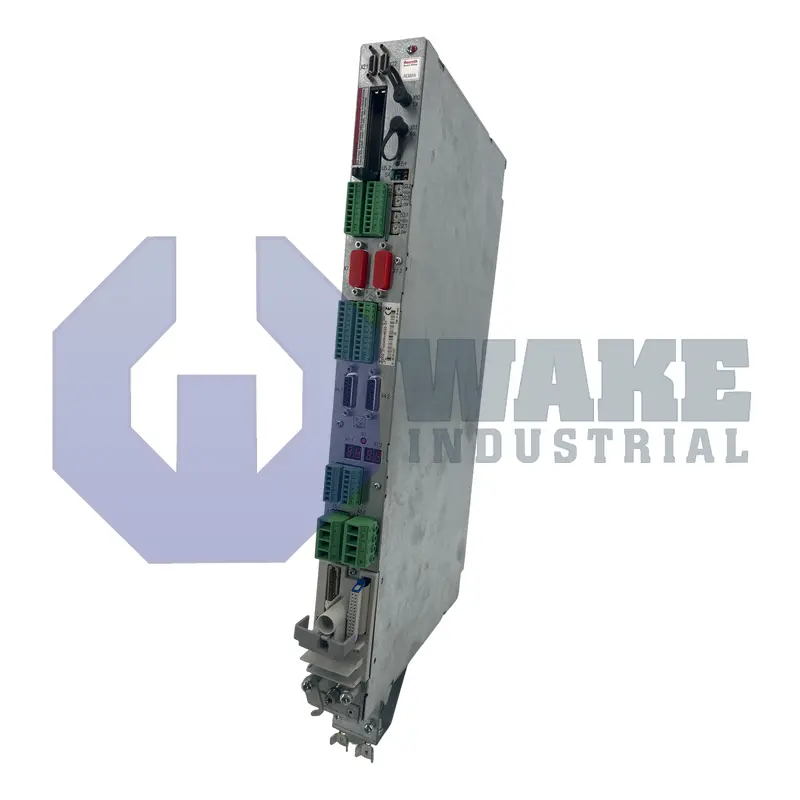

The HDD02.2-W040N-HD32-01-FW is a drive controller manufactured by Rexroth. It has a built-in cooling system consisting of a blower, a current rating of 40A, and its compatible with DIAX04 Controller Family.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The HDD02.2-W040N-HD32-01-FW model is a drive controller designed and manufactured by Rexroth Indramat. It's from the series DIAX04. Rexroth is known for its advanced and innovative solutions to industrial automation. It is used in various applications that optimize the whole process and provide benefits in areas such as machining, automation, and product packing.

The HDD02.2-W040N-HD32-01-FW drive controller is specifically designed to optimize the dynamic performances of various machines. This product is an example and proof of how Rexroth provides advanced solutions to industrial automation problems. This drive controller that perform well in all type of industrial conditions and meet the automation problems widely in the industry. It consist of an internal cooling system with a fan for the temperature management in the driver, ensuring it works flawlessly as it works on the 40 A of continuous current. It belongs to the DIAX04 Family and it can be used to support multiple control modes, which are speed, velocity and torque dependent. All of the 3 slots of the HDD02.2 drive controller are empty and can be configured as per your requirements. The controller should be installed into the control cabinet of high protection category (at least IP 54).

The HDD02.2-W040N-HD32-01-FW drive controller must be handled and configured by a professional. It uses SERCOS interface for real-time communication. The minimum recommended clearance should be maintained at the top and bottom of the controller while installation. The ideal operating temperature range for HDD02.2 drive controller is 0 to +40 degree Celsius, without reduction in rated data. We have this product in stock at Wake Industrial and we can deliver it to your location within the quoted time.

Specs
Revisions
Product Comparison
Similar Ordering Codes
Common Troubleshooting Steps
Common Error Codes

Ambient temperature range
0 to +40 degree Celsius

Compatibility
MKD, MHD, 1MB

Control Modes
Speed, position, and torque control

Controller Family
DIAX04

Cooling Method
Internal air cooling with built-in blower

Energy Efficiency
High

Maintenance
Modular design for easy maintenance

Manufacturer
Bosch Rexroth Indramat

Overload Capacity
Handles significant overloads

Rated Current
40 A

HDD022W040NHD3201FW
hdd02.2-w040n-hd32-01-fw
HDD02 2 W040N HD32 01 FW
HDD2.2-W040N-HD32-01-FW

Drive Controller	Family / Axes	Rated Current (A cont.)	Command Interface†	Version	Cooling	Key Difference
HDD02.2-W040N-HD32-01-FW	HDD / dual	40	HD32 – SERCOS (+ ext. encoder option)	2.2	Internal blower	Dual-axis, SERCOS with extended encoder slot (indramat-usa.com, )
HDD02.2-W040N-HD12-01-FW	HDD / dual	40	HD12 – SERCOS	2.2	Internal blower	Same power stage; standard SERCOS card without ext. encoder
HDD02.1-W040N-HD12-01-FW	HDD / dual	40	HD12 – SERCOS	2.1	Internal blower	Earlier firmware branch (02.1); otherwise drop-in swap
HDS02.2-W040N-HD12-01-FW	HDS / single	40	HD12 – SERCOS	2.2	Internal blower	Single-axis version for compact panels
HDS02.2-W040N-HA03-01-FW	HDS / single	40	HA03 – ±10 V analog	2.2	Internal blower	Analog command (+/-10 V) for legacy CNC loops
HDD02.2-W040N-HD32	HDD / dual	40	HD32 – SERCOS	2.2	Internal blower	Same as baseline but ordered without firmware EPROM (adegis.com)

Order Codes

HDD02.2-W040N-HD32

HDD02.2-W040N-HD32-01

HDD02.2-W040N-HD32-01-NW

HDD02.2-W040N-HD32-01-FW

HDD02.2-W040N-HD12-01-FW

HDD02.1-W040N-HD12-01-FW

HDD02.1-W040N-HD12

HDD02.1-W040N-HA01-01-FW

HDD02.1-W040N-HD01-01-FW

HDD02.1-W040N

Fault / Error Code	What It Means	Corrective Action
F207	Drive tried to enter an operating mode that has never been initialised	Load a valid mode in parameters S-0-0032…35, store, then issue Reset Class 1 Diagnostics (or power-cycle) before re-enabling.
F218	Heat-sink temperature above shut-down threshold (amplifier over-temperature)	Lower cabinet ambient ≤ 45 °C, clean or replace blower, wait for cool-down, verify fan airflow, then reset.
F219	Motor thermal sensor signalled over-temperature (≥ 155 °C)	Reduce mechanical load or duty-cycle, check motor blower path, inspect temperature-sensor wiring, allow cool-down before restart.
F220	Internal brake/bleeder resistor overheated – excess regenerated energy (regen)	Lengthen decel ramps, add or up-size an external brake resistor, clear the fault once resistor temperature is normal.
F226	DC-bus under-voltage detected while drive was enabled	Check mains for brown-outs, be sure Drive Enable drops before AC power is lost; restore supply and reset.
F228	Excessive following-error – axis cannot track commanded profile	Lower commanded accel/vel, retune velocity & position loops, inspect mechanics for binding or backlash.
F229	Encoder-1 quadrant error (feedback plausibility fault)	Inspect encoder cable/shielding, reroute away from power, replace encoder or interface card if error repeats.
F230	Encoder-1 signal frequency exceeded interface limit	Limit top speed, fit lower-PPR encoder, or upgrade feedback card; clear fault and resume.
F233	External 24 V control-supply fault	Verify 24 V PSU capacity, tighten terminals, replace PSU if sagging; reset once stable.
F236	Excessive position-feedback difference between encoders 1 & 2	Check gearing constants, cable integrity and encoder-2 parameters; realign or replace encoder if mismatch persists.

Error Code	Meaning
F207	Switching to an un-initialized operating mode
F218	Amplifier heatsink over-temperature shutdown
F219	Motor over-temperature shutdown (thermal sensor trip)
F226	DC-bus under-voltage detected in the power section
F228	Excessive deviation — axis cannot follow the commanded profile
F229	Encoder 1 failure — quadrant-error (feedback plausibility fault)
F230	Maximum signal frequency of encoder 1 exceeded
F233	External 24 V control-supply (power-supply) error
F236	Excessive position-feedback difference between encoders 1 & 2
F242	Encoder 2 signal too small (feedback amplitude fault)

Frequently Asked Questions about HDD02.2-W040N-HD32-01-FW:

Q: What cooling method does the HDD02.2-W040N-HD32-01-FW use?

A: The HDD02.2-W040N-HD32-01-FW employs an internal air cooling system with an integrated blower to maintain optimal operating temperatures.

Q: What is the peak current capacity of the HDD02.2-W040N-HD32-01-FW drive controller?

A: The HDD02.2-W040N-HD32-01-FW has a peak current capacity of 40A which makes it suitable for various industrial applications like printing, packaging, and machine tools.

Q: Does the HDD02.2-W040N-HD32-01-FW support energy-efficient operation?

A: Yes, the HDD02.2-W040N-HD32-01-FW features a closed-loop DC bus system that allows for energy exchange between drives, enhancing overall energy efficiency

Q: Is the HDD02.2-W040N-HD32-01-FW module upgradable?

A: Yes, the HDD02.2-W040N-HD32-01-FW drive controller can be easily upgraded through U1, U2, and U3 slots, as per your requirements.

Q: Does HDD02.2-W040N-HD32-01-FW support the SERCOS Interface?

A: Yes, HDD02.2-W040N-HD32-01-FW supports mutiple communication Interface one of them is SERCOS.

Internal Product Review

‘‘The HDD02.2-W040N-HD32-01-FW drive controller by Bosch Rexroth works in 40A of current. It's unique features include air cooling system, SERCOS interface, multiple communication module support, and supporting mutiple control sytems. It enhances the overall reliability and optimize the system very efficienty as compared to other controllers’’
