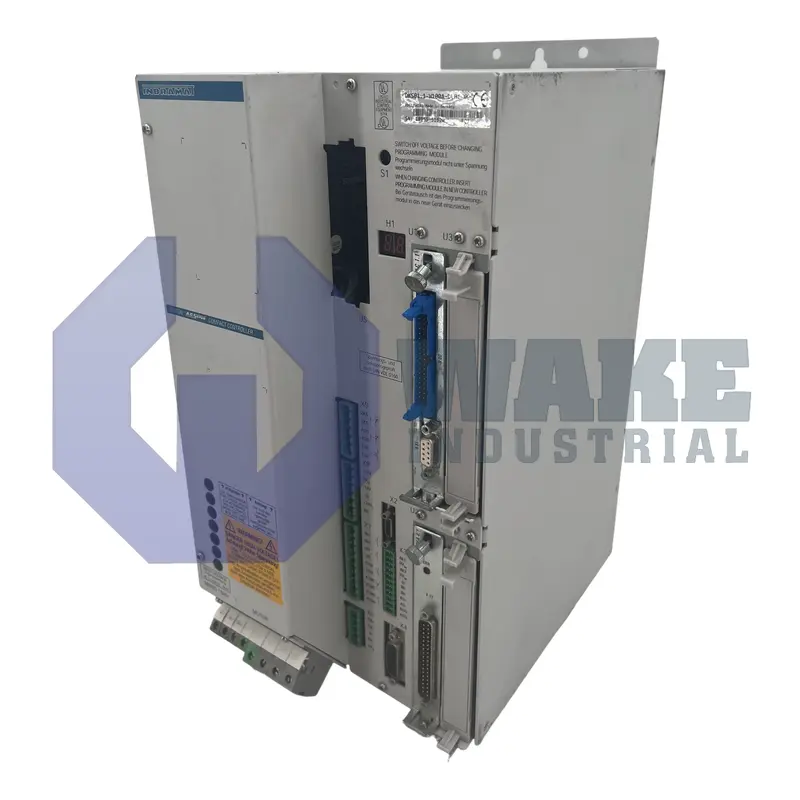

DKS01.1-W100A-DL01-00

Name: DKS01.1-W100A-DL01-00
Brand: Bosch Rexroth Indramat
Price: 8741.00 USD
Availability: InStock
Rating: 4.4 (29 reviews)

Rated 4.4 (29 total ratings)

MPN: R911254181

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Instant Checkout Now

$8,741.00

Preparing your secure checkout page...

The DKS01.1-W100A-DL01-00 servo drive has an internal bus DC voltage of 300 V. It supports a 50 - 60 Hz frequency range and includes a DSF encoder for precision. The model weighs 11 kg.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

The dks01.1-w100a-dl01-00 is a high-performance servo drive designed for demanding industrial automation applications. This servo drive belongs to the DKS series, renowned for its reliability and efficiency in motion control. The device features an encoder type DSF that ensures precise and accurate feedback for optimal performance.

With a rated current of 100 A and a continuous current of 50 A, the DKS01.1 servo drive is built to handle high current demands while maintaining consistent operation. The model operates with an input voltage of 3 x 230 V. The power requirement of the servo drive is 11 kVA indicating its capability to support heavy-duty applications. The internal bus DC voltage of the drive is 300 V. The servo drive has a protection class of IP10, offering basic protection against dust and solid objects. Weighing 11 kg, this device is robust yet manageable for installation and maintenance. The insulation class of the servo drive is C which ensures high thermal stability and safety during operation. The DKS series servo drive operates at a frequency range of 50 to 60 Hz.

The bleeder continuous power is 0.5 kW, and the bleeder peak power reaches 18 kW, allowing the servo drive to manage excess energy effectively. The operating temperature range for this model dks01.1-w100a-dl01-00 is +5 to +45 degrees centigrade. The maximum installation height for the model is 1000 MSL. This servo drive is ideal for applications requiring precise motion control, such as CNC machines, robotics, and automated manufacturing systems. Wake Industrial has this product (dks01.1-w100a-dl01-00) in stock. The product comes with a one year replacement warranty. The warranty is easily claimable in the event of a fault or malfunction.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Continuous Current
50 A

Encoder Type
DSF

Input Voltage
3 x 230 V

Internal Bus DC Voltage
300 V

Power Requirement
11 kVA

Product Type
Servo Drive

Protection Class
IP10

Rated Current
100 A

Series
DKS

Weight
11 kg

DKS011W100ADL0100
DKS01.1 W100A DL01 00
DKSO1.1-W1OOA-DLO1-OO
DKS1.1-W100A-DL01-00

Fault / Error Code	What it Means	Corrective Action
F2-05	Drive entered an operating mode that hasn’t been initialized.	Select a valid mode in parameters S-0-0032…0035, save, then reset the drive (press S1 or issue “Reset Class 1 Diagnostics”).
F2-18	Heat-sink temperature exceeded shut-down threshold.	Reduce cabinet temp to ≤ 45 °C, verify fan airflow, clean filters; replace fan or reposition drive if cooling can’t be restored.
F2-19	Motor thermal sensor signalled over-temperature.	Reduce load-torque or duty cycle, inspect motor blower, check temperature-sensor cable for shorts, re-enable after cool-down.
F2-20	Internal brake/bleeder resistor overheated (regen energy too high).	Lengthen decel ramps, add external brake resistor or dynamic-brake module, clear fault and re-enable.
F2-26	DC-bus under-voltage (drive enabled without adequate mains).	Check incoming 3-×-230 V supply, brown-outs, contactors; be sure “Drive Enable” only closes after DC-bus is at nominal.
F2-28	Following error exceeded permissible window.	Lower acceleration, verify load inertia, retune velocity loop, inspect mechanics for binding or backlash.
F2-29	Motor encoder-1 quadrant error (signal plausibility fault).	Inspect encoder cable for damage, reroute away from power wiring, replace encoder if error repeats.
F2-33	External 24 V supply missing or out of tolerance.	Measure control-supply line, tighten terminals, size PSU for ≥ 4 A surge; reset fault once stable 24 V is restored.
F2-34	Emergency-stop chain opened (+24 V lost on E-Stop input).	Investigate E-Stop circuit, close contacts, restore 24 V, then perform fault reset.
F2-36	Position feedback 1 vs 2 deviation > limit (redundant encoders).	Check second-encoder wiring & gearing constants, correct mechanical lash, realign encoders if mis-indexed.

Drive Controller	Rated Current (A)	Continuous Current (A)	Input Voltage (V AC)	Power Requirement (kVA)	DC-Bus Voltage (V DC)	Cooling Method
DKS01.1-W100A-DL01-00	100	50	3 × 230	11	300	Heat-dissipation inside cabinet
DKS01.1-W100A-DL40-01-FW	100	—	3 × 230	—	—	Heat-dissipation
DKS01.1-W100A-DS01-02-FW	100	—	3 × 230	11	—	Heat-dissipation
DKS01.2-W100A-DL01-01-FW	100	50	3 × 230	11	300	Heat-dissipation
DKS01.1-W050A-DL01-00	50	—	3 × 230	9.5	300	Heat-dissipation (air-cooled)
DKS01.1-W030B-DL01-00	30	—	3 × 230	—	—	Heat-dissipation

DKS01.1-W100A-DL01-01-FW

DKS01.1-W100A-DS01-02-FW

DKS01.2-W100A-DL01-01-FW

DKS01.1-W100A-DL02-00

DKS01.2-W100A-DL02-01-FW

DKS01.2-W100A-DS01-02-FW

DKS01.2-W100A-DS68-50-FW

DKS01.1-W050A-DL01-00

DKS01.1-W050A-RS18-01

DKS01.1-W030B-DL04-00

Error Code	Meaning
F207	Switching to an un-initialized operating mode
F218	Amplifier heatsink over-temperature shutdown
F219	Motor over-temperature shutdown (≥ 155 °C)
F220	Bleeder (brake-resistor) overload – excess regenerated energy
F226	DC-bus undervoltage detected in the power section
F228	Excessive deviation / following-error too large
F229	Encoder 1 failure – quadrant error (motor encoder signal fault)
F230	Max. signal frequency of encoder 1 exceeded
F234	Emergency-Stop activated (+24 V removed at E-Stop input)
F236	Excessive position-feedback difference between encoders 1 & 2

Frequently Asked Questions about DKS01.1-W100A-DL01-00:

Q: What type of encoder does the DKS01.1-W100A-DL01-00 use?

A: The DKS01.1-W100A-DL01-00 uses an encoder type DSF. This ensures precise and accurate feedback for optimal performance.

Q: What are the current ratings for the DKS01.1-W100A-DL01-00?

A: The DKS01.1-W100A-DL01-00 has a rated current of 100 A. It maintains a continuous current of 50 A for consistent operation.

Q: What is the input voltage requirement for the DKS01.1-W100A-DL01-00?

A: The servo drive operates with an input voltage of 3 x 230 V. It supports heavy-duty applications with an 11 kVA power requirement.

Q: What are the environmental specifications for the DKS01.1-W100A-DL01-00?

A: The operating temperature range is +5 to +45 degrees centigrade. The maximum installation height is 1000 MSL.

Q: What protection features does the DKS01.1-W100A-DL01-00 offer?

A: The servo drive has a protection class of IP10. This provides basic protection against dust and solid objects.

Internal Product Review

‘‘The DKS01.1-W100A-DL01-00 servo drive features a rated current of 100 A and a continuous current of 50 A. The model operates at an input voltage of 3 x 230 V and has a power requirement of 11 kVA. The device includes a DSF encoder for precise feedback’’
