P22NRXA-LDN-HD-00

  • Rated 4.7 (6 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 3-7 Days
  • Call for Expedited Shipping and Product Condition Options
The P22NRXA-LDN-HD-00 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.68 Nm and a detent torque of .12 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

P22NRXA-LDN-HD-00

  • Rated 4.7 (6 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • Stock: In-Stock, Ships 3-7 Days
  • Call for Expedited Shipping and Product Condition Options
The P22NRXA-LDN-HD-00 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.68 Nm and a detent torque of .12 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a P22NRXA-LDN-HD-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

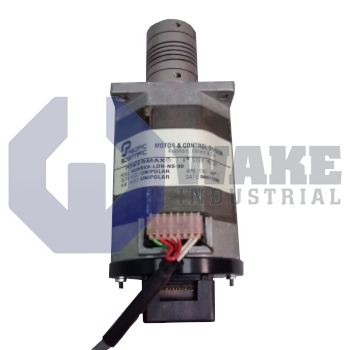

The P22NRXA-LDN-HD-00 hybrid stepper motor features a regular construction style with a two-stack rotor and NEMA mounting option. The motor comprises two phases and threaded inserts on its polymer end bell. Its rotor encompasses a precision-ground outer diameter. The Pacific Scientific unit is compatible with micro-stepping drives from the manufacturer. The device experiences flux leakage during operation. The product has an insulation resistance of 100 Megohms at 25°C and 500VDC. The motor has an angular accuracy of +/-3% of one step without any load. The unit has a laminated rotor of high-speed efficiency. The bearings have a size of 30mm.

The hybrid motor has a large shaft diameter of size 0.375 inches. The motor has an overall length of 78.8mm. The rotor is fitted with neodymium-iron-boron rare-earth magnets that have high energy. The bearing fatigue life is 400% more than that of standard 22mm bearings. The device is suitable for any application because of its encapsulated windings of type A. The unit has a honed inner diameter for the stator. Green or yellow wires are available as a safety earth conductor for receptacle style termination. The POWERMAX II brand motor features high dynamics at short positioning times.

The stepper motor is UL Recognized. The product is fitted with a smooth double-ended shaft and an incremental encoder. The encoder features 500 pulses per revolution. It supports index and dual-channel quadrature output. The mounting holes for the device have a diameter of 46.02mm. The thermal resistance of the device is measured when it is unmounted and hanging in still air. The device tends to experience demagnetization when it is operated at higher than the rated current. You can get this P series motor from Wake Industrial with a one-year warranty. The P22NRXA-LDN-HD-00 can be delivered worldwide through FedEx, UPS or DHL.

  • P22NRXALDNHD00
  • P22-NRXA-LDN-HD-00
  • P22NRXALDNHDOO

P22NRXA-LDN-HD-00 Technical Specifications

Product type: Stepper motor
Encoder: 500ppr
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Regular
Termination: Receptacle
Winding Type: A
Rotor Type: Standard
Shaft Configuration: Double

Frequently Asked Questions about P22NRXA-LDN-HD-00


Q: What features are offered by Powermax II motors?

A: Powermax II motor features include two year warranty, polymer encapsulated stator, large shaft diameter on NEMA 23 stepper, oversized bearings, and exposed lamination aids.

Q: What benefits are offered by Powermax II motors?

A: Benefits offered by Powermax II motors include dependable operation, excellent thermal dissipation, high acceleration, high available torque, and ability to withstand high radial and axial loads.

Q: What is the benefit of optional Sigmax technology?

A: Sigmax technology adds magnets that improve acceleration and torque.

Q: What is the benefit of 30 mm oversized bearings?

A: Compared to standard 22 mm bearings, 30 mm bearings increase fatigue life by approximately 400%.

Q: What options and modifictions are available?

A: Modifications are available for the main shaft. Additionally, optional encoders and the extensions for the rear shaft are also available.

Internal Product Review

  • ‘‘P22NRXA-LDN-HD-00 is a robust stepper motor with encoder for industrial applications.’’
