P22NRXD-LNN-NS-00

  • Rated 4.3 (23 total ratings)
  • Call for Expedited Shipping and Product Condition Options

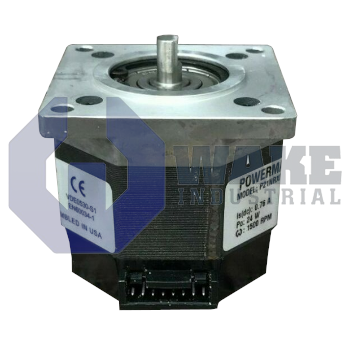

The P22NRXD-LNN-NS-00 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.43 Nm and a detent torque of 0.12 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

P22NRXD-LNN-NS-00

  • Rated 4.3 (23 total ratings)
  • Call for Expedited Shipping and Product Condition Options
The P22NRXD-LNN-NS-00 is manufactured by Pacific Scientific as part of the Powermax II P stepper motor series. It features a thermal resistance of 4.5 Mounted °C/Watt and rotor intertia of 0.025(kg-m²x10¯³). These are the most powerful stepper motors with a holding torque of 1.43 Nm and a detent torque of 0.12 Nm.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a P22NRXD-LNN-NS-00 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

The P22NRXD-LNN-NS-00 is a hybrid step motor made by Pacific Scientific as part of its motion control automation technologies. The motor offers a wide range of choices for users through its highly flexible design.

The P22NRXD-LNN-NS-00 motor, with its high quality and rugged, pose to be a reliable, high performance motor with an impressive range of high torque output. The motor series features a polymer encapsulated stator for a very effective thermal control function within the motor. In addition to this, it comprises exposed laminations which further improved heat dissipation that sufficiently extends motor life and reduces downtime. The P22NRXD-LNN-NS-00 also features a simple, efficient and easily controlled timing belt that is relatively free from any form of backlash. It also offers high torque-to-inertia ratios that provide high acceleration rates that move loads very fast, an admirable quality of the motor. The motor also has a bidirectional acceleration or deceleration rate that offers adequate motor positioning.

Also,  P22NRXD-LNN-NS-00 motor has a low inertia mass that gives it its very lightweight, a ±3% of one full step, no load, non-cumulative angular accuracy; 200 full steps per revolution, 1.8° full step angle, -20° to 40° operating temperature, simple and easily controlled timing belt that prevents backlash, NEMA Class B with 130°C insulation, 100 Megohms @500V dc and 25°C insulation resistance, and a flexible manufacturing process aimed at customer's satisfaction of purpose.

Its high quality performance and extended motor life is enabled by its high holding torque that range from 42-253 oz-in, large bearings of 30mm, and IP65 standardized protective structure against dust, particles and water. The reliability of the protection is further enhanced by the ICE (International Electro-technical Commission) construction standard that ensures proper wash-down requirements.

  • P22 NRXD LNN NS 00
  • P22-NRXD-LNN-NS-00
  • P22NRXD LNN NS 00
  • P22NRXD-LNN-NS-OO
  • P22NRXDLNNNS00
  • P22NRXDLNNNSOO

P22NRXD-LNN-NS-00 Technical Specifications

Axial Force: 58N
Radial Force: 89N
Weight: 1.13 kg
Type: Standard
Thermal Resistance: 4.5 Mounted °C/Watt
Rotor Inertia: 0.025(kg-m²x10¯³)
Holding Torque: 1.43 Nm
Detent Torque: 0.12 Nm
Encoder Option/Sequence Number: No Feedback/Standard
Size: NEMA 23
Number of Stacks: 2 Stacks
Mounting: NEMA
Construction: Regular
Termination: Receptacle
Winding Type: per assigned letter
Rotor Type: Standard
Shaft Configuration/Shaft Modifications: Single/Smooth
