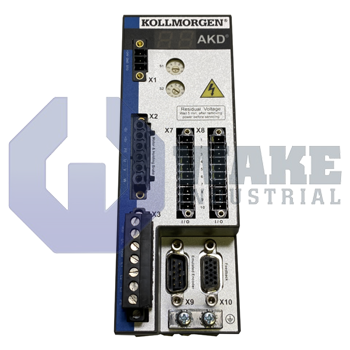

AKD-P00306-NBCC-E000

Name: AKD-P00306-NBCC-E000
Brand: Kollmorgen
Price: 461 USD
Availability: InStock
Rating: 4.5 (36 reviews)

Rated 4.5 (36 total ratings)

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

Available

Preparing your secure checkout page...

The AKD-P00306-NBCC-E000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 1100 Watts and a rated supply voltage of 120/240 V. As well as, Rated output current of 3 A and a peak output current of 9 A. AKD drives offer the greatest output in a compact body.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

Kollmorgen is one of the most trusted suppliers of automation equipment. The company specializes in the in-house design and manufacturing of servo motors, stepper motors, line actuators, electric drives, and automation software. The product range offered by the company contains custom solution packages for different industries.

The AKD-P00306-NBCC-E000 digital drive produced by Kollmorgen is frequently used in servo mechanisms, synchronous motors, and induction machines. The drive belongs to the AKD series and operates on a single or three-phase power supply. Its voltage requirements are 120 V to 480 V and it supports connectivity with Sercos III, CANopen, and Analog inputs. The drive has an onboard motion bus and an IP service channel. With SFD, Resolver, and Hiperface DSL onboard, the drive becomes an ideal platform for executing servo-mechanism. Furthermore, support for EnDAT, BiSS and HIPERFACE protocols is also provided onboard. The drive is extremely useful in areas where multi-DOF (degree of freedom) machines are used because it can control motion across multiple axes at a time.

For enhanced safety and protection of equipment and working personnel, the AKD-P00306-NBCC-E000 comes with protective features like safe torque off (STO) and emergency stop switch. The drive can also be used for adding custom time delays in motion and processing Input/Output. With support for second feedback and encoder emulation, the drive can be used for a variety of servo applications. The drive provides a fully digital mode of operation with digital controllers for position, velocity, and current. The AKD-P00306-NBCC-E000 comes with many features for integrated safety that include overload protection, phase-failure detection, and short circuit protection. The temperature of the motor and drive is also monitored to avoid overtemperature failure.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Compatible Motors
Linear, synchronous, and Induction motors

Control Logic, Supply Voltage
24 V

Enclosure Protection
IP 20

Interfaces
Hiperface DSL, Comcoder, SFD, Resolver, etc

Motor Overload Protection
Foldback mechanism

Mounting Position
Vertical

Pollution Degree
Pollution level 2 as per IEC 60664-1

Safety Option
Safe Torque Off onboard

Supported Protocols
Hiperface, BiSS, and ENDAT

Ventilation
Built-in fan

AKDP00306-NBCC-E000
AKD-POO3O6-NBCC-EOOO

Fault Code	Name	Likely Cause(s)	Recommended Fix
F208	Drive Ovetemperature	Heatsink temperature exceeded limit due to poor ventilation or high ambient heat.	Improve airflow, verify cooling fan operation, reduce ambient temperature, allow drive to cool.
F212	Output Overcurrent	Motor stall, mechanical jam, shorted motor phase, or aggressive tuning.	Inspect mechanics for binding, check motor and power cables for shorts, retune current loop.
F206	DC Bus Undervoltage	Incoming AC supply sag, loose wiring, or undersized transformer.	Measure mains voltage, tighten terminals, verify supply capacity and fusing.
F207	DC Bus Overvoltage	Regenerative energy with no braking resistor or high mains voltage.	Install/verify brake resistor, enable dynamic braking, check mains voltage level.
F235	Motor Overload	Thermal model indicates motor overload from sustained high current.	Reduce load duty cycle, verify motor sizing, allow cooling time before restart.
F213	Motor Thermistor Overtemp	PTC/NTC sensor indicates excessive winding temperature.	Improve motor cooling, verify fan or blower, check temperature sensor wiring.
F300	Feedback Error	Invalid or missing encoder/resolver signals, wrong feedback type selected.	Inspect feedback connector, cable shielding, and parameter settings; replace feedback device if faulty.
F234	STO Channel Fault	Safety torqueâ€‘off channels disagree or wiring is open.	Verify STO wiring and contact status, reset safety chain, follow safety procedures.
F210	Brake Open Fault	Holding brake failed to release or brake relay fault.	Check brake supply voltage, relay contacts, and brake coil resistance.
F215	Short Circuit Detected	Short to ground or between motor phases detected by drive.	Megâ€‘ohm test motor and cables, replace damaged wiring, verify insulation.

Model	Continuous Current (A)	Peak Current (A)	Continuous Power (W)	Input Voltage	Network Interface
AKD-P00306-NBCC-E000	3	9	1 100	120/240 VAC 1-/3-φ	EtherCAT / CANopen
AKD-P00307-NBPN-0000	3	9	2 000	240/480 VAC 3-φ	PROFINET
AKD-P00606-NBCC-E000	6	18	2 000	120/240 VAC 1-/3-φ	EtherCAT / CANopen
AKD-P01207-NBCC-E000	12	30	8 000	240/480 VAC 3-φ	EtherCAT / CANopen
AKD-P02407-NBCC-E000	24	48	16 000	240/480 VAC 3-φ	EtherCAT / CANopen
AKD-P04807-NBCC-E000	48	96	32 000	240/480 VAC 3-φ	EtherCAT / CANopen

Similar Ordering Code

Fault Code	Description
F208	Drive over-temperature
F212	Output over-current
F206	DC-bus under-voltage
F207	DC-bus over-voltage
F235	I²t motor overload (thermal model)
F213	Motor thermistor over-temperature
F300	Feedback error (encoder/resolver)
F234	STO channel disagreement/fault
F210	Brake open fault
F215	Short circuit detected

Frequently Asked Questions about AKD-P00306-NBCC-E000:

Q: What are the primary use cases of the AKD-P00306-NBCC-E000?

A: The AKD-P00306-NBCC-E000 can be used with synchronous motors, induction motors, and servo mechanisms.

Q: Which power supplies are compatible with the AKD-P00306-NBCC-E000?

A: The AKD-P00306-NBCC-E000 can be used with a single phase and three phase power supply, providing flexibility for different installation settings.

Q: Does the drive support any communication interfaces?

A: The AKD-P00306-NBCC-E000 supports connectivity with the Sercos III, CANopen, and Analog inputs.

Q: Can the AKD-P00306-NBCC-E000 support control across multiple axis?

A: The AKD-P00306-NBCC-E000 is fairly useful for applications requiring multiple degrees of freedom and can support motion across multiple axis.

Q: Does the AKD-P00306-NBCC-E000 have any additional safety features?

A: The AKD-P00306-NBCC-E000 is provided with Safe Torque Option and emergency stop switch.

Internal Product Review

‘‘The AKD-P00306-NBCC-E000 is useful for servo mechanisms, induction motors, and synchronous motors. The system is compatible with a wide range of power supplies. It is also compatible with a wide range of interfacing options for increased connectivity with other platforms. ’’
