PPC-R02.2N-N-Q1-P2-NN-FW

Name: PPC-R02.2N-N-Q1-P2-NN-FW
Brand: Bosch Rexroth Indramat
Price: 363 USD
Availability: InStock
Rating: 4.6 (28 reviews)

Rated 4.6 (28 total ratings)

MPN: R911288408

No Tariffs On US Orders

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Preparing your secure checkout page...

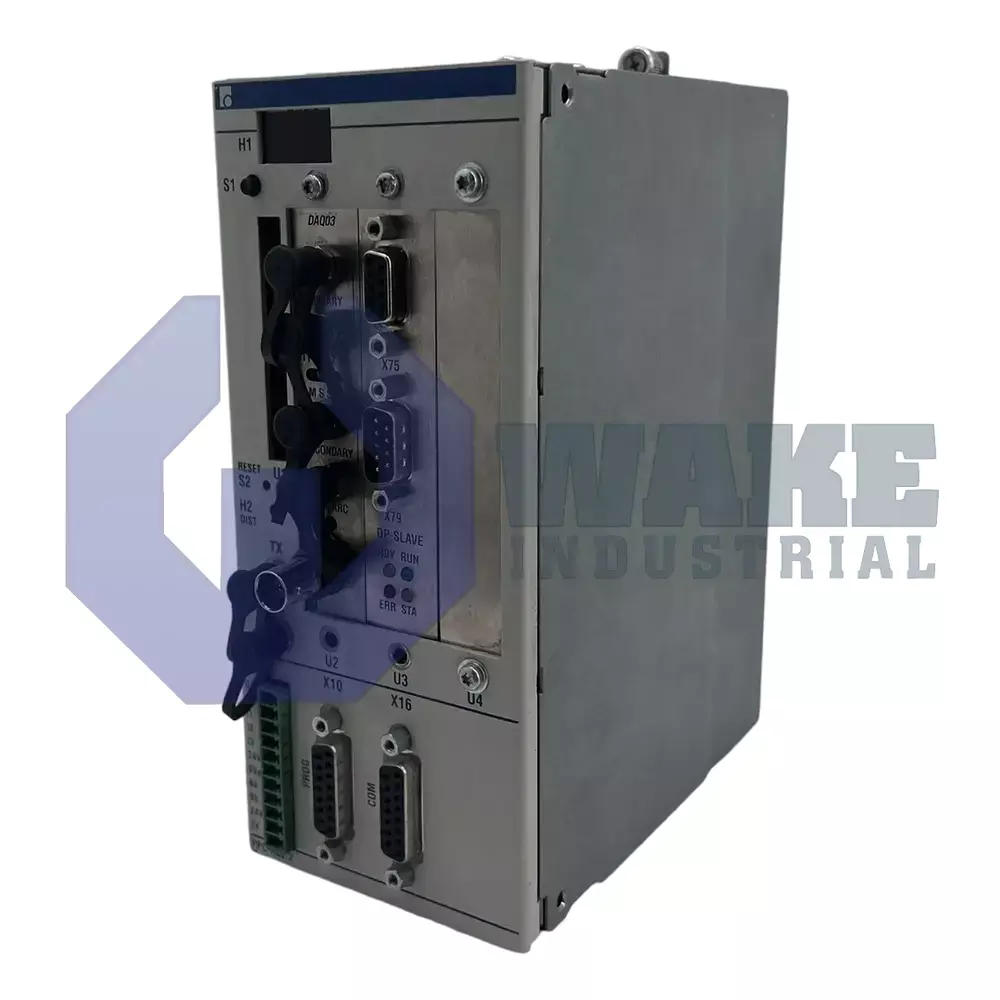

The PPC-R02.2N-N-Q1-P2-NN-FW is a controller manufactured by Bosch Rexroth Indramat. This unit is designed for installation in the RECO02 module carrier system. It has a 4-digit alphanumeric display and a PCMCIA flash card slot. The product can be mounted on TS DIN rails inside the racks.

Quote Request Form:

Phone

Part Number

Message (Optional)

Website

Include Repair Options

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

Rexroth Indramat is a great producer of controllers. This firm produces different varieties of controllers like the PPC controllers which are based on Sercos. Sercos is a worldwide standardized system which is used for communication purposes between controls and servos. Sercos provides tight communication amongst components that are essential in motion control. Sercos is a significant step forward as far as motion control is concerned and is also used in a wide range of applications. The PPC controllers are freestanding. They can use SynTop, along with Synax or Visual Motion together with GPP firmware. The Rexroth's PPC controllers have multiple axis. These controllers are considered to have motion as well as logic control.

The PPC controllers also have Reco 02 as their form factor for output as well as input modules. When these controllers are paired with visual motion, as well as logic products from Rexroth Indramat, they perfectly match with all EcoDrive03 and Diax04 drives. The PPC controllers use visual motion firmware of GPP which supports and provides all the essential multi-axis functions.

The PPC-R02.2N-N-Q1-P2-NN-FW controller manufactured by Rexroth Indramat is very powerful. This controller is small-sized and has a protection category of IP 20. Additionally, this controller has a housing version for Reco unit. It can work as an NC or PLC controller depending on an application. The PPC-R02.2N-N-Q1-P2-NN-FW controller weighs 1.3 kilograms, and its housing dimensions (B x H x D) are 83.7 mm by 192 mm by 150 mm. The operating ambient temperature for this controller is around zero to forty degrees Celsius. The storage or transportation temperature for the PPC-R02.2N-N-Q1-P2-NN-FW controller range between -25 and +70 degrees Celsius. The rated value of the power supply for this controller is 24 VDC. Its maximum current consumption on 24 VDC is 1.2 A.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Depth
150 mm

Height
192 mm

Maximum Current Consumption
1.2 A

Operating Temperature Range
0 to +40 degree centigrade

Permissible Range
19.2 ... 30 VDC (ripple factor included)

Power Supply Rating
24 VDC

Protection Rating
IP20

Storage and Transportation Temperature Range
(-25 to +75) degree centigrade

Weight
1.3 kg

Width
83.7 mm

PPCR02.2N-N-Q1-P2-NN-FW
PPCR02.2NNQ1P2NNFW
PPC R02.2N N Q1 P2 NN FW

Fault / Error Code	What It Means	Corrective Action
Power-on state stops at -08	CPU or mainboard fails its self-test during initialization, so the controller cannot proceed to phase 0	Cycle power; if the halt repeats, replace or have the PPC mainboard/CPU repaired.
F01 – SERCOS ring break	The fibre-optic loop to the drives is open; no closed light-path detected	Inspect/clean connectors, check bend radius, reseat or replace damaged fibres, then restart the PPC.
F07 – Drive addresses incorrect	Duplicate or unset SERCOS drive IDs detected on the ring	Assign unique addresses (Y-0-0002), store, and reboot the controller.
F09 – Fatal error, PPC reset necessary	A severe OS or interface fault has stopped the controller	Record the diagnostic history, power-cycle or hard-reset; if the fault reappears, reload firmware or contact Rexroth service.
F15 – Parameter not correct	One or more parameters outside limits or lists inconsistent (Y-0-0068)	Use SynTop “Restore” or manually correct/ reload the parameter set, then reboot.
F32/143 – ARCNET excessive reconfiguration	Local ARCNET bus repeatedly re-builds, indicating wiring or termination problems	Inspect ARCNET cabling and terminations, correct faulty drop, clear C-0-0057/C-0-0147 counters, and monitor.
F33/150 – Fieldbus communication impossible	The fieldbus slave board cannot initialise or maintain a link	Verify board address/jumper settings and wiring; correct, then power-cycle so the PPC can re-initialise.
C-0-0176 – Control-unit temperature high	Internal temperature has exceeded the safety limit	Improve cabinet airflow, clean filters, reduce ambient to < 45 °C, allow the controller to cool, then restart.
Y-0-0048 hardware-test error	PPC self-test detected defective hardware components	Replace the controller and return the faulty unit to Rexroth for repair.
F98 – Drive error forwarded	A connected servo drive has reported a fault to the PPC	Use SynTop to read the drive’s S-0-0095 text, clear the drive-side fault first, then reset the PPC.

Part number	Field-bus / option card(s)	Ethernet on front?	Special option	24 V DC current (A)	Weight
PPC-R02.2N-N-Q1-P2-NN-FW	Q1 = Profibus-DP master (64 byte)	No (front code “N”)	Compact-flash slot, double-width housing	1.2 A	1.3 kg
PPC-R02.2N-N-V2-NN-NN-FW	V2 = DeviceNet slave	No	Three PC/104 option sockets for extra SERCOS rings	1.2 A	1.3 kg
PPC-R02.2N-N-N1-P2-T2-FW	N1 = PLS (programmable-limit-switch) cardT2 = 10 Mb Ethernet faceplate	Yes (code “T”)	Built-in PLS outputs for 16 cams	1.2 A	1.3 kg
PPC-R02.2N-N-N1-V2-NN-FW	V2 (DeviceNet-slave) + PLS card	No	Dual-function DeviceNet + 16 cam PLS	1.2 A	1.3 kg
PPC-R02.2N-N-Q1-L2-NN-FW	Q1 (Profibus-master) + L2 Link-Ring cross-comm.	No	High-speed controller-to-controller link (32-bit parallel)	1.2 A	1.3 kg
PPC-R02.2N-N-T2-P2-NN-FW	T2 (Ethernet) + compact-flash P2	Yes	On-board 10 Base-T diagnostics	1.2 A	1.3 kg

Ordering Codes

PPC-R02.2N-N-V2-NN-NN-FW

PPC-R02.2N-N-T2-NN-NN-FW

PPC-R02.2N-N-NN-P2-NN-FW

PPC-R02.2N-N-N1-N2-P2-FW

PPC-R02.2N-N-NN-NN-NN-FW

PPC-R02.2N-N-Q1-L2-NN-FW

PPC-R02.2N-N-N1-N2-NN-FW

PPC-R02.2N-N-NN-B2-NN-FW

PPC-R02.2N-N-L2-T2-NN-FW

PPC-R02.2N-N-T2-P2-NN-FW

Error Code	What it means
F01	SERCOS fibre-optic ring is open or interrupted (ring break)
F07	Drive addresses on the SERCOS ring do not match the projected list (duplicate or unset IDs)
F08	Parameterisation tries to run more drives/functions than the current SERCOS cycle can support – “maximum number of drives exceeded”
F09	Fatal system or interface fault; controller halts and needs a power-cycle (“PPC reset necessary”)
F10	PPC-internal RAM/memory error detected by self-test
F15	One or more PPC parameters are invalid or outside limits (“parameter not correct”)
F16	Connected drive type or its firmware is not supported by the current PPC firmware
F32 (143)	ARCNET bus experiences excessive re-configuration cycles, indicating wiring or termination issues
F33 (150)	Fieldbus board cannot establish or maintain communication (“communication via the fieldbus is impossible”)
F98	A connected servo drive has forwarded its own fault to the PPC (“drive error”)
