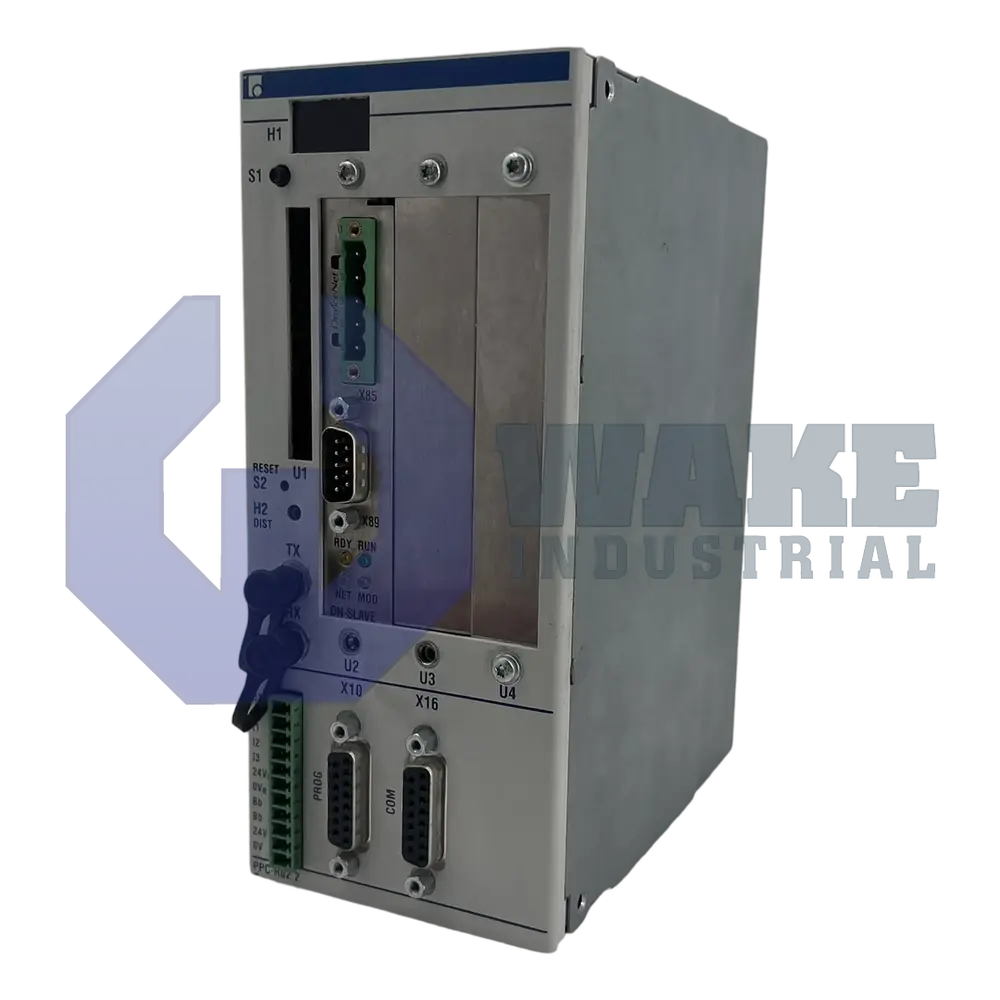

PPC-R02.2N-N-V2-NN-NN-FW Bosch Rexroth Indramat

MPN: R911286218

No Tariffs On US Orders
  • Rated 4.6 (34 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
In-Stock, Ships Today

Preparing your secure checkout page...

The Bosch Rexroth Indramat PPC-R02.2N-N-V2-NN-NN-FW is a control unit in the PPC Controllers series with a 24 VDC rated supply voltage and DeviceNet fieldbus slave interface. It weighs 1.3 kg, has a housing size of 83.7 by 192 by 150 mm, and features an IP20 protection category and RECO unit housing design.

Quote Request Form:

Warranty
Wake Industrial Warranty

To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

The PPC-R02.2N-N-V2-NN-NN-FW is a programmable control unit produced by Bosch Rexroth Indramat and supplied within the PPC Controllers series. Designed for installation inside electrical cabinets, it handles configured control and communication tasks in compatible systems. By centralizing command tasks, it keeps axis movements, sensor responses, and output switching aligned during repetitive machine cycles. This arrangement is useful in pick-and-place stations, packaging lines, and other systems that require synchronized motion, predictable timing, and efficient use of cabinet space.

The controller operates from a regulated input of 24 VDC and can draw up to 1.2 A during peak loading, so the auxiliary supply must provide adequate overhead for startup behavior and ongoing communication activity. Communication with drives and distributed I/O is handled through a DNS03 DeviceNet slave interface, allowing the host PLC to exchange parameter and status data over the CAN-based fieldbus. Protection is limited to IP20, which suits enclosed installations where the electronics are kept away from direct moisture and conductive contamination. The enclosure uses the RECO unit mechanical format, allowing snap-in mounting on standard rails and orderly spacing beside neighboring modules.

Revision 2 updates the internal electronics while keeping the external size at 83.7 × 192 × 150 mm, so the module fits control layouts arranged for the same housing footprint. The unit has no memory expansion. Its mass is only 1.3 kg, which reduces loading on DIN rails and helps maintain secure placement in dense cabinet assemblies. The compact body also leaves room for adjacent power supplies, couplers, and interface modules in panels where available mounting area is limited.

Design Version
2
Fieldbus
DeviceNet fieldbus slave interface, DNS03
Housing (w×h×d)
83.7×192×150 mm
Housing Design
RECO unit
Max Current Consumption
1.2 A
Memory Expansion
Not equipped
Product Type
Control Unit
Protection Category
IP20
Rated Supply Voltage
24 VDC
Series
2
Weight
1.3 kg
  • PPCR02.2N-N-V2-NN-NN-FW
  • PPCR02.2NNV2NNNNFW
  • PPC R02.2N N V2 NN NN FW

Frequently Asked Questions about PPC-R02.2N-N-V2-NN-NN-FW:

Q: What fieldbus interface is included on the PPC-R02.2N-N-V2-NN-NN-FW controller?

A: The PPC-R02.2N-N-V2-NN-NN-FW features a DeviceNet fieldbus slave interface with a DNS03 module.

Q: What is the rated supply voltage for the PPC-R02.2N-N-V2-NN-NN-FW?

A: This control unit operates with a rated supply voltage of 24 VDC.

Q: What is the maximum current consumption of the PPC-R02.2N-N-V2-NN-NN-FW?

A: The PPC-R02.2N-N-V2-NN-NN-FW controller has a maximum current consumption of 1.2 A.

Q: What are the housing design and dimensions of the PPC-R02.2N-N-V2-NN-NN-FW?

A: This unit has a RECO-style housing with dimensions of 83.7 × 192 × 150 mm.

Q: What protection category does the PPC-R02.2N-N-V2-NN-NN-FW controller provide?

A: The PPC-R02.2N-N-V2-NN-NN-FW is rated for protection category IP20.


Internal Product Review

  • ‘‘The PPC-R02.2N-N-V2-NN-NN-FW is a Bosch Rexroth Indramat control unit with a DeviceNet fieldbus slave interface for efficient network integration. The RECO unit housing and IP20 protection suit organized cabinet installation in controlled industrial environments. A 24 VDC rated supply and 1.2 A maximum current consumption support dependable control performance.’’
