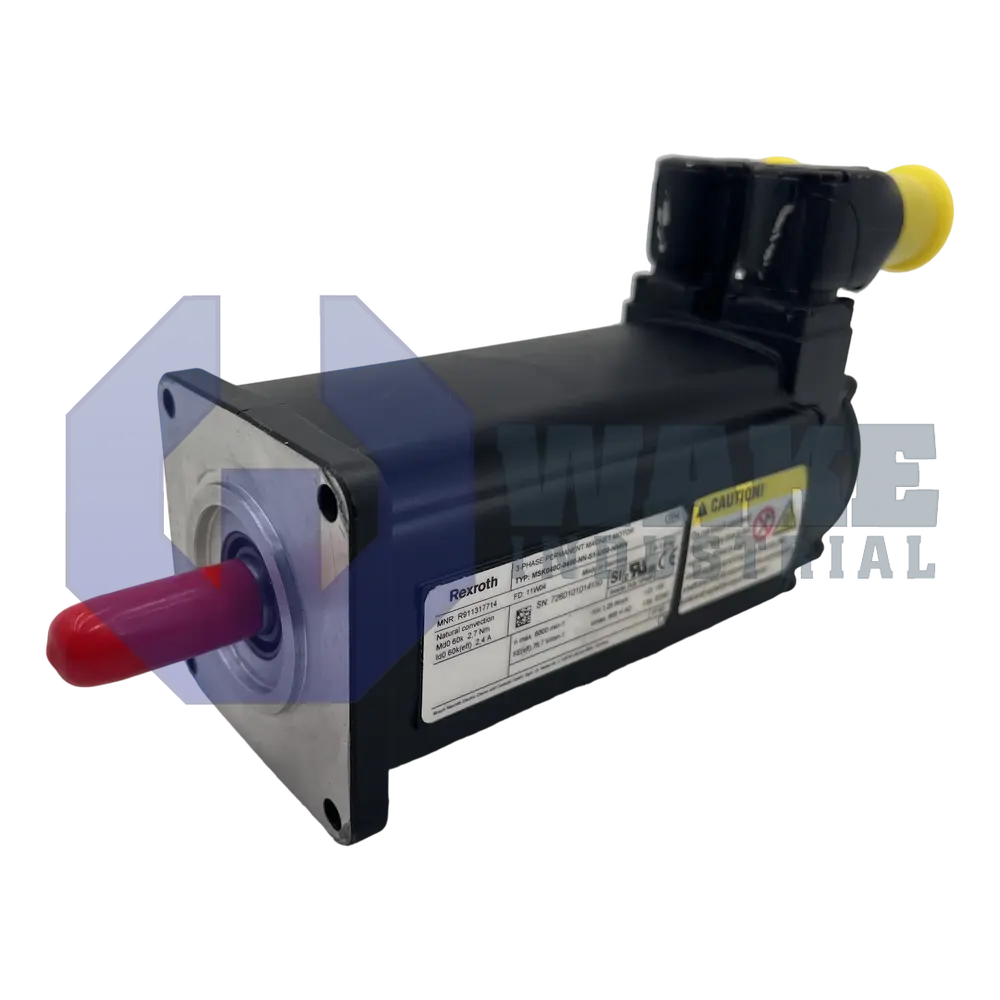

MSK040C-0450-NN-S1-UG0-NNNN

Fault / Drive Error

What it usually means

Recommended corrective action

Drive stays in “bb” (not-ready) state

24 V *Drive-Enable* or mains still missing – drive only ready-for-power-up, not ready-for-enable

Apply 24 V to the RF/Enable input, verify 230/400 V supply fuses, then issue a Class-1 reset to change status to “Ab” (ready-for-enable)

F208  “Motor-type change detected”

Connected motor’s ID does not match the data set in the drive

Upload the correct MSK040C file, execute **Basic-Load**, then power-cycle the drive

F212  “Encoder signals out of range”

Encoder sine/cosine amplitude too low or noisy (cable, shield or encoder fault)

Inspect/replace encoder cable, check grounding, keep power- and feedback-cables ≥ 100 mm apart

F218  Amplifier heat-sink over-temperature

Cabinet airflow blocked or fan failed – drive shut down

Lower ambient temperature, clean filters, verify fan, add auxiliary ventilation if required

F219  Motor over-temperature shutdown

Motor winding > 155 °C (over-load or failed cooling)

Reduce load-torque/duty cycle, allow cooldown, inspect motor-temperature wiring

F220  Bleeder-resistor over-temperature

Regenerative energy above resistor rating

Lengthen decel ramp, add or up-rate the braking resistor module

F226  DC-link undervoltage

while enabled

Mains sag or weak DC-bus capacitors

F228  Excessive control deviation

Command ≠ feedback (axis jam or poor tuning)

Check mechanics for binding, reduce acceleration, re-tune position loop (P-gain), redo reference move

F229  Encoder quadrant error

Wrong edge sequence / noisy encoder

Reseat connector, replace cable; if error persists, swap motor encoder

F230  Max. encoder-1 signal frequency exceeded

Axis driven faster than encoder interface rating

Check gearing & speed parameters; fit higher-speed encoder if motion profile demands it

F234  Emergency-Stop active

+24 V removed at E-Stop input – drive decelerated

Trace safety chain, clear E-Stop, restore 24 V, then reset drive

Part number

Continuous torque (Nm, 100 K)

Peak torque (Nm)

Max speed (rpm)

Cont. current (A)

MSK040C-0450-NN-S1-UG0-NNNN

3.1

8.1

6000

3.1

MSK040B-0450-NN-M1-UG0-NNNN

1.7

5.1

6000

1.7

MSK040C-0600-NN-S1-UG0-NNNN

3.1

8.1

7500

3.1

MSK050C-0600-NN-M1-UG0-NNNN

5.5

15

6000

6.2

MSK030C-0300-NN-M0-CG0

1.3

3.8

5000

1.5

MSK060C-0600-NN-M1-UG1-NNNN

9.5 ≈

24 ≈

6000

6.8 ≈

Similar Ordering Codes

MSK040C-0450-NN-M1-UG0-NNNN

MSK040C-0450-NN-M1-UG1-NNNN

MSK040C-0450-NN-M3-UG1-NNNN

MSK040C-0450-NN-M2-UG1-NNNK

MSK040C-0450-NN-S3-UG0-NNNN

MSK040C-0600-NN-M1-UG0-NNNN

MSK040C-0600-NN-M3-UG0-NNNN

MSK040C-0600-NN-S2-UG0-NNNN

MSK040B-0450-NN-M1-UG0-NNNN

MSK040C-0450-NN-S1-UG1-NNNN

Error Code

What it Means (field-service shorthand)

F207

Switching to an un-initialised operating mode (one of S-0-0032…35 = 0) :contentReference[oaicite:1]{index=1}

F208

Motor-type change detected – drive data ≠ motor ID tag :contentReference[oaicite:2]{index=2}

F218

Drive heat-sink over-temperature – amplifier shut down :contentReference[oaicite:3]{index=3}

F219

Motor over-temperature (> 155 °C) – immediate stop :contentReference[oaicite:4]{index=4}

F220

Bleeder-resistor over-temperature – regen overload :contentReference[oaicite:5]{index=5}

F226

DC-link undervoltage while enabled – mains sag / weak capacitors :contentReference[oaicite:6]{index=6}

F228

Excessive control deviation – following-error too large :contentReference[oaicite:7]{index=7}

F229

Encoder-1 failure – quadrant error (cable / EMI / interface) :contentReference[oaicite:8]{index=8}

F230

Max. encoder-1 signal frequency exceeded – axis ran too fast :contentReference[oaicite:9]{index=9}

F234

E-Stop activated (+24 V removed at safety input) :contentReference[oaicite:10]{index=10}
