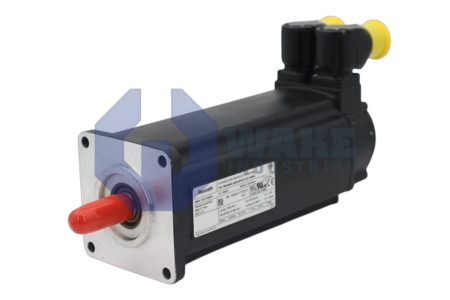

MSK040C-0600-NN-M1-UG0-NNNN

 Rated 4.7 with 13 reviews

Description:

MSK Series Synchronous Motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Winding Code of 600 along with a Cooling Mode of Natural Convection.

Available, Call for Quote
Request a Repair
Warranty Shipping Repairs Exchange
1 Year Wake Industrial Warranty included Worldwide shipping via DHL, UPS, and Fedex Repair options are available for this unit Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

Phone

1-800-551-3082

International

919-443-0207

Bosch Rexroth is a world leader when it comes to highly customizable drive controllers, high-quality power cables and synchronous motors. By the use of modern technology and highly specialized engineering and mechanical practices, Rexroth is able to attract innumerable customers from various parts of the world. The highly advanced synchronous motor models such as the MSK040C-0600-NN-M1-UG0-NNNN have particular technical information details that you need for successful transport, mounting, and storage of your motors. That said, we will focus on offering that technical information to enhance your safety and the durability of the MSK040C-0600-NN-M1-UG0-NNNN motor as you use the natural cooling method.

The MSK0600-NN-M1-UG0-NNNN motor requires 2.7 Nm of continuous torque at standstill of 60K and a continuous current of 3.1A when stationary and operating at 60K. When the motor is at standstill but at 100K, then the continuous current will be unavailable but the continuous torque will be 3.1Nm. The maximum current for the motor to operate optimally is 12.4A and the maximum torque is 8.1Nm. At 20°C, the MSK0600-NN-M1-UG0-NNNN motor has a constant voltage of 58.2 V/min-1, a torque constant of 0.95Nm/A and a winding resistance of 3.90 Ohms. The motor requires a winding inductivity of 21.300Mh. The component has a leakage capacitance of 2.0Nf with 4 pole pairs for maximum performance.

The moment of inertia of the Indramat MSK0600-NN-M1-UG0-NNNN motor rotor without any break is 0.00014 kg*m2 with a thermal time constant of 16 minutes. It is estimated that the motor’s speed is 7500 min-1 and a sound pressure of less than 75dB[A]. During operation, the ideal temperature is 0 to 40 °C. The insulation class EN 60034-1 of the motor is F while the degree of protection is IP65.

Product: MSK
Size: 040
Length: C
Winding: 0600
Cooling Mode: Natural Convection
Encoder: Optical encoder, multiturn hiperface, with 128 increments
Electrical Connection: Plug, rotatable 240 degrees
Shaft: Plain shaft with shaft sealing ring (standard)
Holding Brake: Without holding brake
Other Design: None
