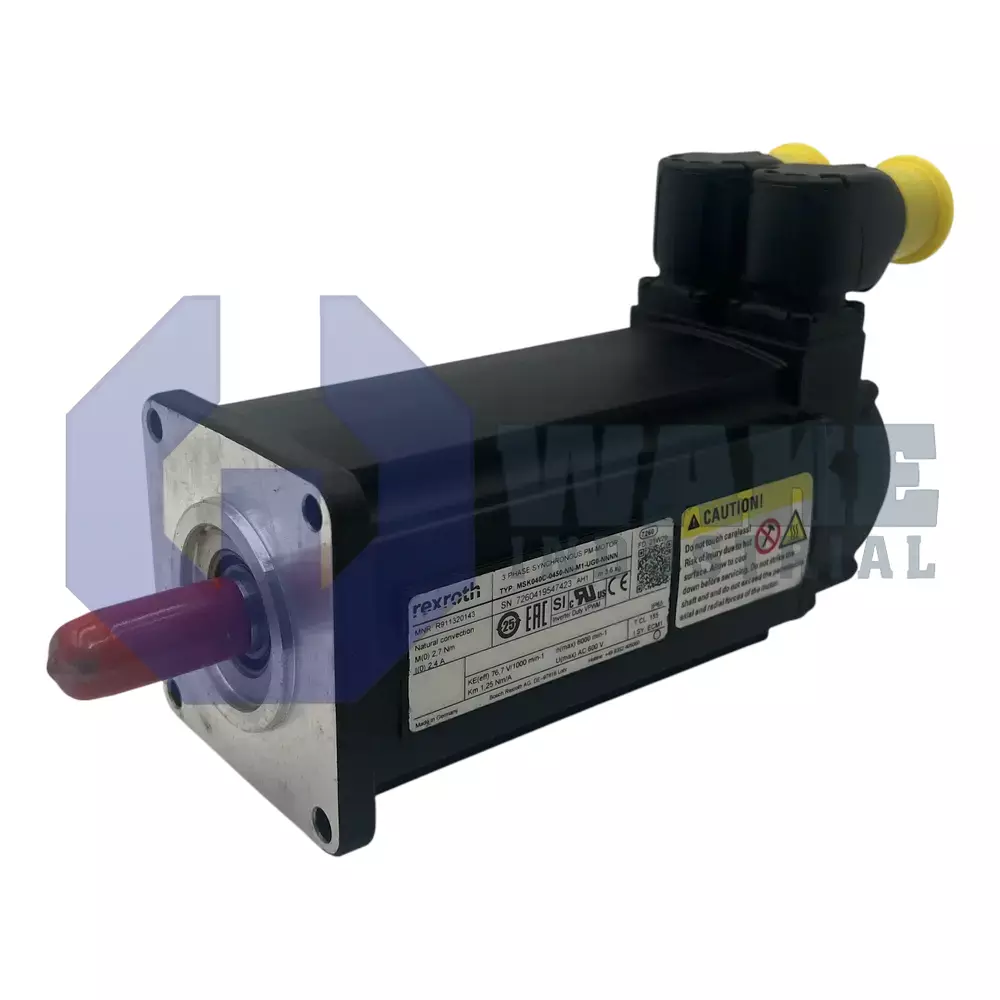

MSK040C-0450-NN-M1-UG0-NNNN

 Rated 4.7 with 6 reviews

Description:

MSK Series Synchronous Motors manufactured by Indramat, Bosch, Rexroth. This Motor features a Winding Code of 450 along with a Cooling Mode of Natural Convection.

Available, Call for Quote
Request a Repair
Warranty Shipping Repairs Exchange
1 Year Wake Industrial Warranty included Worldwide shipping via DHL, UPS, and Fedex Repair options are available for this unit Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

Phone

1-800-551-3082

International

919-443-0207

Merging classical manufacturing techniques and developments of synchronous servomotors with the latest developments in motor technology has driven Rexroth to develop new standard for the servo motor.  Their IndraDyn S servomotors have been succesfulling implemented into thousands of end-users’ setups and are well known by their dynamics with high accuracy. This is highly attributed Rexroth Indramat’s latest optical encoder systems.

Rexroth has developed a special motor line designed for the most common applications. These motors can work in several ways. They can either be like a singular linear drive or come in a complete kit motor. MSK motors line by Rexroth is more likely to work from metal forming machines and printing machines. The adaptation for several drive power for different scenarios is possible with special interfaces.

The characteristic curves and particular designs are divided into two different modes, 60 K and 100k temperature stroke modes, both of them with different temperature stroke behavior.

The 60K mode holds an insulated flange construction in its temperature stroke on the housing made by aluminum. The 100K mode in its temperature stroke on the winding is not insulated. The MSK040C-0450-NN-M1-UG0-NNNN has a standstill continuous torque with a maximum of 8.1 Nm which can be outputted for approximately 400 ms. It has a maximum current of 12.4 A without affecting the constant magnetic motor circuit. It has a inductivity of 21300 mH, measured between the end of the windings and  4 pairs of motor poles reaching a maximum speed of 7500 RPM with an IP65  protection. The maximum axial force is 200N, which will be directly proportional to the radial force in our system. In order to control and have regular monitoring on the motors, extra devices like sensors or actors will be needed. It is important to configure every drive controller before any startup, to allow the motor to work properly.

Product: MSK
Size: 040
Length: C
Winding: 0450
Cooling Mode: Natural Convection
Encoder: Optical encoder, multiturn hiperface, with 128 increments
Electrical Connection: Plug, rotatable 240 degrees
Shaft: Plain shaft with shaft sealing ring (standard)
Holding Brake: Without holding brake
Other Design: None
Revisions
MSK040C-0450-NN-M1-UG0 MSKO4OC-O45O-NN-M1-UGO-NNNN MSK040C 0450 NN M1 UG0 NNNN
MSK-040C-0450-NN-M1-UG0-NNNN MSKO40C-0450-NN-M1-UG0-NNNN MSK040C0450NNM1UG0NNNN
MSK040C-0450-NN-MI-UG0-NNNN MSK 040C-0450-NN-M1-UG0-NNNN
