Product Description:

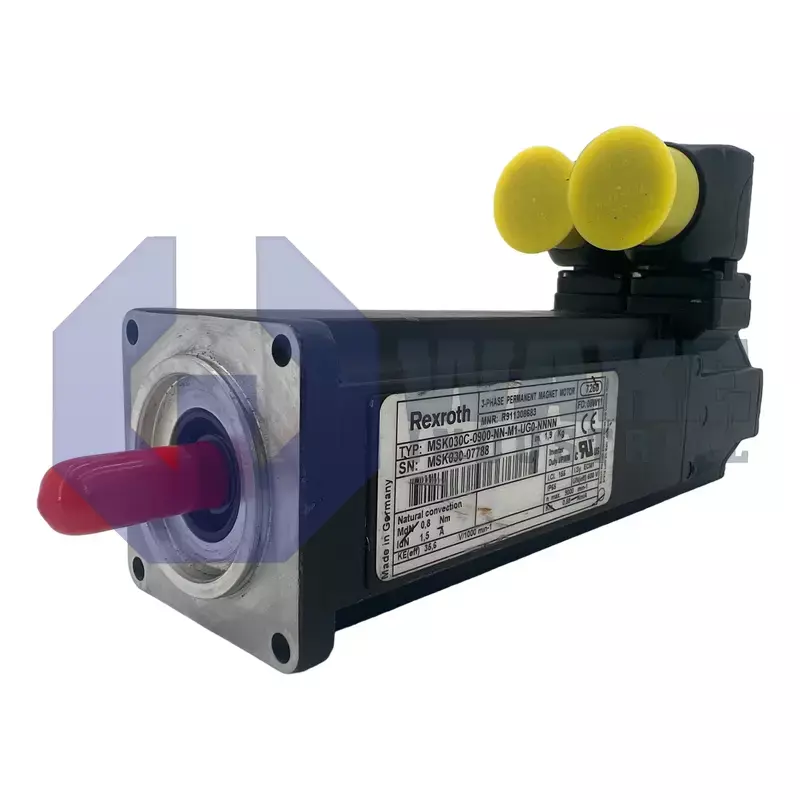

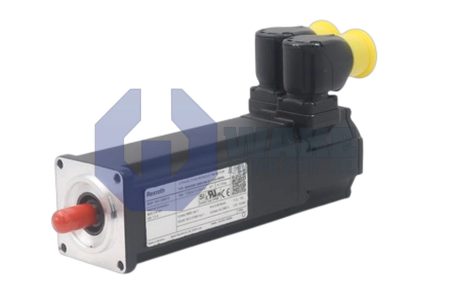

The MSK030C-0900-NN-M1-UG0-NNNN is a synchronous servomotor built by Bosch Rexroth Indramat and belongs to the MSK IndraDyn S Synchronous Motors series. As a compact rotary actuator, the unit converts electrical energy from a drive controller into precise mechanical motion for positioning tasks in pick-and-place stations, packaging lines, and other automated axes. Its standard design and size 030 stator allow the motor to fit tight machine layouts while maintaining the torque density expected from the IndraDyn S platform. This compact format supports use on axes where installation space is limited but accurate speed and position control are still required.

The motor relies on natural convection for thermal management, so heat is carried away through the frame without forced air or liquid lines. A rotatable, 240° encoder connector allows the plug position to be adjusted within that arc, which helps with cable routing in confined spaces. Feedback is transmitted through the Hiperface digital interface, supporting automatic parameter detection between the motor and the drive. Inside the feedback module, an optical sensor produces 128 signal periods, giving fine incremental data for smooth velocity control. The sensing method is optical, so position is detected by a light-grid disc and photodiodes rather than magnetic tracks.

The encoder stores up to 4096 shaft revolutions in multiturn absolute format, so an external homing routine is not required after power cycles. Motion is transmitted through a plain shaft, which is suitable for clamp or friction couplings when low backlash is needed. The motor is supplied without a holding brake, making it appropriate for continuous-duty applications that do not need static torque at power off. Winding set 0900 identifies the electrical characteristics used by the connected IndraDrive controller for current control. This combination of feedback and shaft configuration supports precise motion on compact servo axes used in automated equipment.
