MHD093C-035-PG1-AA

Name: MHD093C-035-PG1-AA
Brand: Bosch Rexroth Indramat
Price: 405 USD
Availability: InStock
Rating: 4.5 (13 reviews)

Rated 4.5 (13 total ratings)

MPN: R911287343

Unused Original Box Pricing Available!

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Preparing your secure checkout page...

MHD093C-035-PG1-AA is a servo motor. It supports digital servo feedback. Speed rating of the motor is 2500 RPM.

Phone

Part Number

+Add a message

Message

Website

Request a Replacement Request a Repair Quote Both

Have a part to sell?

Wake Industrial Warranty

To contact sales for pricing and lead time:

Phone: 1-888-551-3082

International: 1-919-443-0207

Email: sales@wakeindustrial.com

Payment Methods

Shipping Methods

Our Credentials

Product Description:

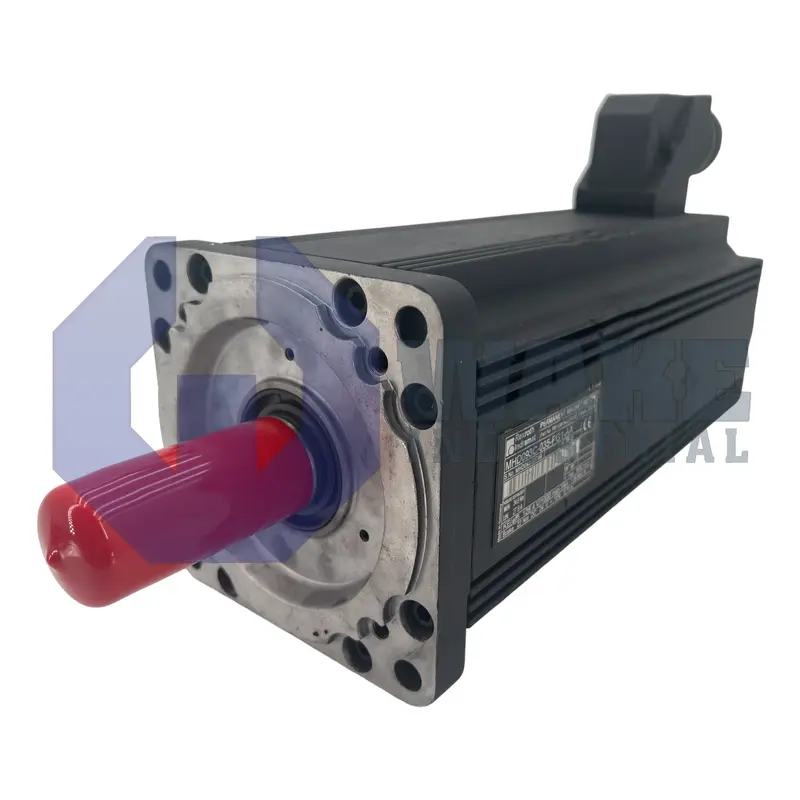

MHD093C-035-PG1-AA is a Bosch MHD series servo motor. It is a synchronous motor: the motor shaft speed is synchronized to the input current frequency. Other features of the motor are support for digital servo feedback, power connection on side A of the housing, electronic commutation, life-time lubricated bearings, and IP65 rated housing. MHD motors support an optional holding brake. The MHD093C-035-PG1-AA motor is equipped with a 22 Nm holding brake. Rated voltage for the brake is 24 Volts DC and the rated current is 0.71 Amps. Moment of inertia of the brake is 0.00036 kg m2. The connection time is 25 milliseconds and the disconnection time is 50 milliseconds. Mass of the holding brake is 1.1 kilograms. The MHD093C-035-PG1-AA motor has a plain shaft with shaft seal. The IP65 rated motor housing provides robust ingress protection.

Operators can operate the motor with either convection cooling or surface cooling. The continuous torque at standstill is 23 Nm with convection cooling and 34.5 Nm with surface cooling. The continuous current at standstill is 18.3 Amps with convection cooling and 27.8 Amps with surface cooling. The rated motor speed is 2500 RPM with both cooling methods. The rated torque is 9.1 Nm with convection cooling and 26.2 Nm with surface cooling. The rated current is 5.2 Amps with convection cooling and 14.9 Amps with surface cooling. Power output of the motor is 2.9 kilowatts with convection cooling and 8.5 kilowatts with surface cooling. Moment of inertia of the motor rotor is 0.003 kg m2. Mass of the motor is 23.5 kilograms and the size of flange is 140 millimeters. Only trained and experienced technical personnel should handle the motor.

Specs
Revisions
Common Troubleshooting Steps
Product Comparison
Similar Ordering Codes
Common Error Codes

Cooling
Natural convection and surface cooling

Encoder
Digital servo feedback

Flange size
140 millimeters

Holding brake
Yes

Manufacturer
Bosch Rexroth

Power connector
Side A

Product type
Synchronous motor

Protection rating
IP65

Shaft
Plain

Shaft seal
Yes

MHD093C035PG1AA
MHD093C 035 PG1 AA
mhd093c-035-pg1-aa
MHD93C-035-PG1-AA

Typical drive / motor fault code	What it means	Practical corrective action
F218 – Amplifier heatsink over-temperature	Power stage in the drive exceeded ≈ 95 °C and shut down to protect itself	Let the unit cool, clear dust from fins, check cabinet airflow, verify fan operation.
F219 – Motor over-temperature	PTC/NTC inside the stator tripped at ≈ 155 °C	Reduce mechanical load or duty-cycle, confirm ambient ≤ 40 °C, inspect blower path.
F220 – Bleeder resistor overload	Dynamic-braking resistor overheated during regen decel	Lengthen decel ramps, add a larger or forced-air bleeder, check wiring.
F221 – Motor-temperature monitor defective	Temp-sensor circuit open/short → supervision lost	Megger PTC leads, repair cable breaks, replace sensor if resistance is wrong.
F226 – DC-bus undervoltage	Link voltage dropped below safe minimum	Inspect mains fuses and wiring, stabilise supply, check supply/regen modules.
F230 – Encoder 1 max-frequency exceeded	Motor encoder signal frequency above interface limit (overspeed or noise)	Verify speed parameters, check for runaway axis, replace damaged feedback cable.
F234 – Emergency-stop activated	+24 V removed at E-Stop input; drive executed controlled stop	Trace E-Stop chain, restore control voltage, reset safety relay.
F236 – Excessive position-feedback difference	Two feedback channels deviate beyond window S-0-0391	Realign external encoder, tighten couplings, set correct resolution parameters.
F242 – Encoder 2 signal too small	Optional external sin/cos amplitude < 1 V	Re-route or replace cable, improve shielding, verify 5 V/12 V encoder supply.
F401 – “Double MST” SERCOS loss	Two consecutive master-sync telegrams missing; drive shut down	Clean fibre-optic links, check light attenuation < 12.5 dB, reseat SERCOS boards.

Model	Frame / length	Continuous stand-still torque (Nm)	Rated / max speed (RPM)	Holding brake	Feedback type	Cooling
MHD093C-035-PG1-AA (baseline)	093 C	23.0	2 500 / 4 500	Yes 22 Nm	Digital SF – absolute (PG)	Natural convection
MHD093C-035-PG0-AA	093 C	23	2 500 / 4 500	No	Digital SF – absolute (PG)	Natural convection
MHD093B-035-PG1-AA	093 B	17.5	2 500 / 4 500	Yes 22 Nm	Digital SF – absolute (PG)	Natural convection
MHD093C-058-PG1-AA	093 C	23.0	3 500 / 6 000	Yes 22 Nm	Digital SF – absolute (PG)	Natural / surface
MHD093A-058-PP0-AA	093 A	12.0	3 500 / 6 000	No	Digital SF – absolute (PP)	Natural convection
MHD093C-035-NG1-AA	093 C	23.0	2 500 / 4 500	Yes 22 Nm	Digital SF – relative (NG)	Natural convection

Ordering codes

MHD093C-035-PG0-AN/S020

Error code	Meaning
F218	Amplifier heatsink over-temperature shutdown
F219	Motor over-temperature shutdown (PTC/NTC tripped)
F220	Bleeder (dynamic-brake) resistor overload shutdown
F222	Drive over-temperature monitor defective
F226	DC-bus undervoltage (mains dip or supply loss)
F230	Max. signal frequency of encoder 1 exceeded (overspeed/noise)
F234	Emergency-stop activated / +24 V removed
F236	Excessive position-feedback difference between channels
F242	Encoder 2 failure – signal amplitude too small
F405	“Error during phase regression” – SERCOS ring fault

Frequently Asked Questions about MHD093C-035-PG1-AA:

Q: What is torque rating for the holding brake?

A: Torque rating for the holding brake is 22 Nm.

Q: What is the weight of the holding brake?

A: Weight of the holding brake is 1.1 kilograms.

Q: What is the operating temperature?

A: The operating temperature for MHD motors is 0 to 40 degrees Celsius.

Q: What is the peak motor current?

A: The peak motor current is 83.5 Amps.

Q: What is the peak motor speed?

A: The peak motor speed is 4500 RPM.

Internal Product Review

‘‘The MHD093C-035-PG1-AA from Bosch Rexroth Indramat is a robust motor with IP65 rated housing that operators can deploy in adverse operating conditions. It makes for a great choice when upgrading in austere environments.’’
