Product Description:

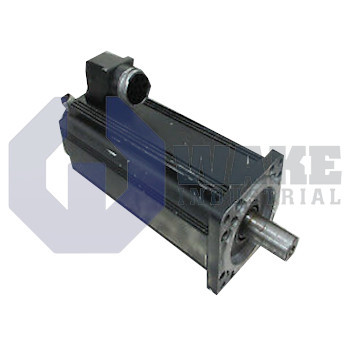

The MHD093C-035-NP0-AA belongs to the MHD Synchronous Motors series manufactured by Bosch Rexroth Indramat. It is a servo motor intended for industrial automation axes that require position-controlled rotary power. By combining an optical measurement method with relative position detection, the unit integrates easily with compatible drive controllers used in factory machinery and material-handling systems. Its feedback arrangement supports precise rotary motion in applications that need stable speed control and accurate position response.

This motor can deliver a continuous standstill torque of 23.0 Nm, which supports sustained load at zero speed under rated conditions. The housing carries an IP65 protection rating, so dust and low-pressure water jets do not interfere with operation. Rotor position is reported through digital servo feedback (HSF), allowing fast closed-loop updates through the output connector on flange side A. The motor uses a flange pattern of 140 / 150 mm and a centering diameter of 130 mm to align the C-length 093-frame stator with gearboxes or machine plates. Heat is removed by natural convection, so no forced-air accessories are required.

Windings use Class F insulation, and the unit maintains rated performance across an ambient range of 0 to 40 °C; storage is permitted from -20 to +80 °C. A keyed shaft with a shaft seal helps transmit torque securely while limiting lubricant migration along the output end. System resolution remains within ± 0.5 angular minutes, supporting fine contouring tasks when the motor is installed below 1000 m above mean sea level. Power is routed to side A through an output connector, which keeps the motor connections grouped at the flange end. The design omits a holding brake, so any load that must remain fixed at standstill needs external holding force.
