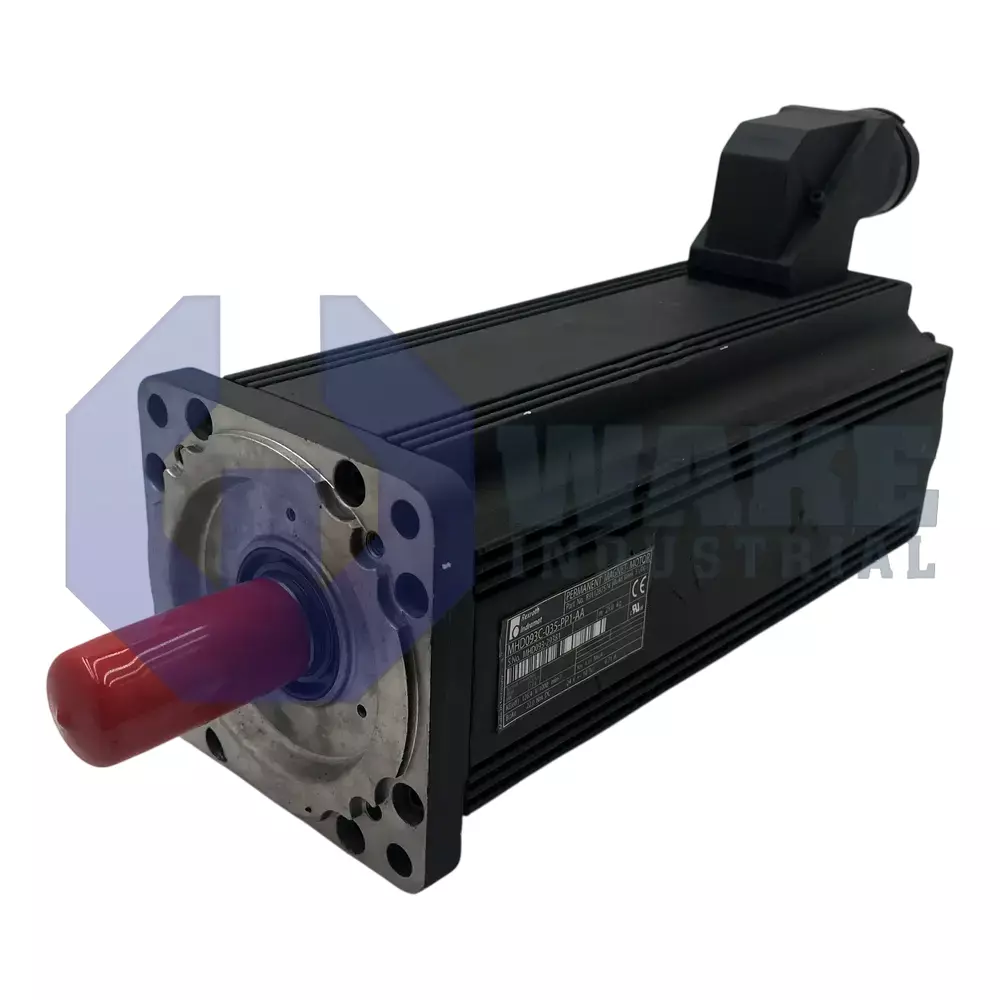

MHD093C-035-PP1-AA Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911287574
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
28 Seconds
The Bosch Rexroth Indramat MHD093C-035-PP1-AA is a servo motor part of the MHD Synchronous Motors series with a continuous standstill torque of 23.0 Nm and a holding brake with 22.0 Nm of torque. It features IP65 protection, insulation class F, and a keyed shaft with a centering diameter of 130 mm. The motor uses digital servo feedback with an integrated encoder for absolute position detection and natural convection for housing cooling.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MHD093C-035-PP1-AA synchronous servo motor is produced by Bosch Rexroth Indramat within the MHD Synchronous Motors series. This model converts electrical power into controlled torque for axes that need precise speed and position regulation in automated packaging, assembly, or material-handling equipment. A digital servo feedback encoder is integrated into the housing so the drive controller receives real-time position data, while the keyed shaft provides mechanical coupling to pulleys or gearheads. The combination of integrated feedback, torque density, and compact dimensions makes the unit suitable for use as a core rotary actuator in multi-axis systems.
Mechanical output at zero speed reaches 23.0 Nm of continuous torque, allowing the motor to hold loads without overheating. The enclosure carries a protection rating of IP65, which blocks dust ingress and helps resist water jets. An integrated holding brake supplies 22.0 Nm of static torque so vertical axes can remain locked when power is removed. Heat inside the stator dissipates by natural convection, eliminating the need for forced air. The windings use Class F insulation for thermal endurance up to 155 °C, and power leads exit toward side A through a sealed output connector.
The motor operates reliably from 0 to 40 °C, and storage is permitted down to -20 °C. System accuracy is rated at ± 0.5 angular minutes, based on the optical measurement method used with the encoder. A centering diameter of 130 mm and a flange pattern of 140 / 150 mm align the housing with standardized machine faces, while a shaft seal helps block coolant splash during washdown. Position detection uses absolute feedback for more than 4096 revolutions, which eliminates homing routines after power-up. Maximum installation altitude is 1000 m, and extended storage is permitted up to +80 °C when the windings are protected.
Frequently Asked Questions about MHD093C-035-PP1-AA:
Q: What type of shaft design does the MHD093C-035-PP1-AA servo motor use?
A: The MHD093C-035-PP1-AA features a keyed shaft that ensures secure torque transmission.
Q: What level of environmental protection does the MHD093C-035-PP1-AA provide?
A: This servo motor is rated with IP65 degree of protection, so it is protected against dust and low-pressure water jets.
Q: What type of feedback system is included in the MHD093C-035-PP1-AA servo motor?
A: The motor utilizes digital servo feedback with an integrated encoder for precise operation.
Q: What is the continuous torque at standstill of the MHD093C-035-PP1-AA?
A: The continuous torque at standstill for this model is 23.0 Nm, making it suitable for demanding applications.
Q: Does the MHD093C-035-PP1-AA include a holding brake, and what is its torque?
A: This model comes equipped with a holding brake that provides 22.0 Nm of holding torque for secure position holding.
