HDD02.2-W040N-HD32-01 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911288990
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

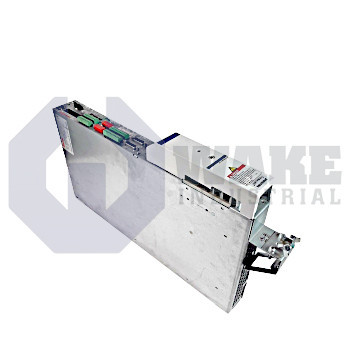

The Bosch Rexroth Indramat HDD02.2-W040N-HD32-01 is part of the HDD Drive Controllers series and supports two axes with a peak current of 40 Amps per axis. This controller features SERCOS command interface, two analog diagnostic outputs, and cooling by internal air blower. It has a protection rating of IP10 and weighs 8 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The HDD02.2-W040N-HD32-01 drive controller is produced by Bosch Rexroth Indramat as part of the HDD Drive Controllers series. It is intended for coordinated multi-axis servo control from a compact housing, supplying regulated current and encoder signal processing for precise motion. When installed in a multi-axis cabinet, the unit links the power stage with the motion control layer and converts motion commands plus feedback signals into pulse-width-modulated output, allowing equipment such as pick-and-place gantries, packaging lines, and tooling stations to position quickly and repeatably. Its dual-channel layout keeps related axis functions in one module when synchronized motion is required.
Each controller section governs one motor channel, giving an axis count of 2. Command data enter over the fiber-optic SERCOS interface, which helps reduce electrical noise inside the cabinet. Continuous current capability depends on switching rate: at 4 kHz the unit delivers 15 A per axis, while the higher 8 kHz carrier is limited to 10 A per axis to limit thermal rise. For short acceleration bursts, the current can climb to 40 A per axis. Heat generated by the IGBT stack is removed by an internal air blower, and rated-current losses reach 110 W on each channel. The front panel includes two analog diagnostic outputs and status LEDs, and the enclosure meets IP10 for use inside closed electrical cabinets.
The controller operates in ambient temperatures up to +55 °C when airflow around the unit is not blocked. Installation is approved to a maximum altitude of 1000 m above sea level. Signal processing power is drawn from the ±26 V bus, adding 40 W to cabinet supply calculations, and the second-channel encoder port accepts 1 Vpp sinusoidal feedback for high-resolution position loops. The unit has a total mass of 8 kg, which keeps cabinet mounting loads relatively low.
Frequently Asked Questions about HDD02.2-W040N-HD32-01:
Q: How many axes does the HDD02.2-W040N-HD32-01 drive controller support?
A: The HDD02.2-W040N-HD32-01 controller supports two axes of motion control.
Q: What command interface does the HDD02.2-W040N-HD32-01 use?
A: This drive controller uses a SERCOS command interface for communication.
Q: What is the peak current for each axis of the HDD02.2-W040N-HD32-01?
A: The HDD02.2-W040N-HD32-01 has a peak current rating of 40 A per axis.
Q: What cooling method does the HDD02.2-W040N-HD32-01 utilize?
A: Cooling is provided by an internal air blower in this model.
Q: How many analog diagnostic outputs are available on the HDD02.2-W040N-HD32-01?
A: This unit has two analog diagnostic outputs for monitoring purposes.
