DKR02.1-W200N-BE32-01-FW

MPN: R911274121

No Tariffs On US Orders
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships Today

Preparing your secure checkout page...

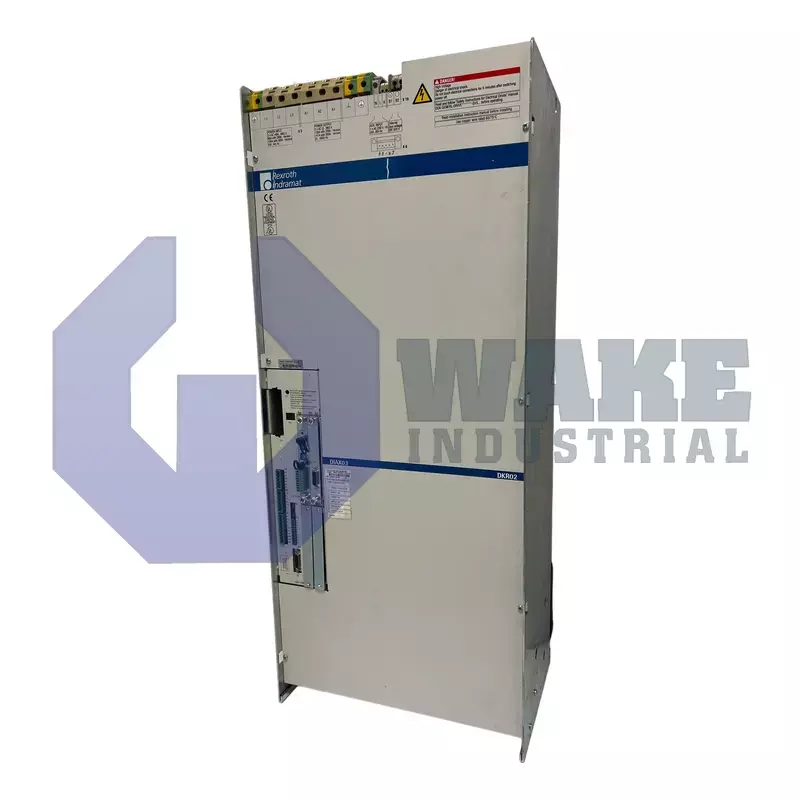

The DKR02.1-W200N-BE32-01-FW Drive Controller is manufactured by Rexroth Indramat Bosch. This drive controller operates with a rated current of 200 A, a Built-in Blower cooling mechanism, its command communication interface is SERCOS and it is Not Equipped with a bleeder.

Quote Request Form:

Warranty
Wake Industrial Warranty
To contact sales for pricing and lead time:

Payment Methods

Visa
Mastercard
AmEx
Wire Transfer

Shipping Methods

DHL
UPS
FedEx
Freight

Our Credentials

Cary Chamber
DUNS Registered
SAM Registered
BBB Accredited

Product Description:

Bosch Rexroth is a worldwide supplier of various automation products. The company produces sustainable and affordable products for its customers.

The DKR02.1-W200N-BE32-01-FW model is developed to provide high operational reliability in various industrial sectors such as machine tools, handling systems, printing machines, and robotics. It is mainly used to control and monitor the operations of Indramat AC electrical motors. The model is equipped with an RS-232 serial interface for connecting VT-terminals or PC and the error/faults can be diagnosed via an H1 status display. The DKR02.1 drive controller is equipped with a built-in power supply module that takes electrical connection directly from the 3-phase power source and the rated current requirement for this model is 200 A. The AC 3 × 400 – 480 V of supply voltage is required to operate the drive controller. The DKR02.1 drive controller comes with a 4/8 kHz drive which operates at the power voltage of 0 – 380 V with the system frequency of 800/1600 Hz. The current requirement for the 4/8 kHz drive is 120/95 A with a continuous power delivery of 47/37 kW.

The model DKR02.1-W200N-BE32-01-FW is trusted by our customers around the globe and it is widely used to produce efficient motion control systems. The basic unit of the drive controller consists of 5 plug-in slots. U1 slot is equipped with a SERCOS interface whereas, a digital servo and resolver feedback is installed in this model. The operating software of the controller is installed into the firmware module (ESM 02.3) which can be mounted into the U5 slot of the basic unit. The controller housing comes under IP 20 protection category and it can operate ideally at the maximum altitude of 1000 m/sea level. The maximum bearable temperature for the DKR02.1 drive controller is +55 degree Celsius, with derating. Wake Industrial provides state-of-the-art industrial automation products to its clients along with a one-year replacement warranty.

Bleeder
Not Equipped
Continuous Power for 4 KHz
47 kW
Continuous Power for 8 KHz
37 kW
Current Rating
200 A
Current Requirement for 4 KHz
120 A
Current Requirement for 8 KHz
95 A
Operating Temperature Range
0 to +45 degree centigrade
Protection Rating
IP20
SERCOS Interface
Available
Supply Voltage Required
3 × 400 – 480 V
  • DKR021W200NBE3201FW
  • DKR02 1 W200N BE32 01 FW
  • dkr02.1-w200n-be32-01-fw
  • DKR2.1-W200N-BE32-01-FW
Fault / Error Code What it Means Corrective Action
F2-05 Drive tried to switch into an operating mode that has not been initialized Load the correct operating mode in parameters S-0-0032…0035, save, then issue Reset Class 1 Diagnostics or cycle power.
F2-18 Heatsink temperature exceeded shutdown limit Lower cabinet ambient ≤ 45 °C, verify blower airflow, clean filters; replace fan or relocate drive if cooling cannot be restored.
F2-19 Motor thermal sensor signalled over-temperature Reduce load or duty cycle, inspect motor blower path, check temperature-sensor wiring, allow cool-down and re-enable.
F2-20 Internal brake/bleeder resistor overheated due to excess regenerated energy Extend decel ramps or add an external brake resistor; clear fault and restart.
F2-26 DC-bus undervoltage detected while drive was enabled Check mains for brown-outs, verify “Drive Enable” is removed before power loss; restore supply and reset.
F2-28 Following-error (position deviation) exceeded permissible window Reduce commanded accel/decel, verify mechanics for binding/backlash, retune velocity/position loops.
F2-29 Encoder 1 quadrant-error (signal plausibility fault) Inspect encoder cable routing, separate from power lines, replace encoder or interface card if error persists.
F2-30 Encoder 1 signal frequency above interface limit Lower maximum speed or fit encoder with fewer pulses-per-revolution; clear fault and resume.
F2-33 External +24 V control-supply missing/out of tolerance Verify 24 V supply capacity, tighten terminals, replace PSU if sag detected; reset once stable.
F2-34 Emergency-Stop chain opened (+24 V removed at E-Stop input) Investigate E-Stop circuit, restore +24 V, perform fault reset after the safety circuit is closed.
Drive Controller Rated Current (A) Supply Voltage (V AC) Command Interface Bleeder Cooling Mode
DKR02.1-W200N-BE32-01-FW  200 3 × 400 – 480 SERCOS Not Equipped Built-in Blower
DKR02.1-W200N-BE12-01-FW 200 (rated); 141 A peak 3 × 400 – 480 N/A stated Not Equipped Built-in Blower
DKR02.1-W200N-BA05-01-FW 200 — (400 – 480 series) Analog Not Equipped Built-in Blower
DKR02.1-W200N-BE56-01-FW 200 SERCOS Not Equipped Built-in Blower
DKR02.1-W200N-BE37-01-FW 200 3 × 400 – 480 SERCOS Not Equipped Built-in Blower
DKR02.1-W200N-BA08-01-FW 200 Analog Not Equipped Built-in Blower
Error Code Meaning
F207 Switching to an un-initialized operating mode
F218 Amplifier heatsink over-temperature shutdown
F219 Motor over-temperature shutdown (thermal sensor trip)
F220 Bleeder (brake-resistor) overload – excess regenerated energy
F226 DC-bus undervoltage detected in power section
F228 Excessive deviation / following-error too large
F229 Encoder 1 failure – quadrant error (motor-feedback plausibility)
F230 Maximum signal frequency of encoder 1 exceeded
F234 Emergency-Stop input lost +24 V (E-Stop activated)
F236 Excessive position-feedback difference between encoders 1 & 2

Frequently Asked Questions about DKR02.1-W200N-BE32-01-FW:

Q: What interfaces does the DKR02.1 drive controller support for diagnostics and connection?

A: The DKR02.1 is equipped with an RS-232 serial interface, allowing it to connect to VT-terminals or PCs. This enables easy diagnosis of errors or faults via an H1 status display, enhancing troubleshooting efficiency.

Q: What is the power supply requirement for the DKR02.1 drive controller?

A: The drive controller requires a 3-phase power source, with a rated current of 200 A. It directly connects to the electrical supply, ensuring consistent performance in demanding industrial environments.

Q: What are the voltage and frequency specifications for the DKR02.1's drive operation?

A: The DKR02.1 operates with a supply voltage of AC 3 × 400 – 480 V and features a 4/8 kHz drive. It functions effectively at a power voltage range of 0 – 380 V and a system frequency of 800/1600 Hz, catering to a wide range of industrial applications.

Q: How many plug-in slots does the DKR02.1 basic unit have, and what are their specific functions?

A: The basic unit of the DKR02.1 drive controller has 5 plug-in slots. Slot U1 is equipped with a SERCOS interface, while the controller also supports digital servo and resolver feedback for precise control in various applications.

Q: What is the role of the firmware module in the DKR02.1 drive controller?

A: The operating software of the DKR02.1 is housed in the firmware module ESM 02.3. This module can be mounted into the U5 slot of the basic unit, facilitating easy updates and maintenance of the controller's software.


Internal Product Review

  • ‘‘The DKR02.1 drive controller's integration of an RS-232 interface and a 3-phase power supply, along with its versatile frequency range, makes it a robust and reliable choice for complex industrial applications.’’
