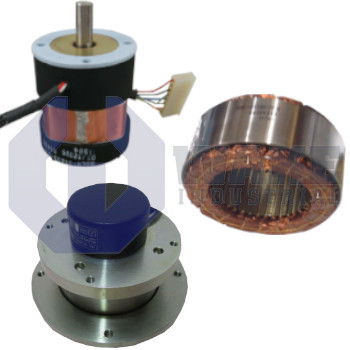

The RBE Rotary Motors series is a family of 230 VAC rotary servo motors offered in multiple frame sizes and torque classes, with listed models ranging from compact units up to larger motors.
Across the series, continuous stall torque spans from 0.249 N·m to 39.2 N·m, while peak stall torque reaches as high as 197 N·m, showing that the line covers both light-duty and substantially higher-torque rotary applications. Rated speeds in the documented models range from 1000 to 6000 RPM, with rated power values extending from 112 watts to 2700 watts depending on the motor size and winding. The series also shows variation in motor diameter, length, bore diameter, rotor inertia, and pole count, with documented designs using 6, 8, or 12 poles. In the provided data, RBE motors are shown as compatible with SERVOSTAR S, CD, and SC series drives, and the listed configurations do not include connector or shaft-seal options.
