The AKM22E-ENBNR-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 4.82 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .54 kW.

AKM22E-ENBNR-01

  • {{ 'Rated ' + avg.toFixed(1) + ' (' + ratingCount + ' total ratings)' }}
  • {{ message }}
The AKM22E-ENBNR-01 Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 4.82 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .54 kW.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Exchange
Call to find out about our exchange credit for your defective unit.
Sell Us Your Surplus
Have a AKM22E-ENBNR-01 to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

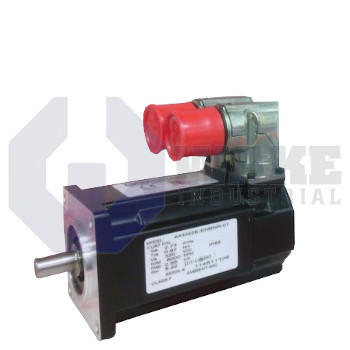

The part number AKM22E-ENBNR-01 belongs to the AKM series of brushless servo motors by Kollmorgen. The company is known for providing high-efficiency servomotors and other motion control solutions to the PLC and robotics industries. The AKM series features low-voltage DC servomotors specifically meant for positioning tasks in machine tools, industrial robots, and transfer lines. Featuring rare-earth magnets in the rotor, the AKM series models are suited for highly dynamic operations.

The AKM22E-ENBNR-01 brushless servo by Kollmorgen exhibits three-phase winding which should be driven by SERVOSTAR certified servo-amplifiers for the best results. The winding material adheres to NEMA insulation class F, which indicates that the winding can withstand temperature up to 155 degree Celsius. The AKM22E-ENBNR-01 motor is available in four different variations based on input voltages. The lowest, 115V version has a rated speed of 3500 RPM, rated torque of 0.81 Nm and a rated power of 0.30 kW. The peak torque of the motor is 2.76 Nm while its peak current is 10.9 amperes. Although, the motor doesn’t feature a holding brake there is an option to install 1.42 Nm brake. The AKM22E-ENBNR-01 DC synchronous motor maintains an ambient temperature between 5 and 40 degree Celsius, and it can be installed at high altitudes below 1000 amsl.

The 1.1 kg servo motor has a rotor length of 2 and a flange size of 58 mm. It features a smooth shaft with sealing, a connector and a resolver with a 12-point built-in plug. The AKM22E-ENBNR-01 brushless motor has features black matt enamel that can resist against most liquids except nitro-thinners and trichloroethylene. The motor conforms to EC directives in terms of vibration, low voltage, design, rotating machinery, and coaxiality.

  • AKM-22E-ENBNR-01
  • AKM22E-ENBNR-O1

AKM22E-ENBNR-01 Technical Specifications

Frame Size: AKM2
Frame Size:
Max BUS (VDC): 640
Max Rated N: 8000
Max Rated Power at Max BUS: .54 kW
Max Stall Tc: 1.4 Nm
Max Tp: 4.82 Nm
Stack Length: 2
