MDD071C-N-060-N2S-095PB2
MPN: R911274032
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships 3-5 Days

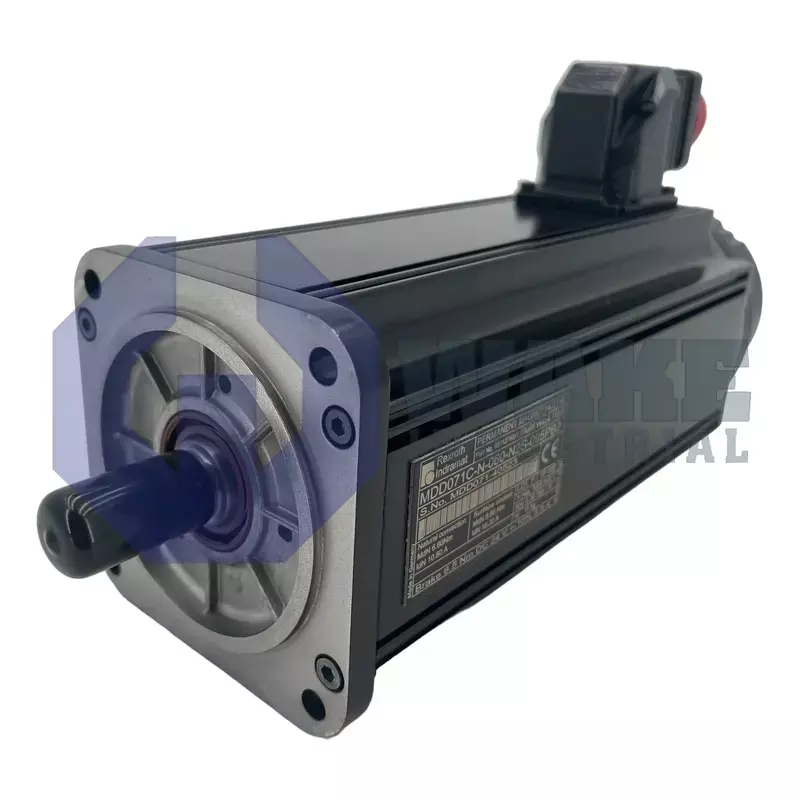

The AC servo motor MDD071C-N-060-N2S-095PB2 from Bosch Rexroth features a thermal time constant of 45 minutes. It is capable of peak torque up to 20.6 Nm and weighs 11 kg.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The model MDD071C-N-060-N2S-095PB2 AC servo motor is produced by Bosch Rexroth. It is designed for precise motion control in various industrial automation applications. The model is known for its durability and high performance. This servo motor is commonly used in robotics, CNC machinery and packaging equipment where accurate positioning and speed control are essential.
The MDD071C-N-060-N2S-095PB2 AC servo motor operates at a nominal speed of 6000 RPM. It provides a continuous torque of 6.6 Nm at standstill with a peak theoretical maximum torque reaching 20.6 Nm. It has a rated current of 22.1 A with a maximum current capacity of 99.3 A. The motor features a moment of inertia of 11.9 x 10^-4 kgm^2 that allows smooth acceleration and deceleration. The windings have a resistance of 0.22 Ohms with an inductance value of 1.4 mH. The model's thermal time constant is 45 minutes indicating effective heat management over prolonged use. The motor's protection class is rated at IP65 that ensures complete protection from dust and water. It is designed to operate at ambient temperatures ranging from 0 to 45 degrees C.
The MDD series servo motor is equipped with an electrically actuated blocking brake. The brake provides a holding torque of 6.5 Nm with a release delay of 60 ms and a clamping delay of 20 ms. The brake operates on a 24 V DC supply and has a nominal current of 0.7 A. The holding brake has a mass of approximately 0.5 kg while the overall weight of the motor is 11 kg. The motor can be installed at elevations up to 1000 meters above sea level and is coated with a black prime coat for durability.
Frequently Asked Questions about MDD071C-N-060-N2S-095PB2:
Q: What is the maximum operating speed of the MDD071C-N-060-N2S-095PB2 AC servo motor?
A: The MDD071C-N-060-N2S-095PB2 operates at a nominal speed of 6000 RPM. It ensures high precision in industrial automation applications requiring accurate positioning and speed control.
Q: What kind of protection does the MDD071C-N-060-N2S-095PB2 AC servo motor offer?
A: The motor is rated IP65, providing complete protection from dust and water. It ensures reliable operation in harsh industrial environments, contributing to its durability and high performance.
Q: What are the electrical connectivity specifications of the MDD071C-N-060-N2S-095PB2 AC servo motor?
A: The servo motor operates with a rated current of 22.1 A and a maximum current capacity of 99.3 A. The motor windings have a resistance of 0.22 Ohms and an inductance of 1.4 mH.
Q: Can the MDD071C-N-060-N2S-095PB2 AC servo motor handle high altitude installations?
A: Yes, it can be installed at elevations up to 1000 meters above sea level. The motor is designed to maintain performance stability in such conditions, enhancing its versatility for various industries.
Q: How does the braking system work in the MDD071C-N-060-N2S-095PB2 AC servo motor?
A: The servo motor features an electrically actuated blocking brake with a holding torque of 6.5 Nm. It operates with a 24 V DC supply and has a release delay of 60 ms for precision stopping.
